Veracity POINTSOURCE - Manual

OVERVIEW
Veracity’s POINTSOURCE is a portable, rechargeable battery
powered Power over Ethernet (POE) injector. It is designed
to be compact and easy to handle, yet able to deliver enough
power to support a full day of IP camera installation.
POINTSOURCE can be used with all POE-powered equipment,
such as IP cameras and wireless access points, enabling
applications such as:
• on-site configuration
• site surveys and pre-installation trials
• customer demonstrations
• mobile and temporary installations
It complies with the universal 802.3af POE standard, and can
deliver up to 15.4 watts of POE power, while simultaneously
powering other 12 Volt accessories if required. Network
crossover between ports is integrated, to allow direct
connection of a laptop PC, as shown in the example below.

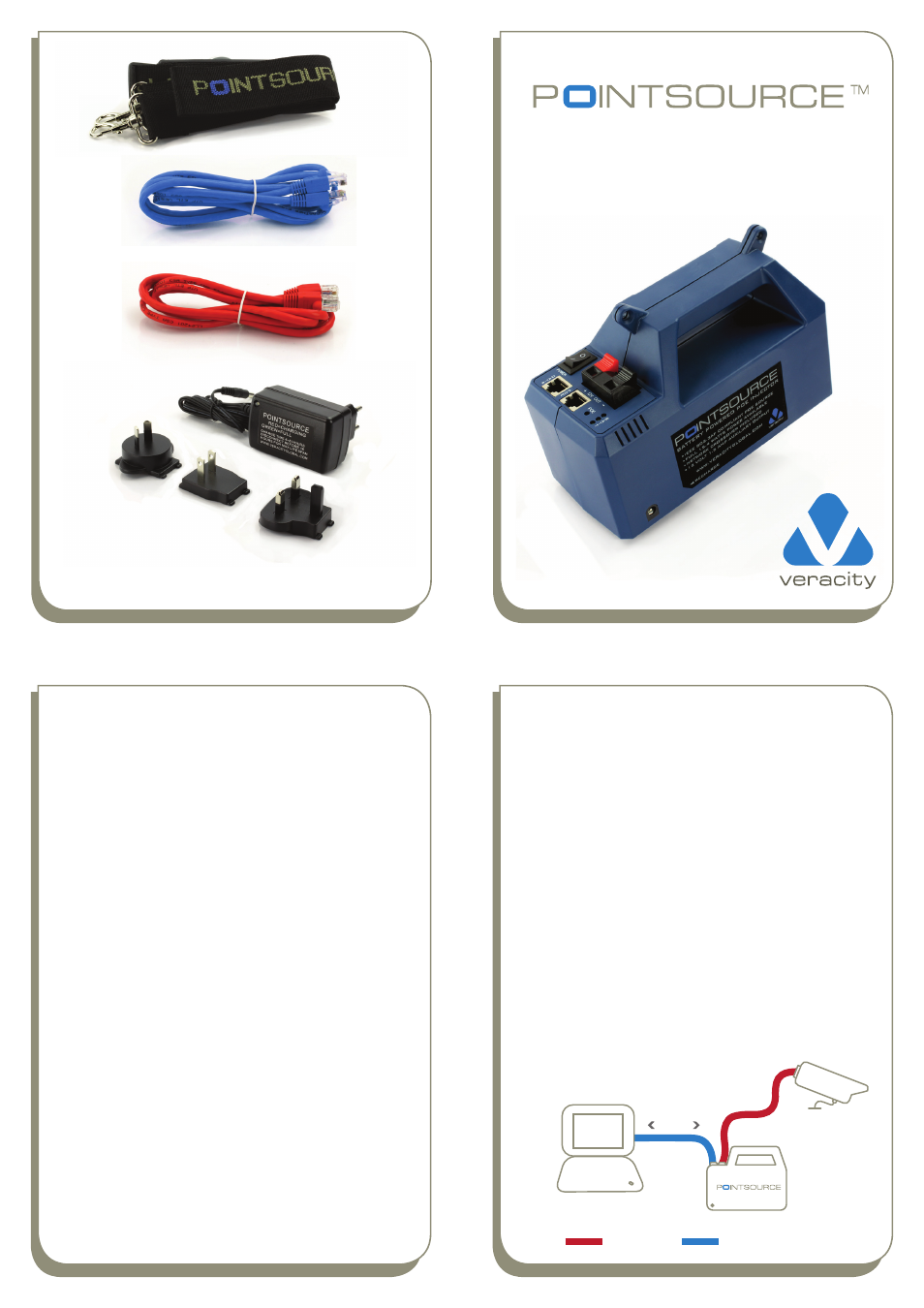

PACKAGE CONTENTS
1 x POINTSOURCE unit
1 x Shoulder strap
1 x Universal charger (UK, US, EU plugs)
1 x 1.5m Red network patch cable
1 x 1.0m Blue network patch cable
1 x Quick Start Guide (this leaflet)
ImPORTANT SAfETy NOTES
• Only the supplied charger should be connected to
POINTSOURCE.
• Do not charge POINTSOURCE in a fully sealed enclosure.
• Do not attempt to service the unit or replace the battery.
Other brands of lead-acid battery are not compatible with
POINTSOURCE.
• Take care when connecting accessories to the 12 volt
terminals. POINTSOURCE can deliver high currents before
tripping its internal fuse.
mAINTAINING bATTERy PERfORmANCE
For optimal battery performance and longevity, POINTSOURCE
should be fully charged:
• before first use
• after long periods of storage
• before being stored for long periods
• every six months during storage
Always switch off POINTSOURCE when it is not in use, even
if the unit is fully discharged. Disconnection from the charger
within 16 hours is recommended.
P O R T A B L E B A T T E R Y P O W E R E D P O E i n j E c T O R
Q U I C K S TA R T G U I D E
(
Please Read Carefully
)
VAD-PS
IP CAMERA
DATA
WITH
POE
LAPTOP
DATA
ETHERNET WITH POE ETHERNET D ATA ONLY
