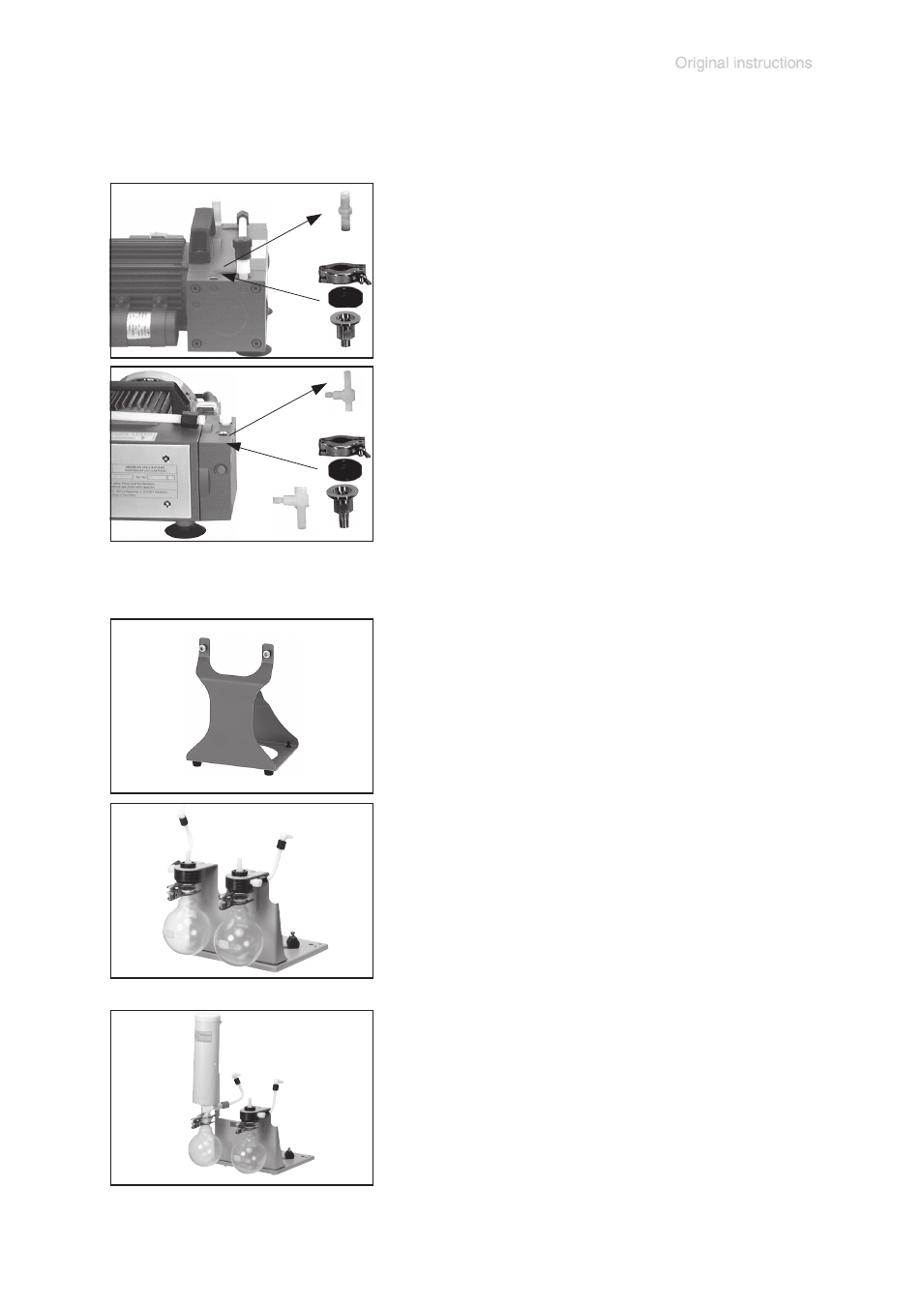

Accessories - installation
The chemistry diaphragm pumps are equipped with a hose nozzle which can easily be replaced by a small
flange.
ME 2C / MZ 2C
Small flange NW 16 ................................................... 696820
Clamping ring NW 10/16 (aluminium) ....................... 660000
Centring ring NW 10/16 (FPM) ................................. 660195
ME 4C
Small flange NW 16 ................................................... 639883
(For installation an additional part is required:
Elbow fitting with extension .................................... 639851)
Note: Screw in small flange into elbow fitting max. 3 1/2 revolu-
tions.
Clamping ring NW 10/16 (aluminium) ....................... 660000
Centring ring NW 10/16 (FPM) ................................. 660195
Retrofit kit catchpots 2 AK for MZ 2C ....................... 699927
(Baseplate with inlet and outlet catchpots.)
The catchpot at the inlet prevents condensates from entering
the pump.
☞ Lifetime of diaphragms and valves is enhanced.
☞ Improves vacuum in case of liquids entering the pump.
The catchpot at the outlet protects pump and environment.
☞ No draining of condensate into the pump.
☞ Recovery of condensates.
The chemistry diaphragm pump MZ 2C is part of the modular Chemistry-Vacuum-System. All components
can be ordered and assembled step by step to units allowing next to 100% solvent recovery and preventing
solvent vapours from being emitted.
Pump support MZ 2C (kit) ......................................... 699925
(Installation of the diaphragm pump in vertical position.)
☞ Space saving.
☞ Avoiding accumulation of condensate in the pump.
The pump support is necessary also for assembling the re-
trofit kits 69 99 27 and 69 99 26.
Retrofit kit catchpot and exhaust waste vapour
condenser AK + EK for MZ 2C .................................. 699926
(Baseplate with catchpot at inlet and exhaust waste vapour con-
denser.)
Exhaust waste vapour condenser enables the easy and effi-
cient condensation of vapours under atmospheric pressure.
☞ Next to 100% solvent recovery.
