16
drop the nose of the aircraft to maintain the minimum setting.
Maximum Airspeed
Any time the autopilot is engaged and the airspeed reaches the
maximum airspeed setting the autopilot will begin to flash MAX AS and
pull the nose of the aircraft up to maintain the maximum setting.
Initializing the Autopilot
GPS Acquisition
If there is no GPS signal the top left portion of the display will read
NO GPS . If a GPS signal is present but satellites have not yet been
acquired, the upper left portion of the display will read NO FIX with a
flashing • below. When the GPS obtains a fix the period will be replaced
by an asterisk and the display will switch to show GPS OK with a
flashing * below . This means that when a certain velocity is attained TRK
will appear followed by the current track. This happens at approximately
10 knots ground speed as detected by GPS and will even occur at rapid

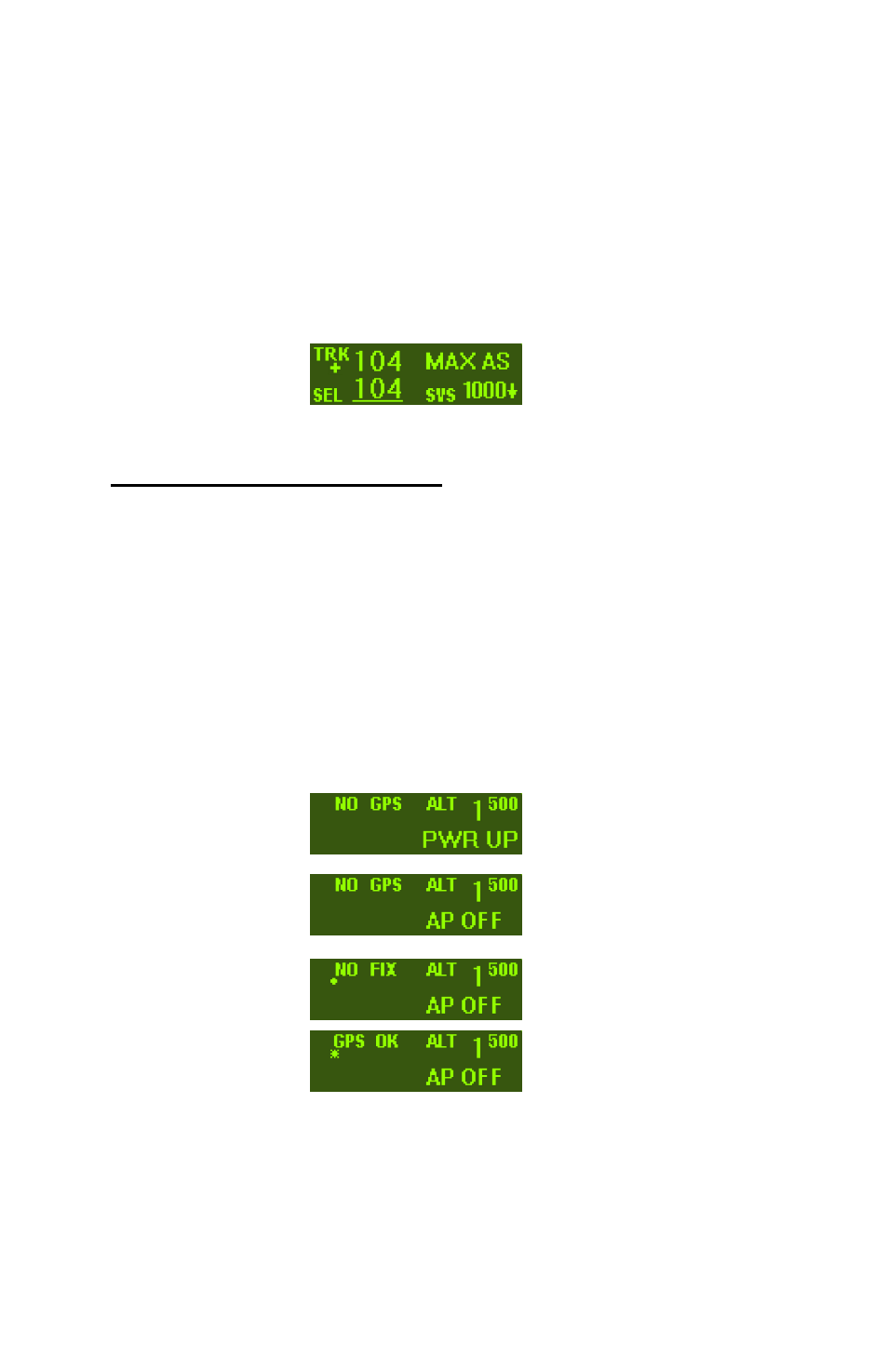

taxi speeds. The four possible screens are shown below.
