16 • SLASH VXL

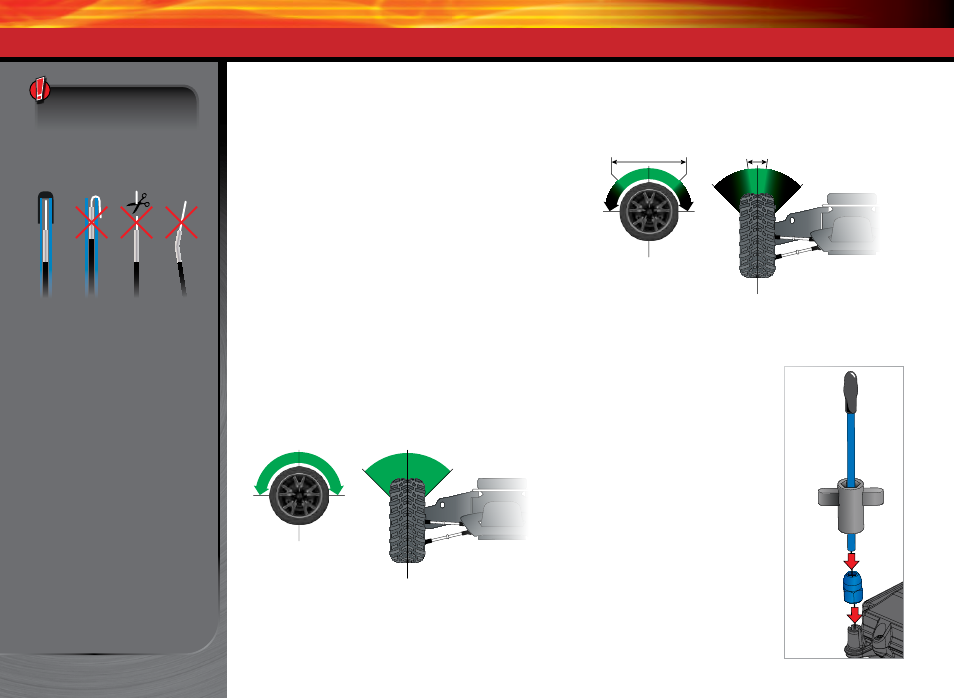

To prevent loss of radio
range do not kink or cut the
black wire, do not bend or
cut the metal tip, and do not
bend or cut the white wire at
the end of the metal tip.
Correct No No No
TRAXXAS TQ i RADIO & VELINEON POWER SYSTEM
3. When the transmitter and receiver’s LEDs turn solid green, the
system is bound and ready for use. Confirm that the steering and
throttle operate properly before driving your model.
Steering Sensitivity (Exponential)
The Multi-Function knob on the TQi transmitter has been
programmed to control Steering Sensitivity (also known as
exponential). The standard setting for Steering Sensitivity is
“normal (zero exponential),” with the dial full left in its range of
travel. This setting provides linear servo response: the steering
servo’s movement will correspond exactly with the input from
the transmitter’s steering wheel. Turning the knob clockwise from
center will result in “negative exponential” and decrease steering
sensitivity by making the servo less responsive near neutral, with
increasing sensitivity as the servo nears the limits of its travel range.
The farther you turn the knob, the more pronounced the change
in steering servo movement will be. The term “exponential” comes
from this effect; the servo’s travel changes exponentially relative
to the input from the steering wheel. The exponential effect is
indicated as a percentage—the greater the percentage, the greater
the effect. The illustrations below show how this works.
Normal Steering Sensitivity (0% exponential)
In this illustration, the steering servo’s travel (and with it, the steering
motion of the model’s front wheels) corresponds precisely with the
steering wheel. The ranges are exaggerated for illustrative purposes.
Decreased Steering Sensitivity (Negative Exponential)
By turning the Multi-Function knob clockwise, the steering sensitivity
of the model will be decreased. Note that a relatively large amount
of steering wheel travel results in a smaller amount of servo travel.
The farther you turn the knob, the more pronounced the effect
becomes. Decreased steering sensitivity may be helpful when driving
on low-traction surfaces, when driving at high speed, or on tracks
that favor sweeping turns where gentle steering inputs are required.
The ranges are exaggerated for illustrative purposes.
Experiment! Try varying degrees of exponential. It’s easy to go back
to “zero” if you don’t like the effect. There’s no wrong way to adjust
exponential. Any setting that makes you more comfortable with
your model’s handling is the “right setting.”
SETTING UP THE ANTENNA
The receiver antenna has been set up and
installed from the factory.
When reinstalling the antenna, first slide
the antenna wire into the bottom of the
antenna tube until the white tip of the
antenna is at the top of the tube under
the black cap. Insert the base of the tube
into the antenna post. Take care not to
crimp the antenna wire. Slide the crimp
nut over the antenna tube and screw it
onto the antenna post. Use the supplied
tool to tighten the crimp nut on the post
just until the antenna tube is securely
in place. Do not over tighten or crush
the antenna wire against the chassis.
Do
not bend or kink the antenna wire! See
the sidebar for more information. Do not
shorten the antenna tube. The minimum
height is 62mm.
Turning Range
at Transmitter
Effective Turning
Range on Model
Antenna
Tip
Antenna
Tube
Antenna
Wrench
Antenna
Crimp Nut
Antenna
Post
