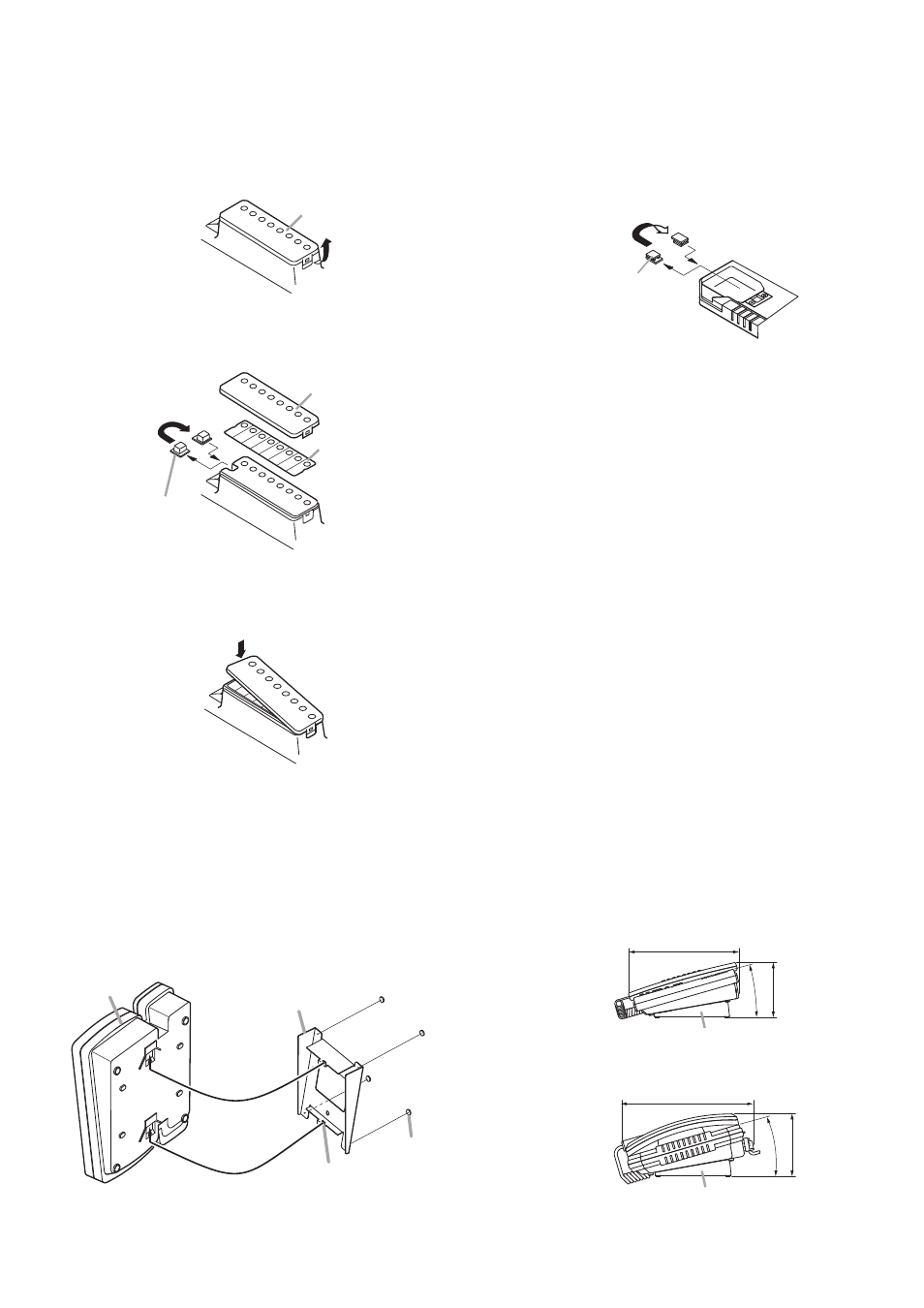

2. WALL MOUNTING
When mounting the station on a wall, the orientation of the
handset hook needs to be changed.
2.1. N-8000MS or N-8010MS Station
Step 1. Raise the number directory cover forward tab.
Number directory cover
Step 2. Remove both the number directory cover and the
directory. Remove the handset hook and reverse its
orientation, then replace.
Number directory cover
Number directory
Handset hook
Reverse the orientation.
Step 3. After replacing the directory on the station, hook the
directory cover's forward tab and push on the upper
part of the directory cover.
2.2. N-8020MS Station
Remove the handset hook and reverse its orientation.
Handset hook
Reverse the orientation.
3. DESK-TOP INSTALLATION
In desktop installations, the front operation panel can be inclined 16˚ from the desk surface for easier operation by attaching the
YC-280 Wall Mounting Bracket to its bottom surface.
3.1. Mounting Example 3.2. Installation Completion Drawing
Hang the wall mounting bracket hook on the station's wall
bracket mounting slot to install.
Push up the Wall mounting bracket in the direction indicated
by the arrow.
YC-280 Wall
mounting bracket Station
Hook
Rubber foot
(supplied with the YC-280)
Note
The figure shows the N-8000MS.
205.2
16
°
101.8
[N-8000MS/8010MS]
[N-8020MS]
245
16
°
11
5
YC-280
YC-280
Unit: mm
