Toa ER-520W - Manual (Page 2)

1
2
3
4
5
6
7
8
Step 2. Insert eight AA batteries referring to the polarity diagram
on the inside of the battery cover.
Step 3. Press the battery cover down and slide it in the direction
of the arrow until it clicks to lock.
6. REPLACING THE BATTERIES
Step 1. Using the volume control, adjust the volume to an
appropriate level that does not generate feedback when
holding down the talk switch.
Howling is more likely to occur when using the
megaphone indoors or in other reverberant places.
Particularly when the batteries are new, it may be
impossible to adjust the volume to maximum without
causing howling. In such cases, set the volume to about
mid-level.
Step 2. Speak into the mouthpiece at a distance of about 1 cm.
Note
Speaking too far from the mouthpiece or in too soft
voice may result in insufficient volume.
7. HOW TO USE
Battery cover
Handle
Push
Open
Battery
AA batteries
Polarity diagram
Battery cover

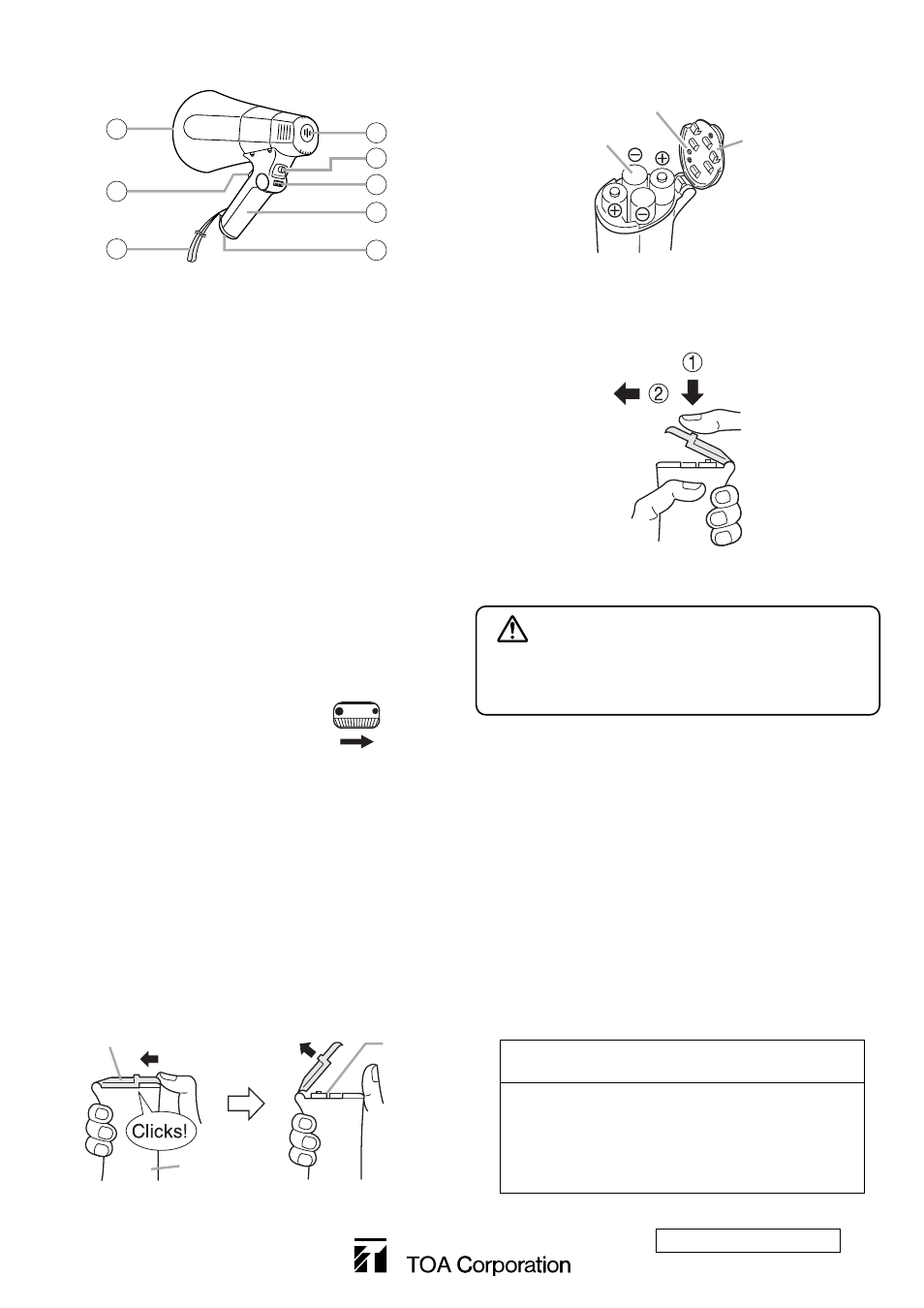

5. NOMENCLATURE AND FUNCTIONS
1. Speaker (outer horn)
2. Talk switch
Press to talk (power turns ON). Release to turn the power
OFF.
3. Strap
Use this strap to carry the unit.
4. Mouthpiece
Speak into the mouthpiece at a distance of about 1 cm.
Anti-bacteria treated, the mouthpiece helps make such close
contact during use hygienic and safe.
5. Signal tone switch (ER-520S/W only)
[ER-520S] A siren tone sounds when this switch is pressed,
and stops when pressed again.
[ER-520W] A whistle tone sounds while this switch is pressed,
and stops when released.
Note: Output volume is fixed, and cannot be adjusted with the
volume control.
6. Volume control
Rotate right to increase output volume.
7. Handle
The handle with anti-bacteria treatment improve hygiene and
safety during use.
8. Battery cover
The battery compartment is built inside. Use care when
opening and closing the battery cover.
Volume high
CAUTION
• Before pressing the talk switch, fully turn down the volume.
• Point the megaphone toward the ground when conducting
operational tests.
Step 1. Open the battery cover as shown below.
533-03-025-9B
URL: http://www.toa.jp/
Traceability Information for Europe
(EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg, Germany
