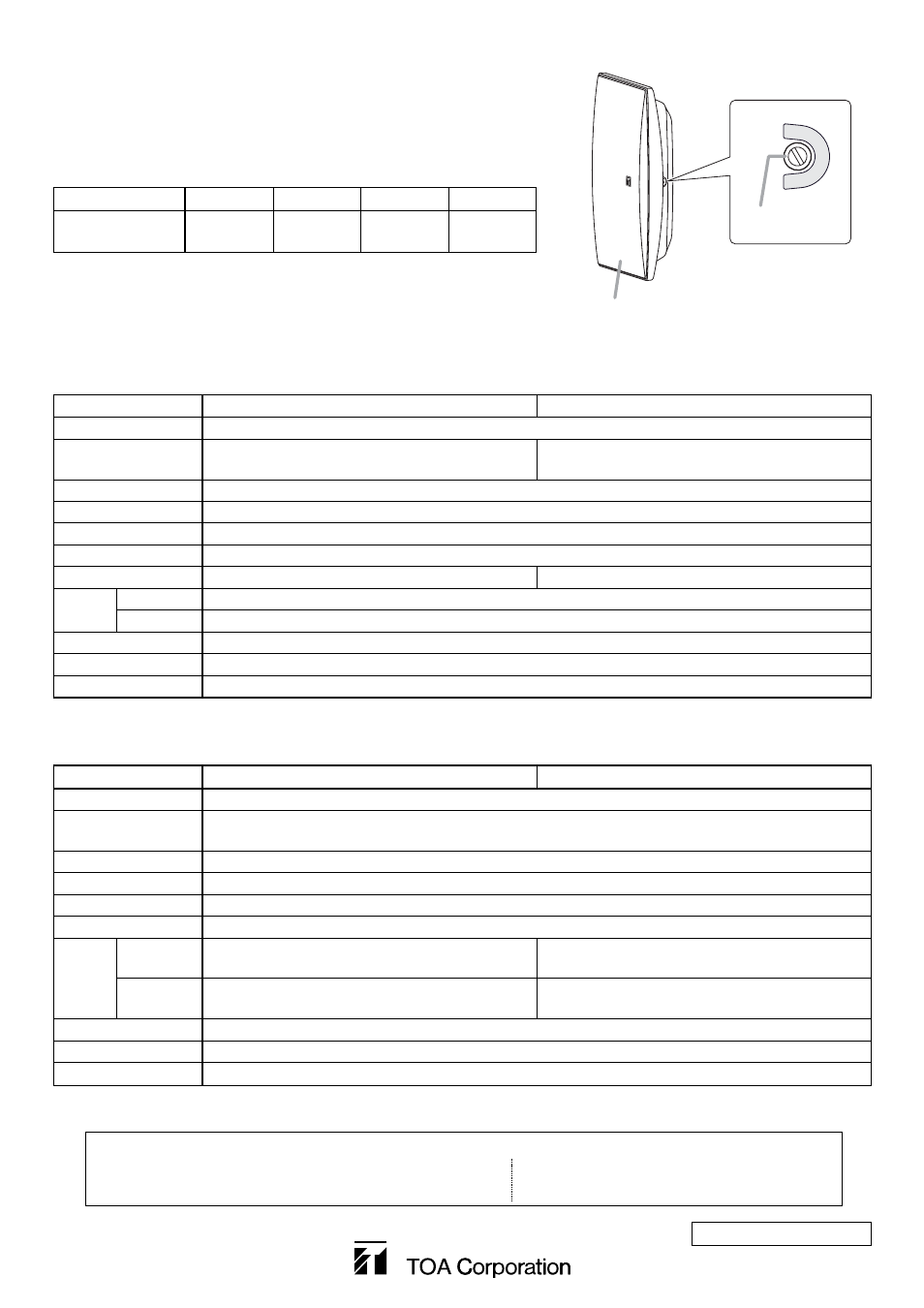

8. SPECIFICATIONS
Note: The design and specifications are subject to change without notice for improvement.
Note: The design and specifications are subject to change without notice for improvement.
BS-634 BS-634T
6 W
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) 100 V line: 1.7 kΩ (6 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) 70 V line: 1.7 kΩ (3 W)
90 dB (1 W, 1 m)
120 – 18,000 Hz
12 cm (5") cone-type
M4 screw terminal, distance between barriers: 11 mm (0.43")
– OFF, 1 (–12 dB), 2 (–6 dB), 3 (0 dB)
HIPS resin (fire resistant grade UL94 V-0 or its equivalent), off white (RAL 9010 or equivalent color)
Surface-treated steel plate, off white (RAL 9010 or equivalent color), paint
210 (w) x 330 (h) x 80 (d) mm (8.27" x 12.99" x 3.15")
1.3 kg (2.87 lb)
Speaker receptacle ............... 1, Tapping screw (4 x 35) ............... 2
Model No.
Rated Input
Rated Impedance
Sensitivity
Frequency Response
Speaker Component
Input Connector
Attenuation
Finish
Enclosure
Net
Dimensions
Weight
Accessories
BS-1034 BS-1034S
10 W
100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
90 dB (1 W, 1 m)
120 – 20,000 Hz
Low frequency: 12 cm (5") cone-type, High frequency: Balanced dome-type
M4 screw terminal, distance between barriers: 11 mm (0.43")
HIPS resin (fire resistant grade UL94 V-0 or its HIPS resin (fire resistant grade UL94 V-0 or its
equivalent), off white (RAL 9010 or equivalent color) equivalent), silver
Steel plate, off white (RAL 9010 or equivalent
Steel plate, silver, paint
color), paint
210 (w) x 330 (h) x 80 (d) mm (8.27" x 12.99" x 3.15")
1.4 kg (3.09 lb)
Speaker receptacle ............... 1, Tapping screw (4 x 35) ............... 2
Model No.
Rated Input
Rated Impedance
Sensitivity
Frequency Response
Speaker Component
Input Connector
Finish
Enclosure
Net
Dimensions
Weight
Accessories
533-06-159-8B
URL: http://www.toa.jp/
Switch position 3 2 1 OFF
Sound volume High Middle Low Off
(0 dB) (–6 dB) (–12 dB)
7. VOLUME ADJUSTMENT (BS-634T ONLY)
Adjust the sound volume by rotating the rotary switch* on the speaker's
side panel using a standard screwdriver.
* It is positioned rightward as viewed from the front for vertical speaker
installation, or downward for horizontal speaker installation.
3 2
1
OFFO
F
F
Speaker
Rotary switch
8.1. BS-634 and BS-634T
8.2. BS-1034 and BS-1034S
Note: Switch position is factory-preset to "3."
