Toa F-122C - Manual (Page 7)

7

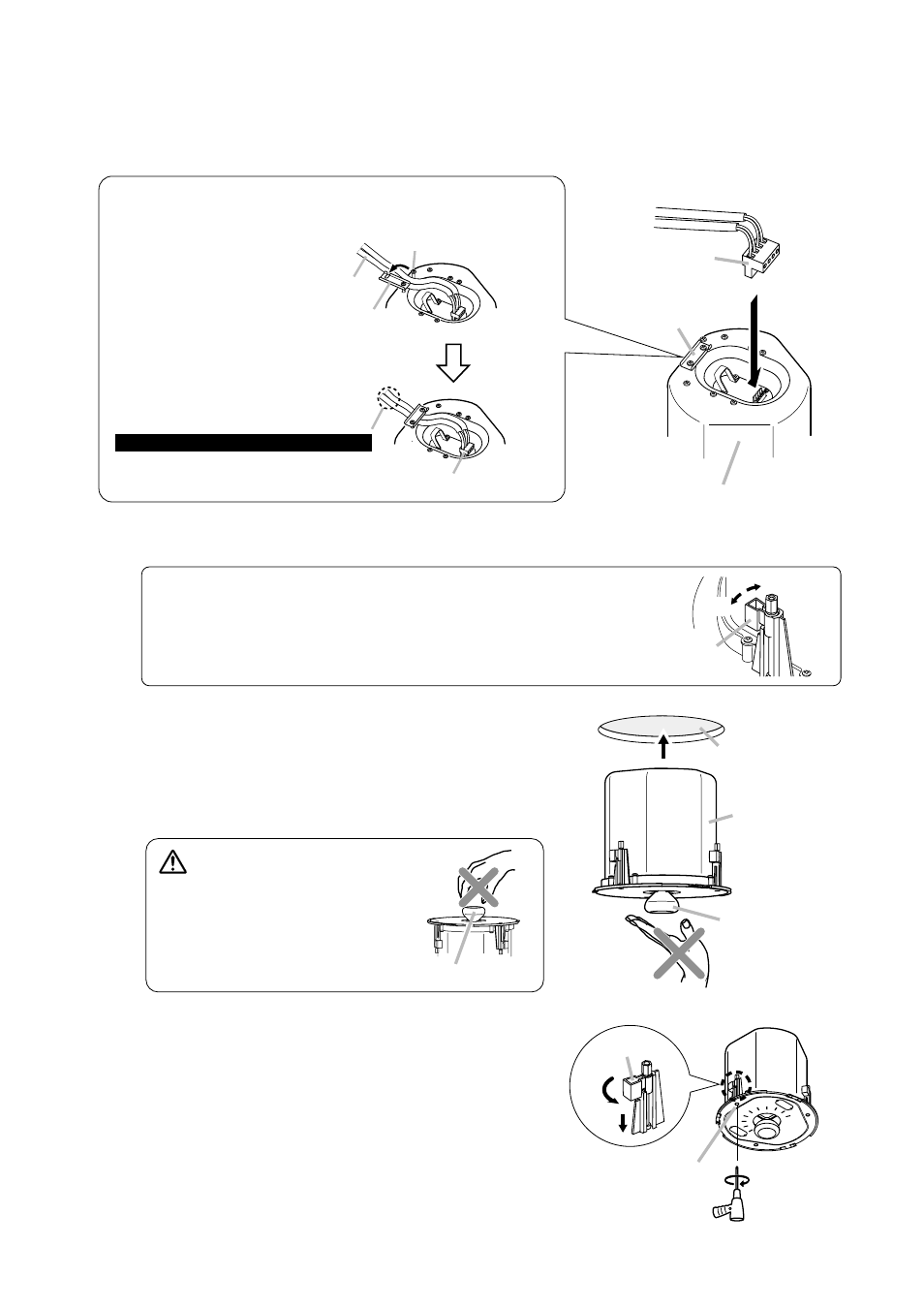

Step 5. Make speaker cable connection.
5-1. Plug the wired detachable input connector into the speaker's wiring socket.
5-2. Fix the speaker cable with the cord clamp.
Speaker unit
Detachable input
connector
Cord clamp
Cord clamp
Speaker cable
Clamp fixing screw (2 pieces)
Loosen the cord clamp fixing screws and open the cord clamp.
Then, pass the speaker cable between both screws.
Tighten the clamp fixing screws to
fix the speaker cable with the cord clamp.
Confirm the connector will not pull out.
Pull on the cable here to confirm that
speaker cable is securely fixed.
Detachable input connector
5
-1
5
-2
Step 6. Mount the speaker.
Caution
Before mounting, check to be sure that the speaker's
3 mounting tabs are turned inside the unit as shown in the figure.
If turned outward, the speaker cannot be inserted through the
mounting hole.
In
Out
Mounting
tab
6-1. Flush ceiling mounting
(in the cases of Steps 3-1, 3-2, 3-3 and 3-4)
Insert the speaker through the mounting hole till it contacts
the ceiling panel. While doing so, avoid directly touching
the speaker's diffuser section.
WARNING
Never grab the diffuser section as a
hand hold. The speaker could fall
due to damage, resulting in possible
personal injury.
Rotate and tighten the mounting tab axis
screws (3 places) on the unit clockwise to their
full stop in order to grip the ceiling panel with
the mounting tabs.
Diffuser section
Diffuser section
Speaker unit
Mounting hole
Mounting tab axis screw
Mounting tab
Use an electric screwdriver to tighten.
(Tightening torque: 6 – 10 kgf·cm)
