Dimensional drawing – Chief Manufacturing Wall Mount PLP Series User Manual
Page 3
Installation Instructions
PLP Series
3

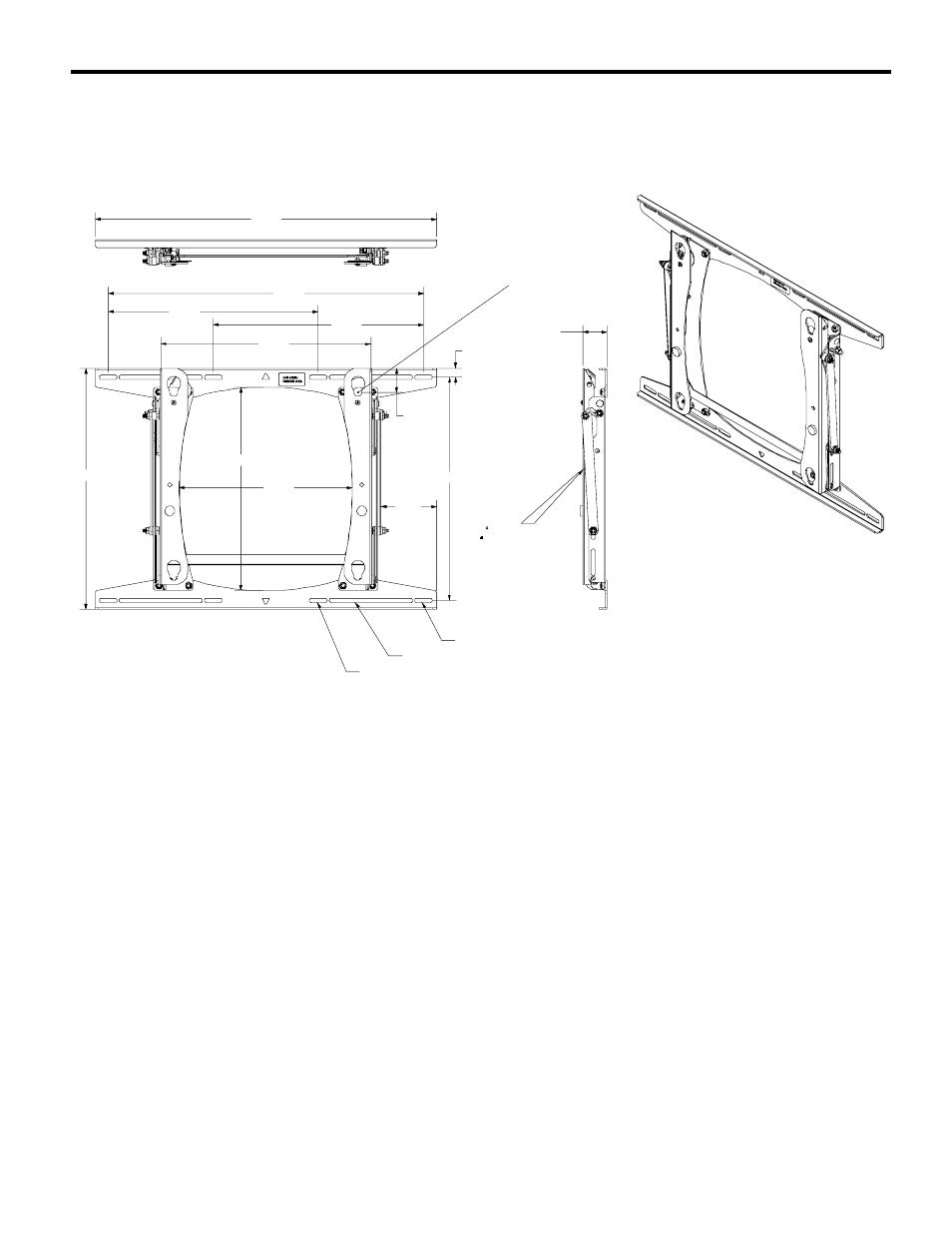

DIMENSIONAL
DRAWING
17.00
.69
1.87
4.24
15.51
18.38
13.19
16.00
16.00
16.00
24.00
5/16" x 1" SLOT
5/16" x 6" SLOT
5/16" x 1" SLOT
TOP MOUNTING BUTTON ON
PSB-XXXX DRAWING GOES HERE
26.00
1.83
FACE TILTS
15 DOWN
7 UP (FOR SERVICE)
NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN 1/2" AND 2" IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT.
SEE PSB-XXXX DRAWING ALSO.
