TeeJet FieldPilot Install Case SPX 4260b - Manual (Page 7)

www.teejet.com
6
FieldPilot ®

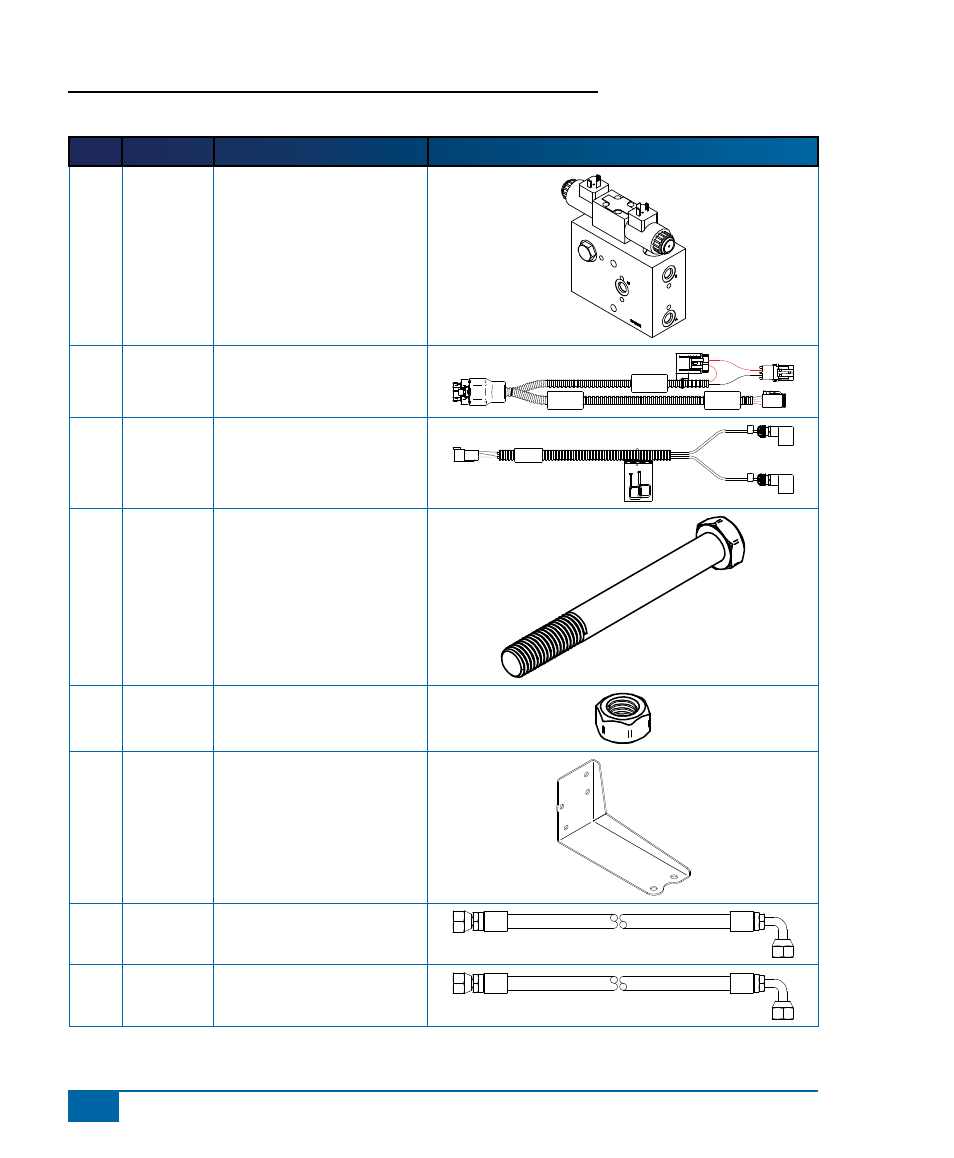

Item Part # Description Illustration
C 35-02180 Valve, FLDPLT, PWM, CC,
2.1GPM
D 45-07703 Harness, SCM
SCM Power I/O
45-07703
DC: xx/xx
Valve Output
Power
E 45-10103 Harness, Valve
A
B
45-10103
DC: xx/xx
F 60-04087 Bolt, Hex- 3/8-16 x 3-1/4”
SST
G 60-07027 Nut, NyLock 3/8-16, SST
H 65-05169 Bracket, Hyd. Block Mnt.
SPX 4260 (-2001)
I 68-01113 Hose, Hyd. - 3/8” x 22”,
#6FORF X #6FORF 90º
J 68-01114 Hose, Hyd. - 3/8” x 15”,
#6FORF X #6FORF 90º
