Team Durango DEX410 v4 - Manual (Page 40)

.40.
1:1
BAG
1:1
1:1
1:1
20mm
22mm
21mm
21mm
X1
X1
X2
X2
FRONT
REAR
STEERING
K
K3
330591
330591 330129

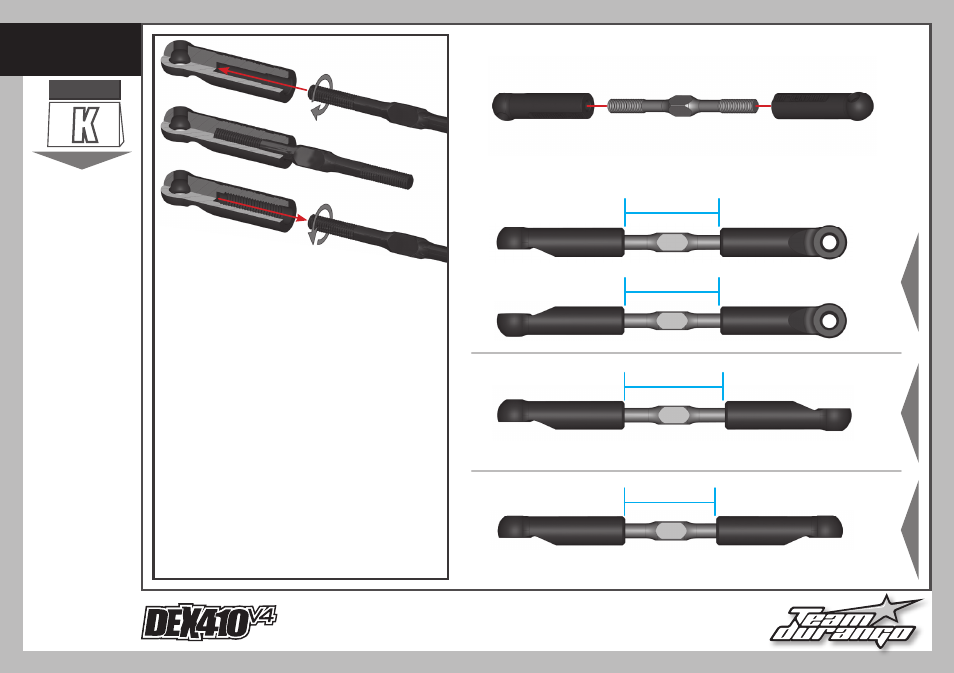

To achieve the optimum turnbuckle assembly,
follow this step-by-step guide and you will build
the perfect linkages. Prior to assembling your
turnbuckle linkages, apply a small amount of
silicone grease directly to the thread area of each
turnbuckle linkage.
Step 1: Thread the ball cup onto the turnbuckle.
Continue until all the turnbuckle linkage thread is
inside the ball cup shaft.
Step 2: Unthread the ball cup from the turnbuckle
completely. This will fully form the internal thread
pattern inside your ball cup.
Step 3: Thread the ball cup onto the turnbuckle
once again, and continue until you reach the
specified length for front, steering and rear linkages.
Step 4: Attach your assembled turnbuckle linkages
to your vehicle and make any final adjustments with
the supplied turnbuckle wrench.
