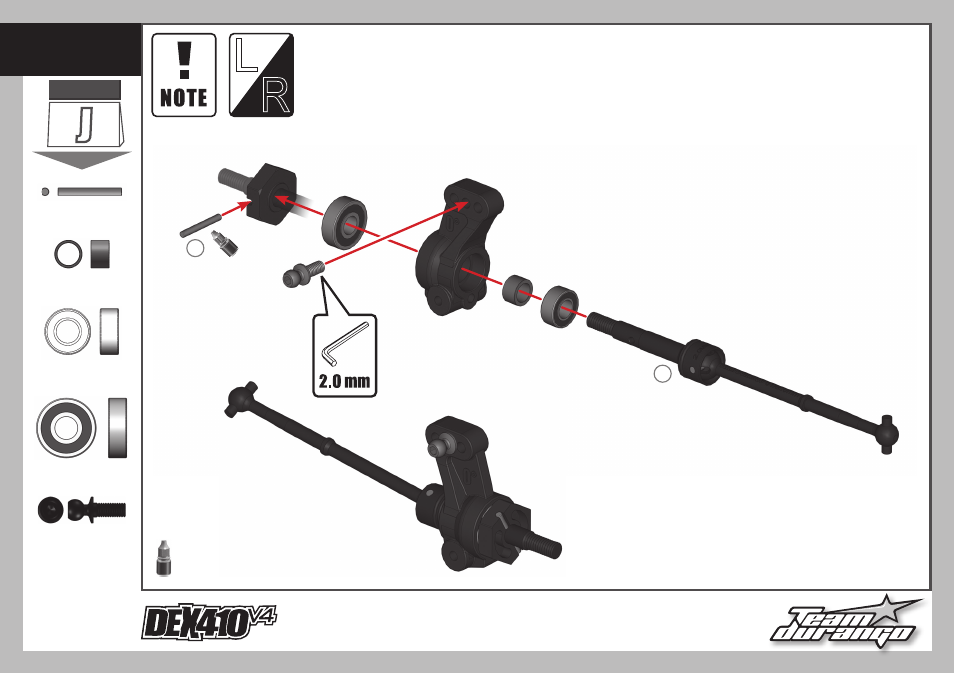

Team Durango DEX410 v4 User Manual

Page 37

background image

.37.

1:1

BAG

L

R

Thread Lock

390006

1

2

J

J2

PIN M1.7X14

310135x2

BB 5X10X4

601002x2

5X10X4

601002

5X13X4

601017

M1.7X14

310135

330312-2

330602

340071

REAR 61mm

SHIM 5X7X4

714001x2

5X7X4

714001

Right

Left

X

2

Ball Stud

7mm Long

330602x2

BB 5X13X4

601017x2
