Step 3, Step 8, Swingaway – SwingAway SWG200SBR14 User Manual
Page 6: Pro traveler
CORDS NOT
SHOWN FOR
CLARITY

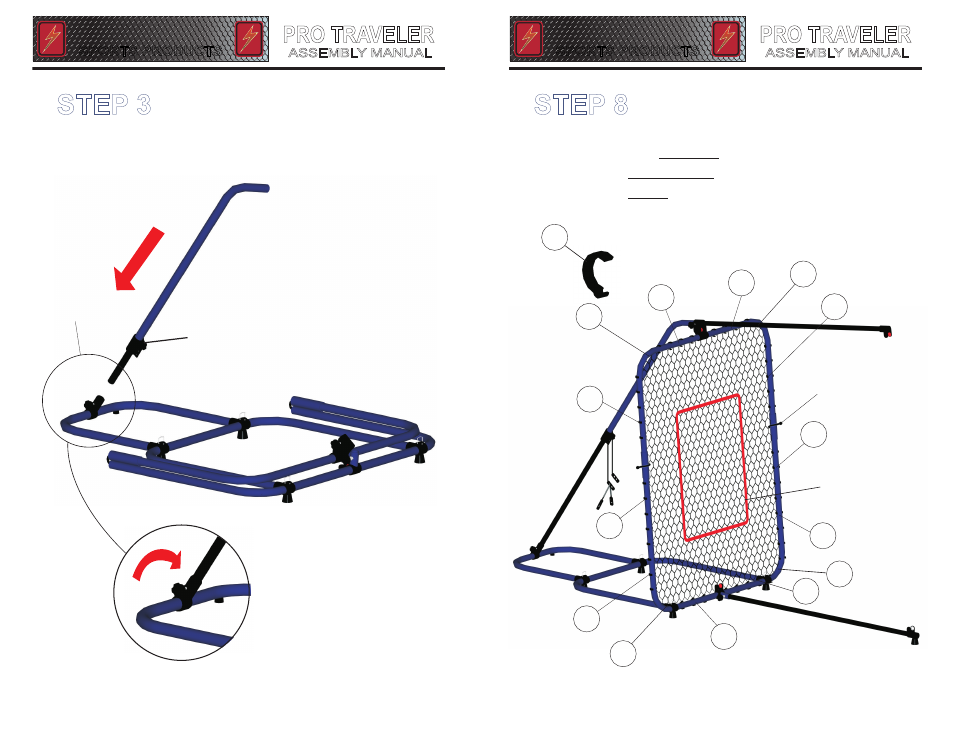

STEP 3
INSERT THE TELESCOPE
THE SMALL END, (BLACK END)
GOES INTO THE
BASE HOOP FITTING
BASE
HOOP
FITTING
TIGHTEN
KNOB
TELESCOPE
ASSEMBLY
SWINGAWAY
SWINGAWAY
SPORTS PRODUCTS
SPORTS PRODUCTS
PRO TRAVELER
ASSEMBLY MANUAL
