FlexWave412A/B Guitar Enclosure
3
16 OHMS
MONO
4 OHMS
MONO
OUT IN
RIGHT LEFT
8 OHMS
STEREO
OUT
4 OHM 16 OHM
4 OHM 16 OHM
16 OHMS
MONO
4 OHMS
MONO
OUT IN
RIGHT LEFT
8 OHMS
STEREO
OUT
16 OHMS
MONO
4 OHMS
MONO
OUT IN
RIGHT LEFT 8 OHMS
STEREO
LEFT OUT RIGHT OUT
Mono Amplifier
4 Ohm Mono Configuration:
16 Ohm Mono Configuration:
8 Ohm Stereo Configuration:
FW412A/B
Input plate
Mono Amplifier
FW412A/B
Input plate
Stereo Amplifier
FW412A/B
Input plate

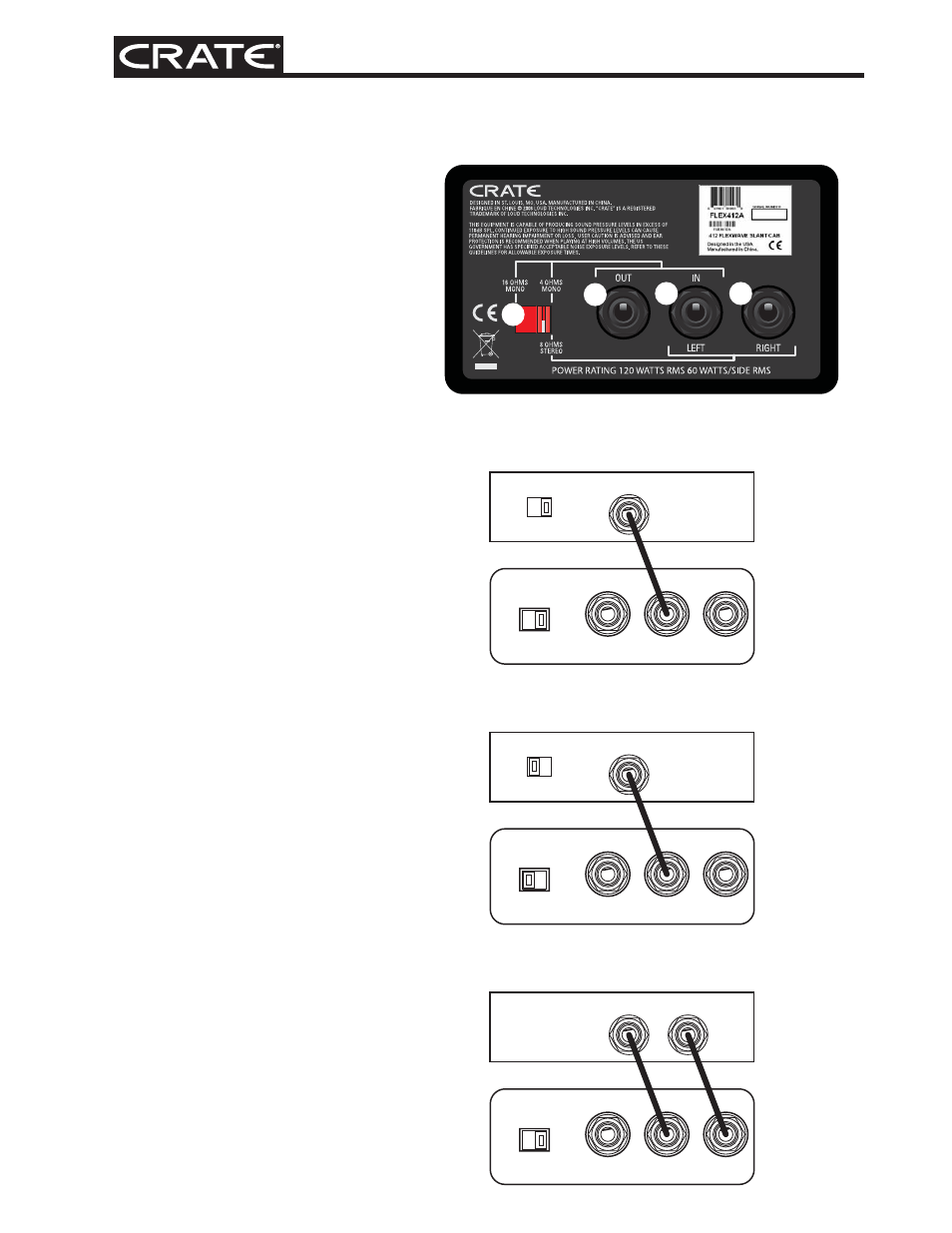

The Input/Output Plate:
1. Impedance Selector Switch: Use
this switch to select 16 ohm mono
operation or 8 ohm stereo/4 ohm
mono operation.
2. Out 1/4" Jack: When using the
cabinet in the mono operating mode,
use this jack to connect the cabinet
to another speaker enclosure of the
same impedance.
3. In/Left 1/4" Jack: When using
the cabinet in the mono operating
mode, use this jack as the cabinet’s
input jack. Connect the output of your
amplifier to this jack by means of the
speaker cable provided.
When using the cabinet in the stereo
operating mode, connect this jack to
the left channel output of your amplifier.
4. Right 1/4" Jack: When using the
cabinet in the stereo operating mode,
connect this jack to the right channel
output of your amplifier.
When using the cabinet in the mono
operating mode, this jack is not used.
Refer to the illustrations on the right
for additional information.
1
2 3 4
