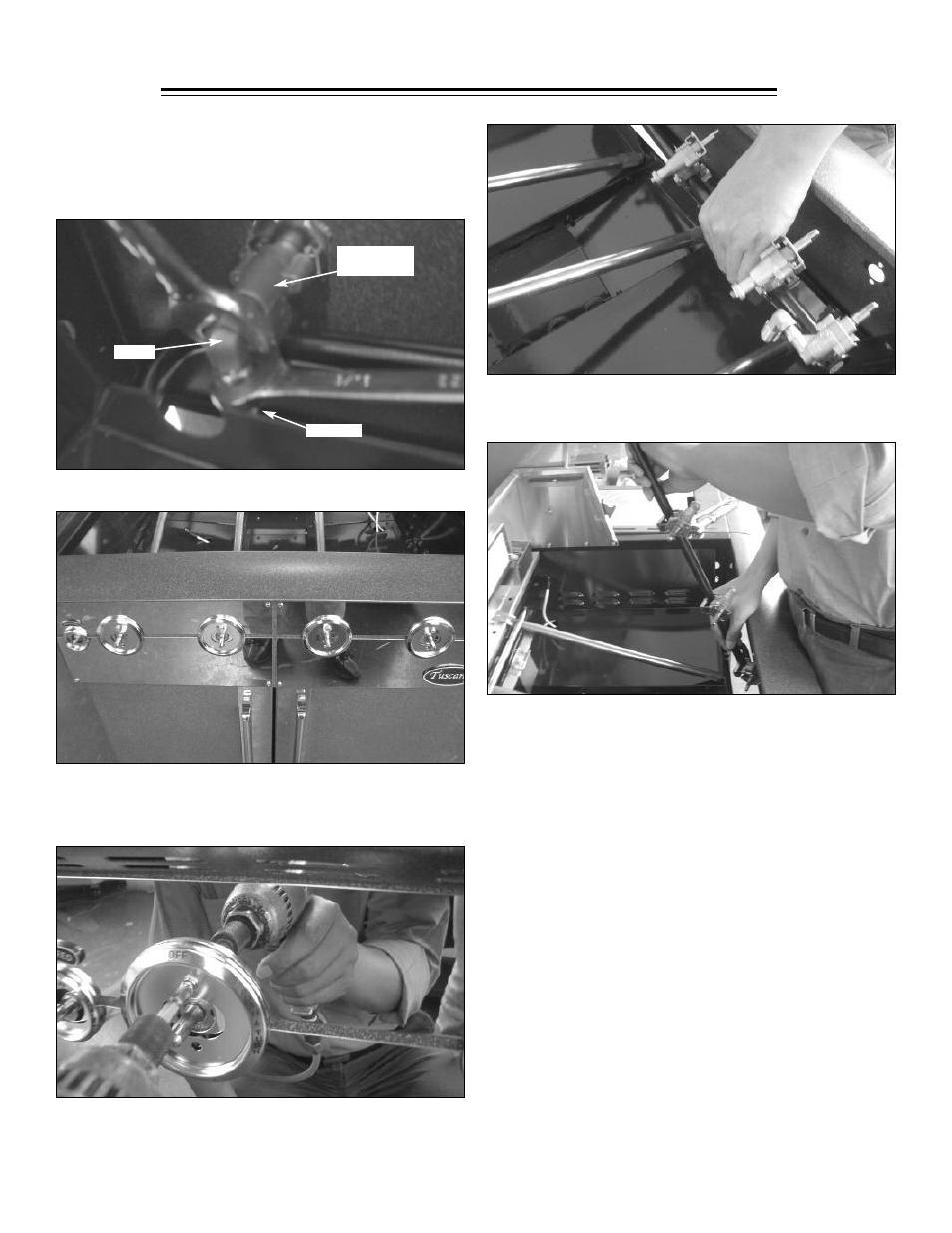

Replace the Manifold:
8. Hold the elbow on the Bottom IR Burner Valve
and use adjustable wrench to remove the flex
line from it.
9. Remove all the knobs, set the knobs aside.
10. Remove the screws holding the main burner
knob bezels to the front face and remove the
bezels.
11. Hold the manifold, slightly move it to the right
and lift the left end out.
12. Lift the left end of the manifold up, carefully
remove the manifold out of the grill.
13. Take the old manifold away.
14. Place the new manifold into the grill body
with the control knob stems facing outward
through control panel front.
15. Reattach the flex line on the right side of the
grill to the Bottom IR Burner Valve by using the
adjustable wrench.
16. Reattach the flex line on the left side of the
grill to the Rear IR Burner Valve by using the
adjustable wrench.
Note: Be careful, applying pressure to the elbow of the
valve may cause it to break.
17. Reattach the bezels to the manifold with the
screws removed in Step 10. Make sure that
“ off” is facing up on the bezel.
Flex Line
Elbow
Bottom IR
Burner Valve
