LOG PLACEMENT
DECORATIVE STONE
1. The largest log is placed in the front part of the grate with the notches facing upwards (see Figure 1 and
Figure 2).
NOTE: The front log should be as far to the front of the grate as possible.
2. The second largest log (Log with Burner Notch) is to be placed on the second tier of the grate (See Figure 1
and Figure 2).
3. The back log is to be placed on the back tier. (See Figure 1 and Figure 2).
4. Place the top logs as shown in Figure 2 and Figure 3. Incorrect log placement can lead to the production
of harmful carbon monoxide while the unit is in operation. Be sure that the logs are correctly placed in the
notches provided for them. There should be no direct impingement of flames on any of the logs.
The decorative stone from the bag provided should be spread on the bottom tray of the grate. (SeeFigure 3) The stone
should not be placed on or near the burner. Contact with the burner can cause the production of carbon monoxide.
WARNING: Failure to position the parts specifically approved with this
heater may result in property damage or personal injury.
MODELS: SCVFR18LP, SCVFR18NG,
SCVFR24LP, SCVFR24NG
MODEL:
VFM0L24

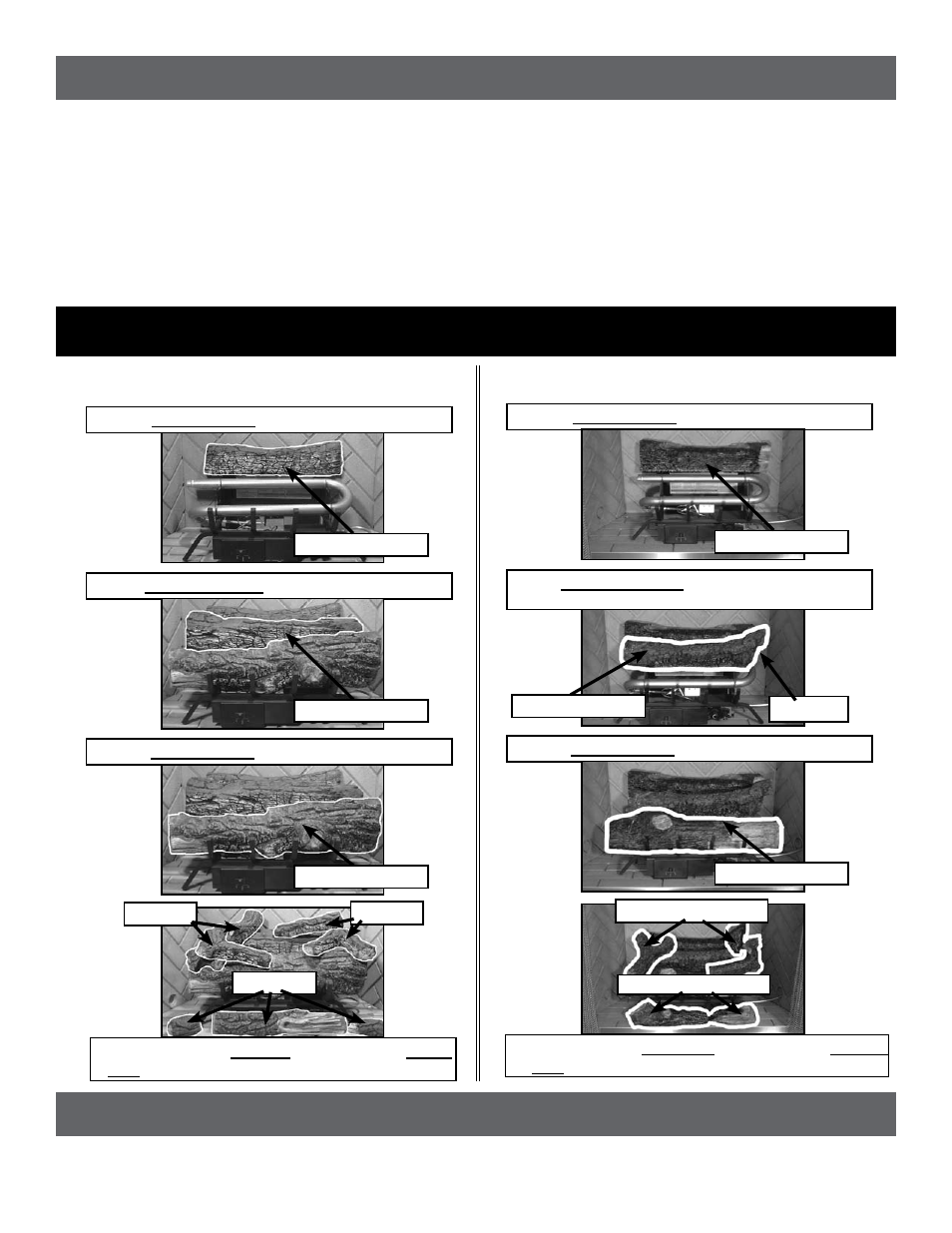

Place back main log on back of burner frame.
Back Main Log
Place back main log on back of burner frame.
Back Main Log
Place middle main log on back of burner frame.
Middle Main Log Log Notch Middle Main Log
Place middle main log in position. Make sure the
log notch is placed over the burner.
Place front main log in front of burner system.
Front Main Log
Place front main log in front of burner system.
Front Main Log
Arrange remaining top logs. Then place the cover
logs in front of control valve and remote sensor.
Top Logs
Cover Logs
Top Logs
Arrange remaining 3 top logs. Then place the 3 cover
logs in front of control valve and remote sensor.
Three (3) Top Logs
Three (3) Cover Logs
