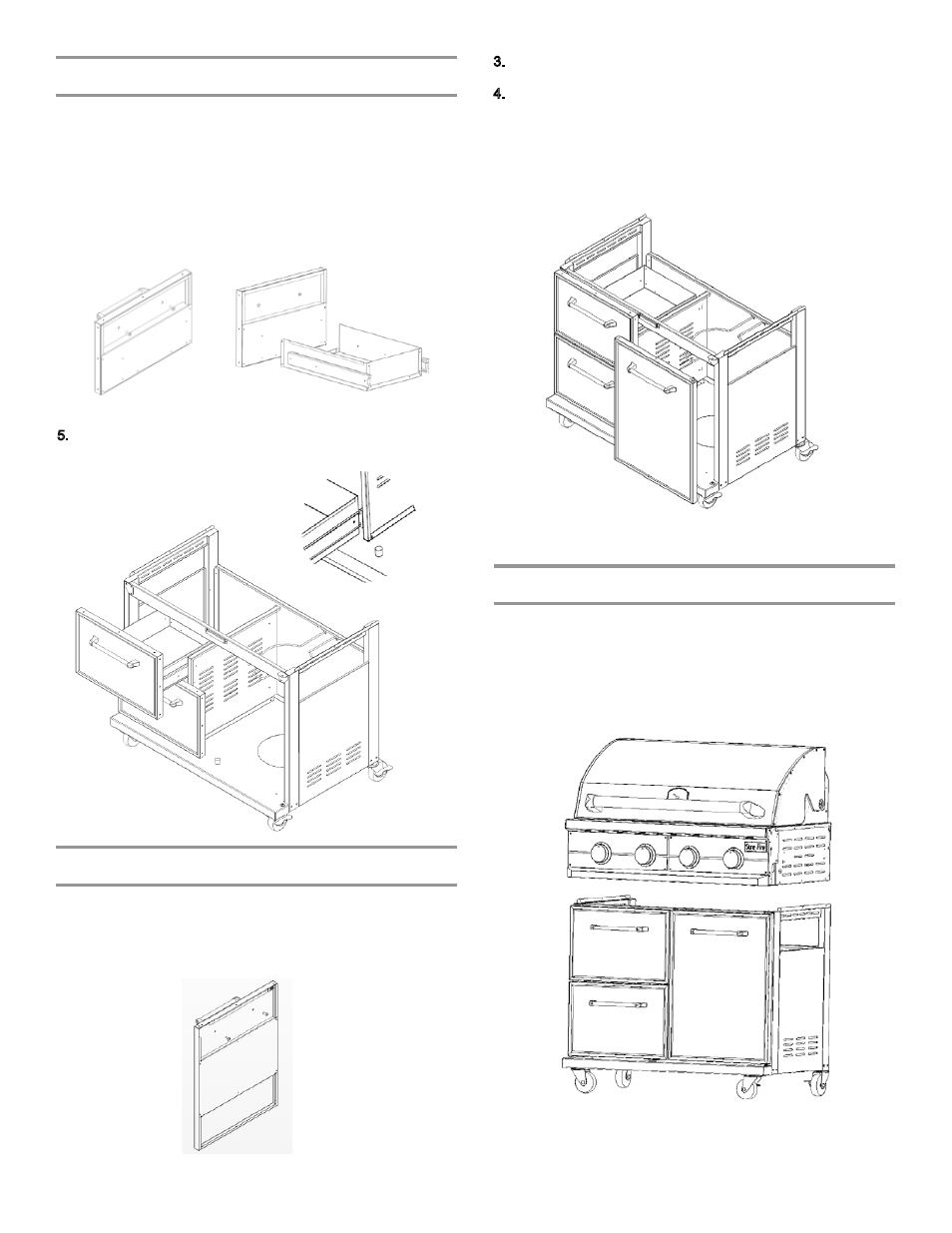

Assemble the drawers

Lay the drawer on the floor, and use one Phillips pan head

1.

screw M6 x 10 to attach one of the handle ends to the

front of the drawer.

Slide one end of the towel bar into the installed handle

2.

end. Attach the second towel bar handle end using one

Phillips pan head screw M6 x 10 while holding the drawer

in place.

Then use six (6) self-tapping screws to fix the drawer.

3.

Repeat this to attach the towel bar to another drawer.

4.

Assemble door to cart

Tilt the top of the door toward the grill while depressing the

1.

top door pivot pin.

Move the door slightly until the pin snaps into place in the

2.

hole at the bottom of the front face.

NOTE: The levels of the door may be adjusted using the

nuts on the pivot points.

Assemble grill head to cart assembly

With the help of a second person, lift the grill head up and

1.

set on the top of the grill cart.
Use Six (6) self-tapping screws to secure the grill head on

2.

the top of the cart sides.

Place the drawers evenly between the cart side and cart

1.

middle, then make the two sides of the drawer move

smoothly with the slot.

5.

Use one Phillips pan head screw M6 x 10 to attach one of

1.

the handle ends to the front of the door.

Slide one end of the towel bar into the installed handle end.

2.

Attach the second towel bar handle end using one Phillips

pan head screw M6 x 10 while holding the door in place.

4.

3.
