Sure Heat Sonoma SGIR30 - Manual (Page 6)

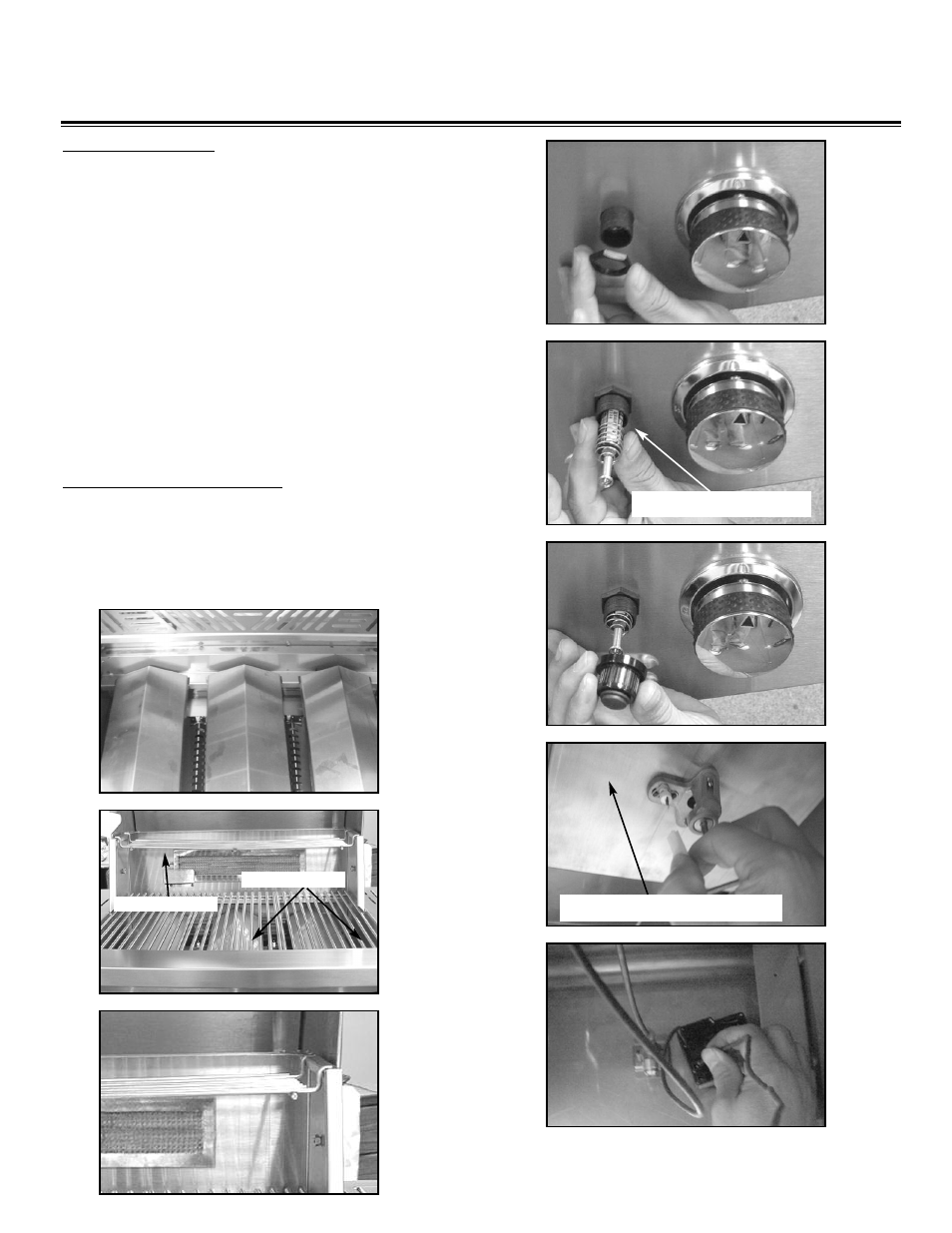

IGNITER ASSEMBLY
1. The battery, spring and igniter cap must be installed before
using.
2. Slide the threaded part of the igniter through the mounting
bracket and then through the igniter hole in the front of the
side burner shelf, then install the locknut. (See Fig. 13)
3. Slide spring assembly over the positive side of the battery.
(See Fig. 14)
4. Install the battery, negative side first. (See Fig. 14)
5. Screw igniter cap onto igniter. (See Fig. 15)
6. Attach the large end of the side burner wire to the terminal
spade of the side burner electrode. (See Fig. 16)
7. Attach the four (4) wires coming out from the side of the grill
and the side burner wire to the igniter terminals. (See Fig. 17)
NOTE: It does not matter which wire goes to which
terminal on the igniter.
INTERIOR PARTS ASSEMBLY
1. Insert the top row of flavor grids into the cutouts with triangle
ridges facing up. (See Fig. 18)
2. Install cooking grates on the ledges provided on the grill to
create your cooking surface. (See Fig. 19)
3. Rest warming shelf on four (4) slots above cooking grid.
(See Fig. 19-20)
6
Grill Assembly
Fig. 16
Fig. 17
Fig. 19
Fig. 18
Fig. 20
Cooking Grates
Warming Shelf
Fig. 14
Fig. 13
Fig. 15
Insert Negative Side First
Underside of Side Burner Shelf
