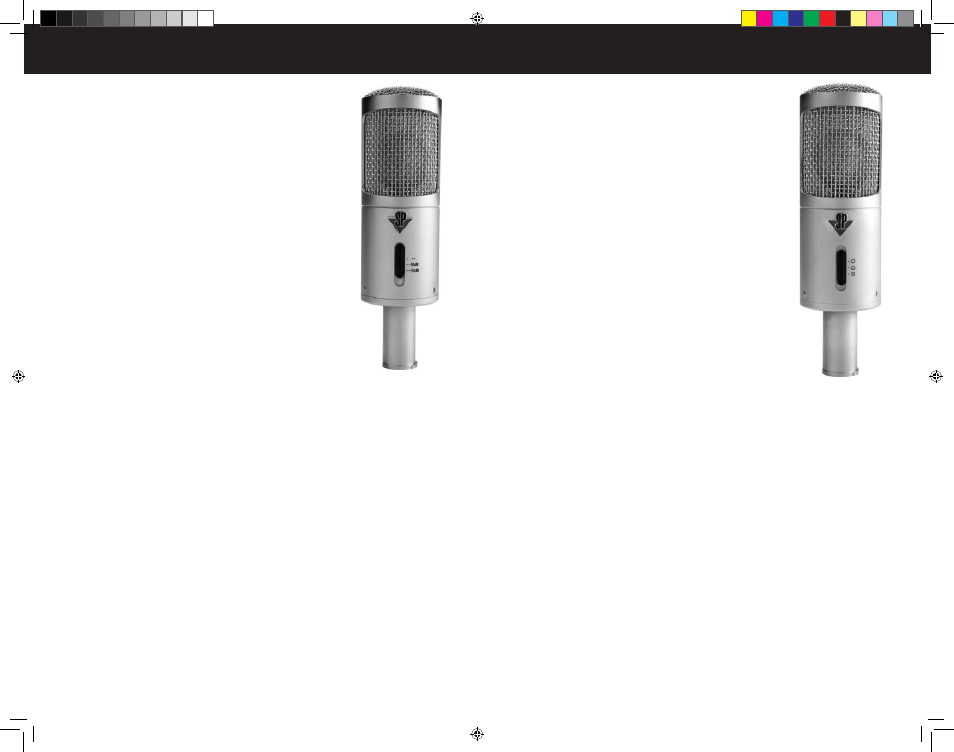

B3
The Studio Projects B1 is an externally polarized cardioid pressure gradient
transducer microphone with FET impedance converter. Diaphragm material
is 3µm mylar for natural reproduction of vocals and instruments. It features
a selectable pad and high pass filters as well as three directional pattern
settings: omnidirectional, cardioid and figure of eight. The output circuitry is
active and is capable of driving long cable runs. The B3 is useful for all man-
ner of recording work and music styles.
B3 SPECIFICATIONS
Sensitivity: 14/16/18mV/Pa
(Omni/Cardioid/Figure 8)
(-37/-36/-35dB @1000Hz)
Polar pattern: Cardioid, Omni, Figure 8.
Max. Output: 2.5V rms @1000Hz,<1% THD.
Max. SPL: 137 dB SPL (Cardioid) @1000Hz,<1% THD.
Noise Level: 14 dB-A (IEC651) Cardioid
S/N ratio: 80 dB.
Recommended Input Impedance: 1200 OHMs
Power requirement: 48V +/-4V.
Current: 2.5mA.
Accessories: Shockmount, Foam Windscreen
7 6
B1
The Studio Projects B1 is an externally polarized cardioid pressure gradient
transducer microphone with FET impedance converter. Diaphragm material
is 3µm mylar for natural reproduction of vocals and instruments. It features
dual selectable pads and high pass filters for a total of nine possible modes
of operation. The output circuitry is active and is capable of driving long cable
runs. The B1 is useful for all manner of recording work and music styles.
B1 SPECIFICATIONS
Sensitivity: -34dB,(0dB=1V/Pa)
Polar pattern: Cardioid.
Frequency response: 20~20000Hz.
Noise level: 12dB-A (IEC651).
S/N ratio: 82 dB.
Max. Output: 3.3V 0.5% THD @1000Hz at 1KOHM load impedance.
Max. SPL: 137 dB
Power requirement: 48 +/- 4V, 3mA.
Accessories: Shockmount, Foam Windscreen.
