SETTING UP YOUR AMPLIFIER
The TA1501C has powered loop-through. This feature enables the user to take the signal from an
audio source and pass it to a series of TA1501C amplifiers in order to drive multiple transducers.

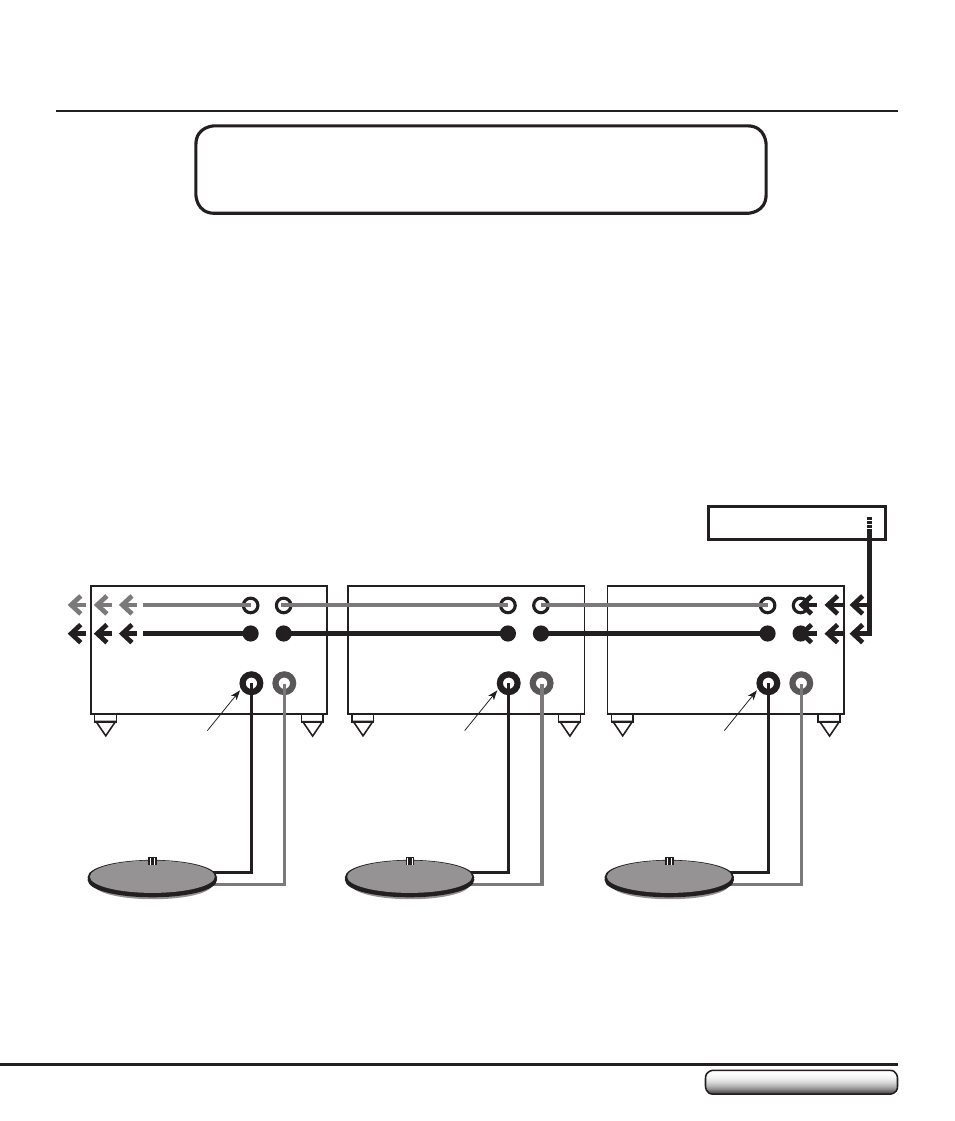

The drawing for this type of hookup is shown below. Use a standard “Y” adapter to get the signal from
the audio source (e.g., from the LFE/SUB output). If the input signal is coming from two ports (e.g.,
from the RF and LF outputs), the “Y” adapter is not needed. The wires from those connectors can be
connected directly to the “Audio In” connectors of the TA1501C.
Subsequent wiring between the amplifiers can be done with single or paired wire connectors. The
wiring for the transducers is the same as that for a single transducer hookup (see “Connecting the
Transducer to the Amplifier” on the previous page).
L L L
R R R
OUT OUT OUT IN IN IN
Transducer #1 Transducer #2 Transducer #3
Audio Source
TA1501C Amplifier #1 TA1501C Amplifier #2 TA1501C Amplifier #3
Transducer Output Transducer Output Transducer Output
– – – + + +
Using the Powered Loop-Through
to Run Multiple Transducers
