TA1501C Amplifier 17 www.clarksynthesis.com

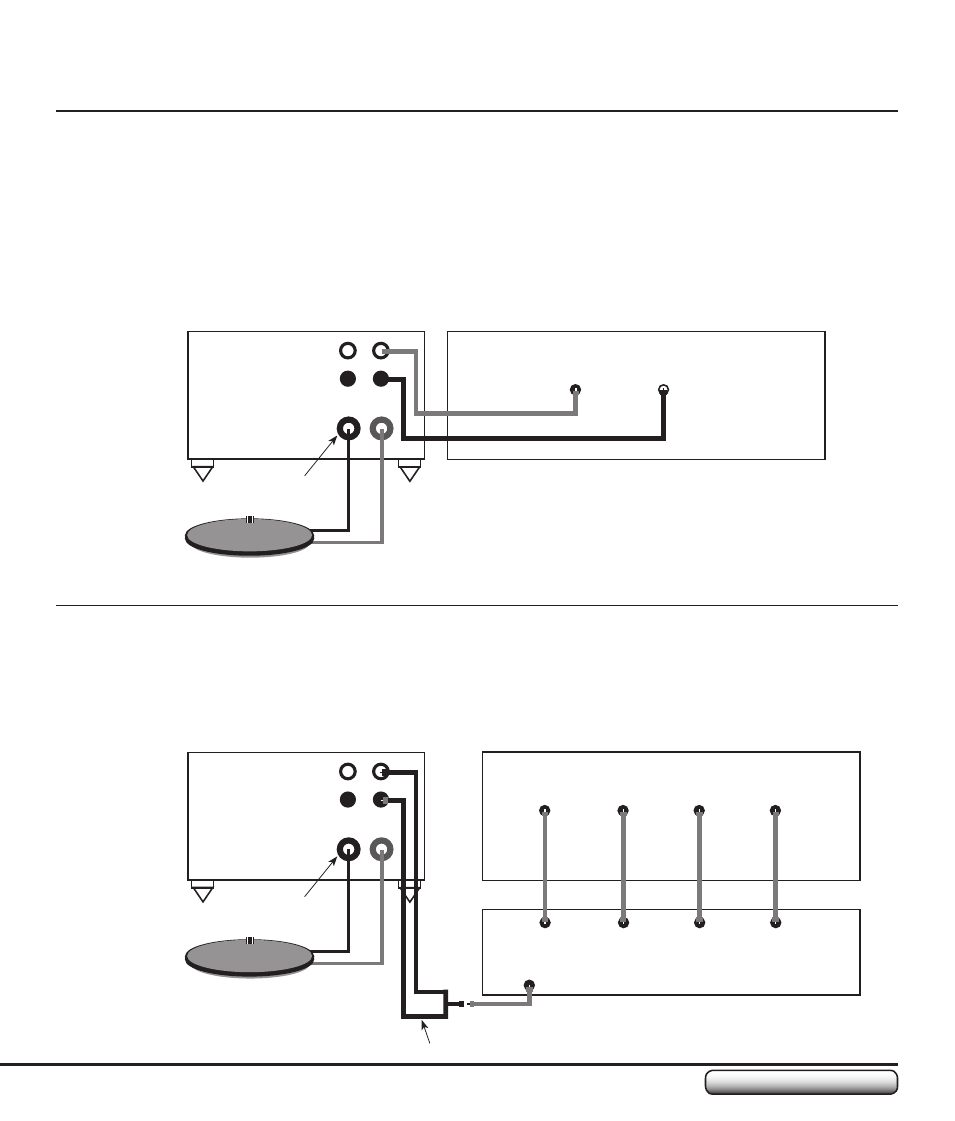

Right Front (RF) and Left Front (LF) Hookup
For this hookup, connect the RF and LF Pre-Amp Outputs to the TA1501C amplifier inputs.
NOTE: Not all receivers have Pre-Amp outputs for the Right Front and Left Front outputs. If you
have a question about your receiver’s outputs, please consult your owner’s manual or contact your
receiver’s manufacturer.
Multiple Signal Hookup
This configuration is a little more complicated. You will need a small mixer to make this work.
Connect the signals you want to use to the mixer input. Then, connect the mixer output to the
TA1501C amplifier input using a “Y” adapter.
L
L
R
R
OUT
OUT
OUTPUT
LF
LF CENTER LFE/SUB
CH4 CH3 CH2 CH1
Pre-Amp Audio Out
Pre-Amp Audio Out
RF
RF
IN
IN
Y Adapter
Transducer
Transducer
Surround-Sound Receiver
Surround-Sound Receiver
Mixer
TA1501C Amplifier
TA1501C Amplifier
Transducer Output
Transducer Output
–
–
+
+
SETTING UP YOUR AMPLIFIER
