StarTech.com IDE2CF User Manual
Instruction manual, 40/44 pin ide to compact flash ssd adapter, Packaging contents

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 11/29/2011
For the most up-to-date information, please visit: www.startech.com

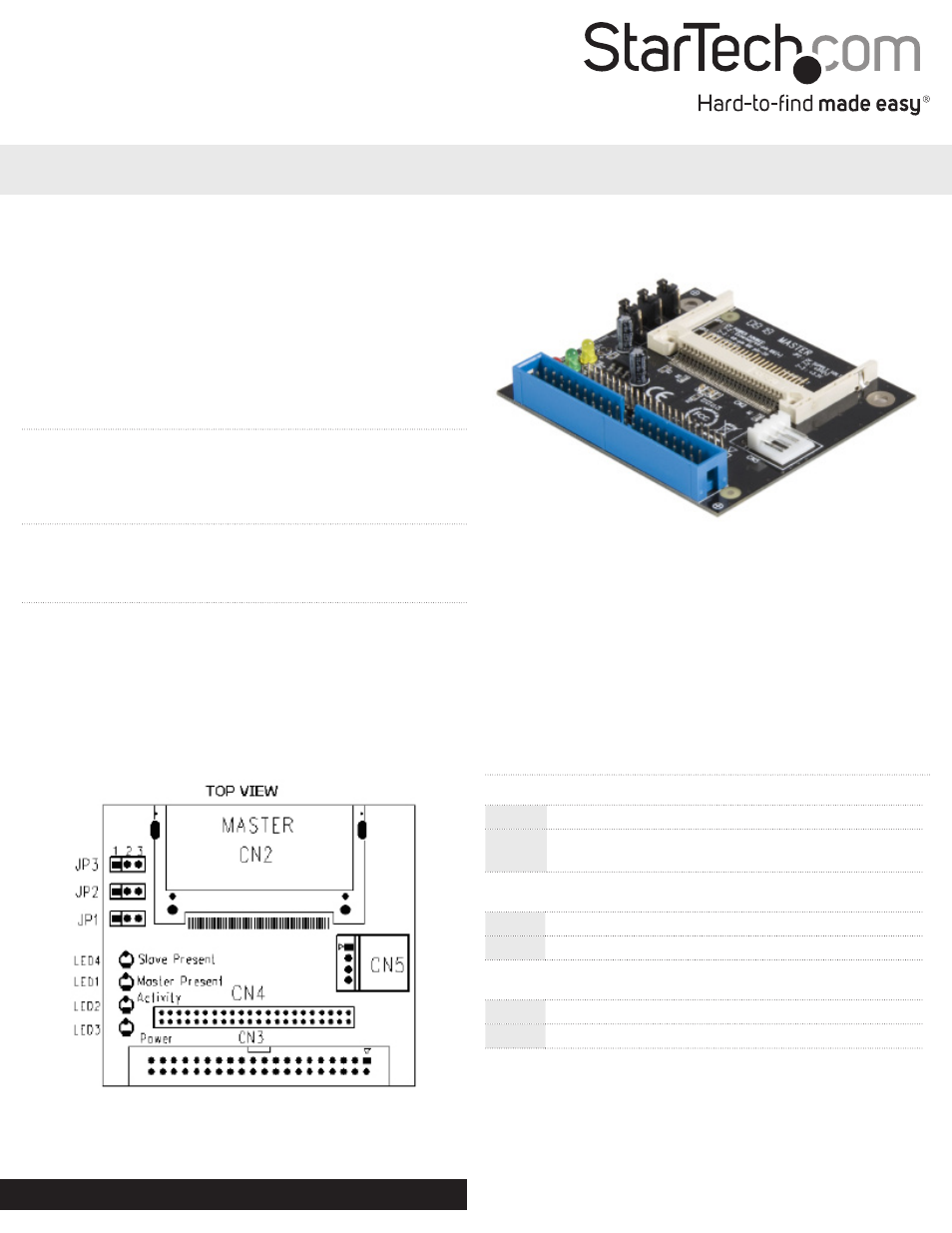

IDE2CF
40/44 Pin IDE to Compact Flash SSD Adapter
*actual product may vary from photos
Packaging Contents
• IDE2CF adapter
• Installation Guide
System Requirements
• Computer system with available 40 or 44-pin IDE channel
Installation
1. Insert the CompactFlash card into the CN2 slot on the adapter.
2. Change the jumper settings to match your configuration.
3. Mount the adapter inside your computer case.
4. Connect either the 40 or 44-pin IDE ribbon cable from your IDE
controller to the appropriate connector on the adapter.
5. Connect the floppy power connector (SP4) from your power
supply to the CN5 connector on the adapter.
• CN2 – CompactFlash socket (Master/Single mode)
• CN3 – 40-pin (2.54 mm pitch) IDE connector
• CN4 – 44-pin (2.0 mm pitch) SFF IDE connector
• CN5 – Floppy disk drive power connector
• LED1 – CompactFlash card-detect indicator
• LED2 – Read/Write activity indicator
• LED3 – Power-on indicator
Jumper Settings
JP1 – CompactFlash power source selection:
1-2 *
External power (CN5) or 44-pin SFF IDE connector (CN4)
2-3
Pin 20 of 40-pin standard IDE connector (CN3), for VIA
EPIA series motherboards
JP2 – CompactFlash voltage selection:
1-2 *
+5.0V
2-3
+3.3V
JP3 – CompactFlash mode selection:
1-2 *
Master/Single
2-3
Slave
