StarTech.com PATA2SATA2 User Manual
Ide to dual sata converter, Installation guide, Features

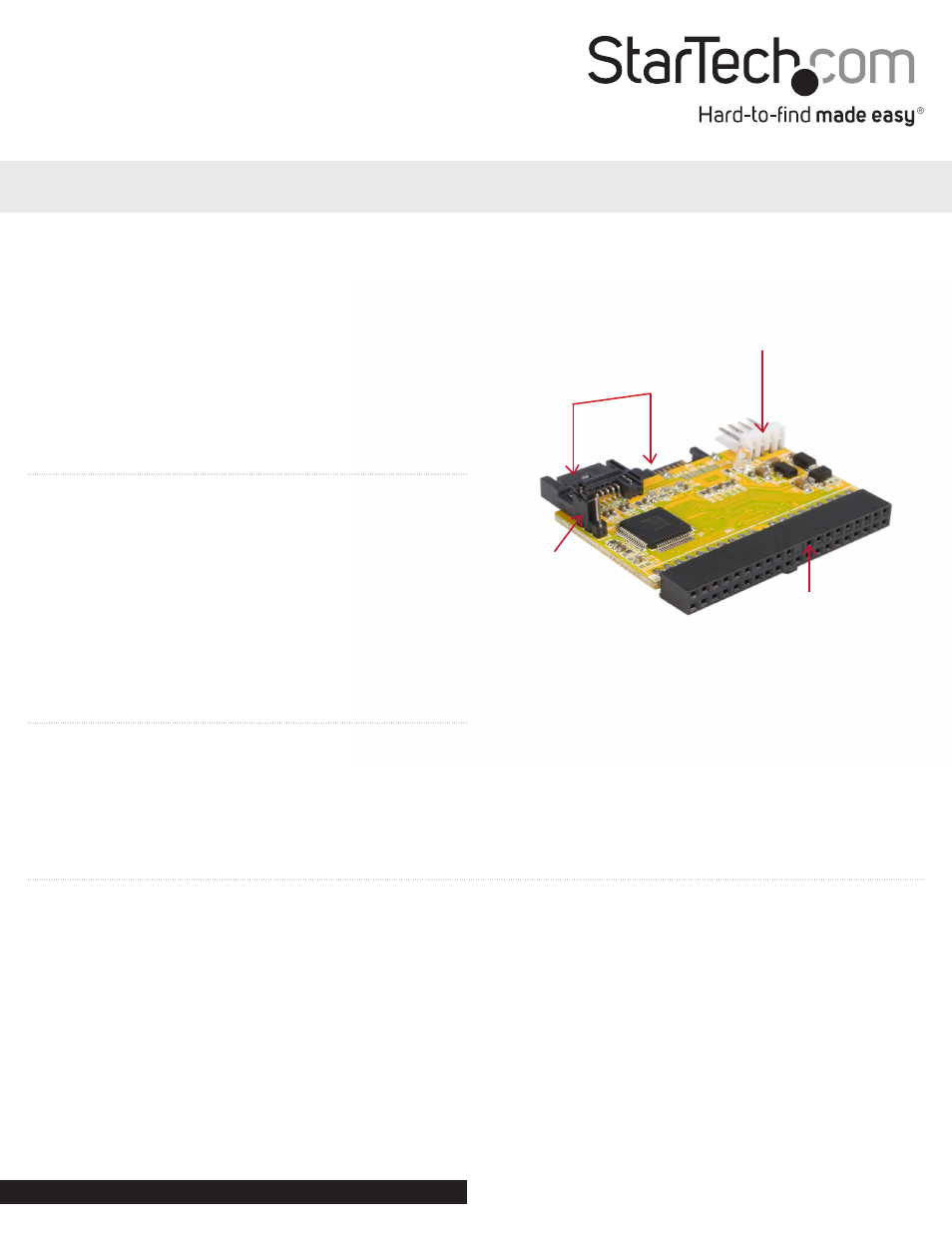

7-Pin Male SATA Data
Connectors
40-Pin Female IDE
Connector
Male SP4
Connector
Jumper
Connector
IDE to Dual SATA Converter
PATA2SATA2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l’utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l’uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Features
• Compatible With Ultra ATA 100/133 with Data transfer rate up to
1.5 Gbps (150 MBps)
• Compliant With Serial ATA 1.0 Specification
• Converts IDE to Serial ATA
• No Drivers required
• Supports ATAPI devices (CD/DVD drives, CD/DVD burners, etc... )
• Supports up to 2 channels and 2 devices
• With no jumpers, makes it easy for configuration
Package Contents
• 1 X IDE to SATA Converter
• 1 X Power Cable
• 2 X SATA Cable
Installation
The following steps outline the procedure to install the PATA2SATA2 IDE to SATA Drive Motherboard Adapter.
1. Power down the computer, and open the computer case to provide access to the motherboard.
2. Insert the PATA2SATA2 into an available 40-pin IDE slot on the motherboard.
3. Fasten the SATA Drive(s) to the computer case, as you would in a typical hard drive installation.
4. Connect the SATA Drive(s) to the computer power supply, using available SATA power connectors.
5. Connect the LP4 power connector on the LP4 to SP4 adapter to an available LP4 power connection on the computer power supply.
6. Connect the remaining end of the LP4 to SP4 adapter to the 4 pin power port on the PATA2SATA2.
7. Connect the SATA Drive(s) to the PATA2SATA2 SATA connectors using the SATA data cable(s).
8. Replace the computer case cover(s) and power on the computer.
Installation Guide
Manual Revision: 06/06/2011
For the most up-to-date information, please visit: www.startech.com
