Page 6
Instruction Manual
3

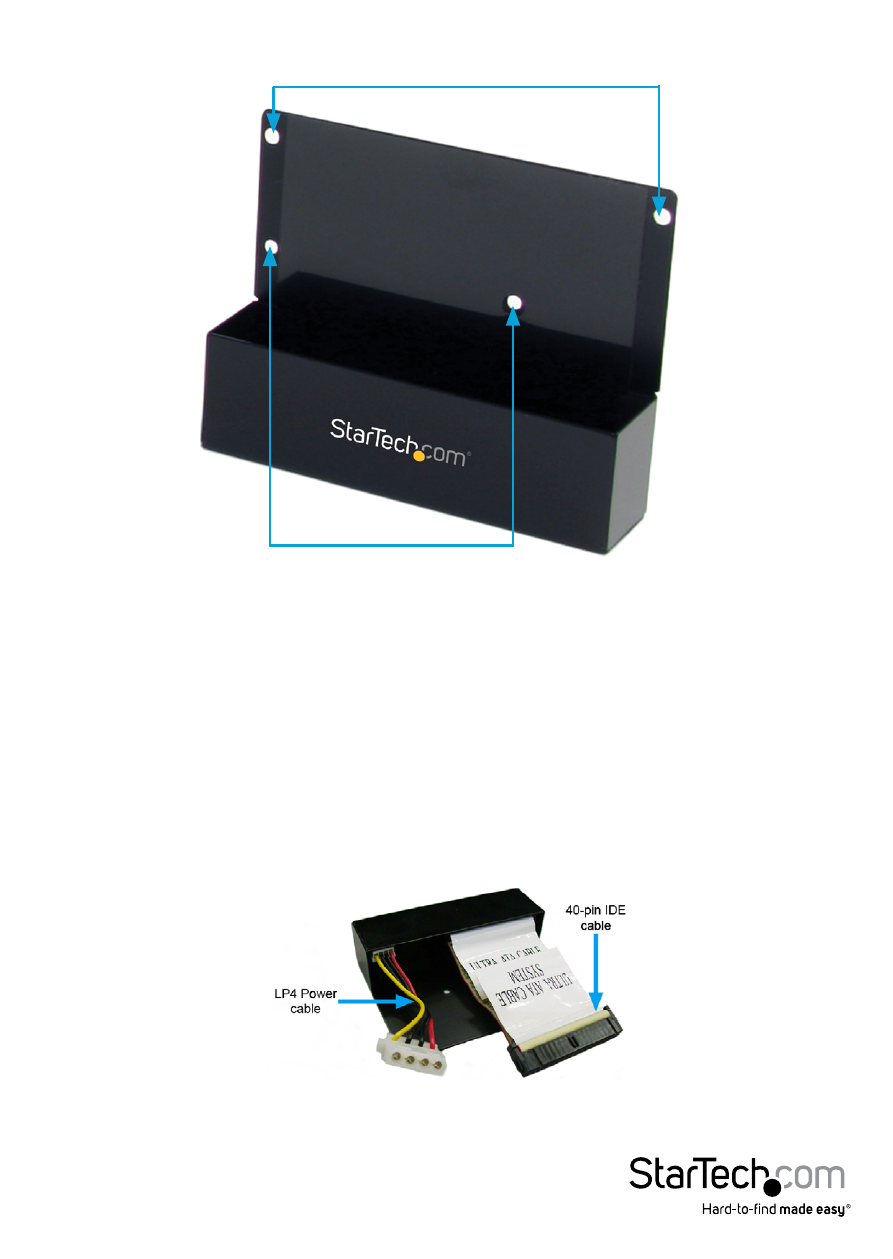

3.5” Hard Drive Mounting Points
2.5” Hard Drive
Mounting Points
Installation
3.5in Hard Drive Setup
1. If connecting a 3.5in (40-pin) IDE hard drive, connect the 40-pin IDE ribbon cable to
the 40-pin connector on the inside of the SAT2IDEADP.
2. Connect the large 4-pin LP4 power cable to the small 4-pin SP4 floppy power
connector on the inside of the SAT2IDEADP.
