LED Indicators
PWR1: This green LED will light if power is connected and active at the PWR1 terminal
connection.
PWR2: This green LED will light if power is connected and active at the PWR2 terminal
connection.
Fault: This amber LED will light if one of the power inputs has fault condition and as
long as DIP sw#1 is OFF.
100/1000: This dual color LED will light with amber color when the LAN connected
speed is 1000M, it will light with green color when the LAN speed is 100M and will
remain off if the connected speed is 10M.
LINK/ACT: This green LED will light when the LAN port has a link and will flash when
there is Ethernet traffic.
PoE: These green LEDs will light when the LAN has successfully negotiated PoE and is
supplying output power to the remote connected PD device.
Installation
DIN Rail / Wall Bracket Installation

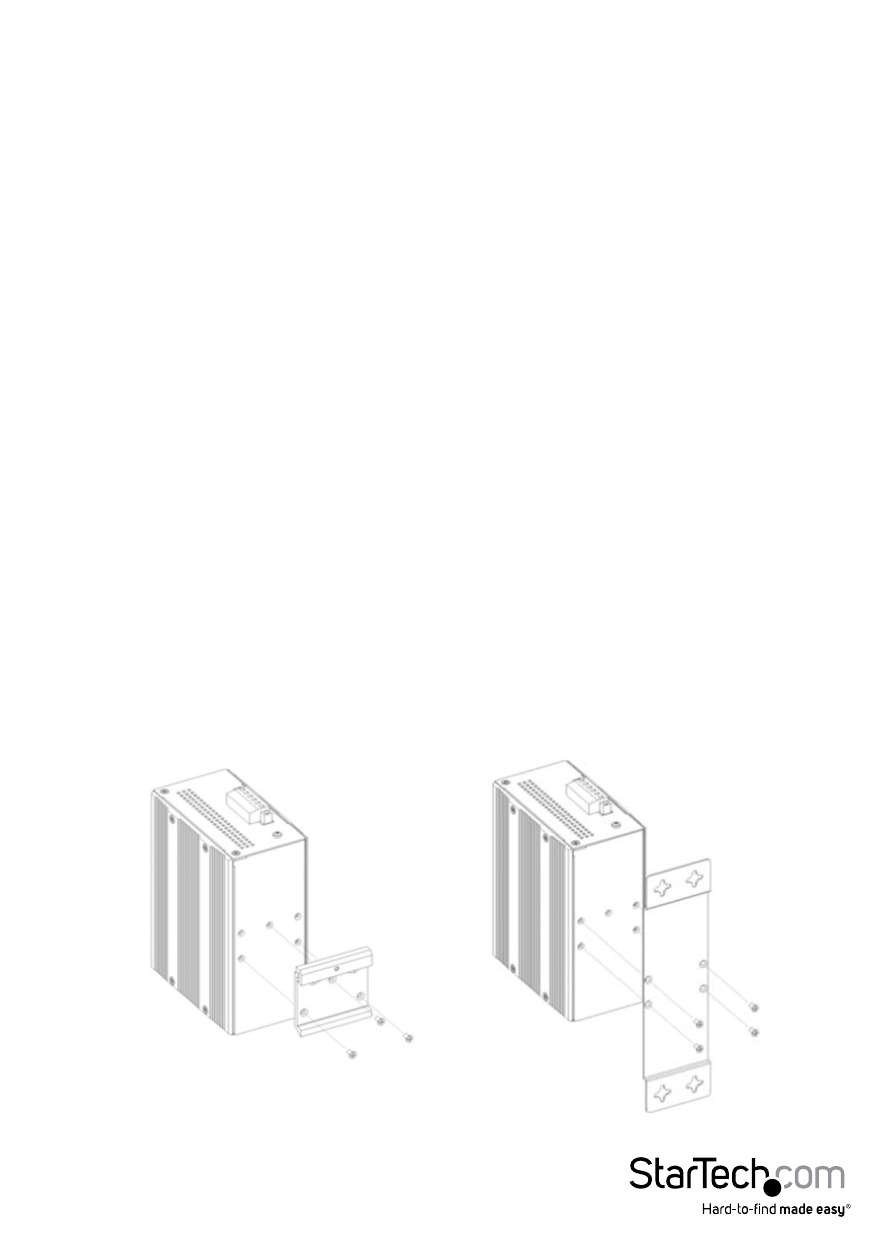

If you are mounting the IES61002POE product onto either a DIN Rail or to a wall, you
will first need to attach the appropriate bracket(s) to the device as shown below.
