StarTech.com ST7300USBM - Manual

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 07/25/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• USB 3.0 Hub
• USB 3.0 Cable (2m)
• DIN Rail Mounting Kit
• Terminal Block
• Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7/ 8
(32/64-bit), or Apple® Mac OS® 10.x, or Linux®
ST7300USBM
7 Port Industrial SuperSpeed USB 3.0 Hub
*actual product may vary from photos
Installation
NOTE: Supplying external power is optional, however to ensure that
each USB port is fully powered, connecting external power
is recommended.
1. If not using external power, skip to Step 4. Using a small flat head
screw driver, loosen the screws for the terminal block connectors.
2. Connect the power and ground wires from your DC power source
to the proper terminal block connectors and fasten the screws.
The terminals are marked on the USB Hub’s housing.
3. Insert the terminal block housing into the USB Hub.
4. Connect the USB cable from the USB hub (type B port) to the host
computer system. With power being supplied (either from the
terminal block or USB host connection), the power LED should
light up solid.
5. The operating system should detect the USB Hub immediately
and automatically install it.
6. Once installation is complete, USB devices should be able to be
connected to the hub and recognized.

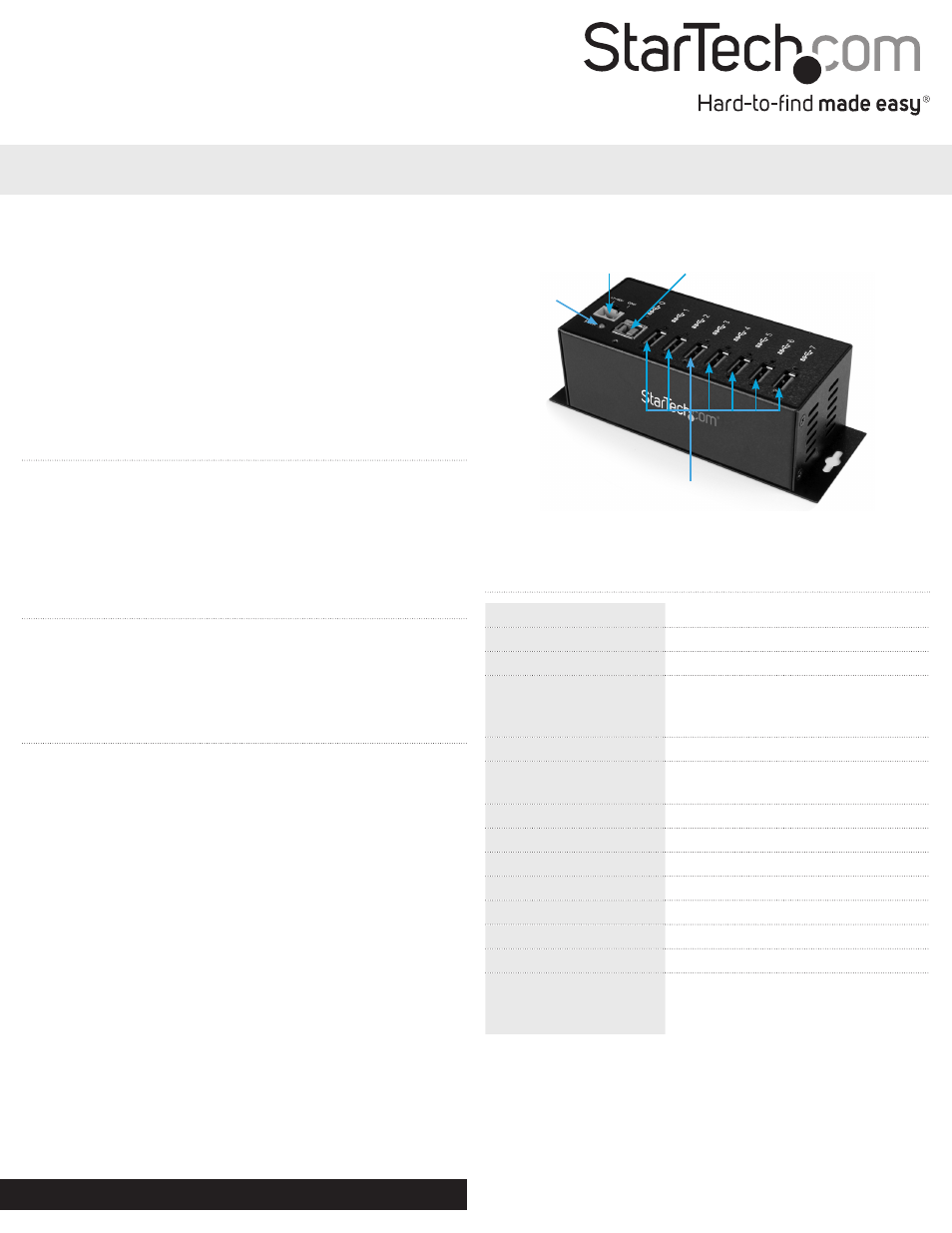

USB 3.0 type A ports
USB 3.0 type
B port (Host)
Power LED
2-wire Power
Terminal Block
(included)
Specifications
Host Interface USB 3.0
Number of Ports 7
Chipset ID Genesys Logic GL3520
External Connectors
1 x USB 3.0 type B female
7 x USB 3.0 type A female
1 x 2-wire Terminal Block
LEDs 1 x Power
Maximum Data
Bandwidth
USB 3.0: 5Gbps
Enclosure Material Metal
Power Adapter 7~40V DC
Operating Temperature 0°C~55°C (32°F~131°F)
Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)
Humidity 5% ~ 95% RH
Dimension 122.0mm x 55.0mm x 43.5mm
Weight 650g
Compatible Operating
Systems
Windows XP/ Server 2003/ Server 2008
R2/ Vista/ 7/ 8 (32/64-bit), Mac OSX,
Linux
