Instruction Manual
3
Installation and Usage
WARNING: Hard drives require careful handling, especially when being transported.
If you are not careful with your hard disk, lost data may result. Always handle your
hard drive and storage device with caution.
Hard Drive Installation

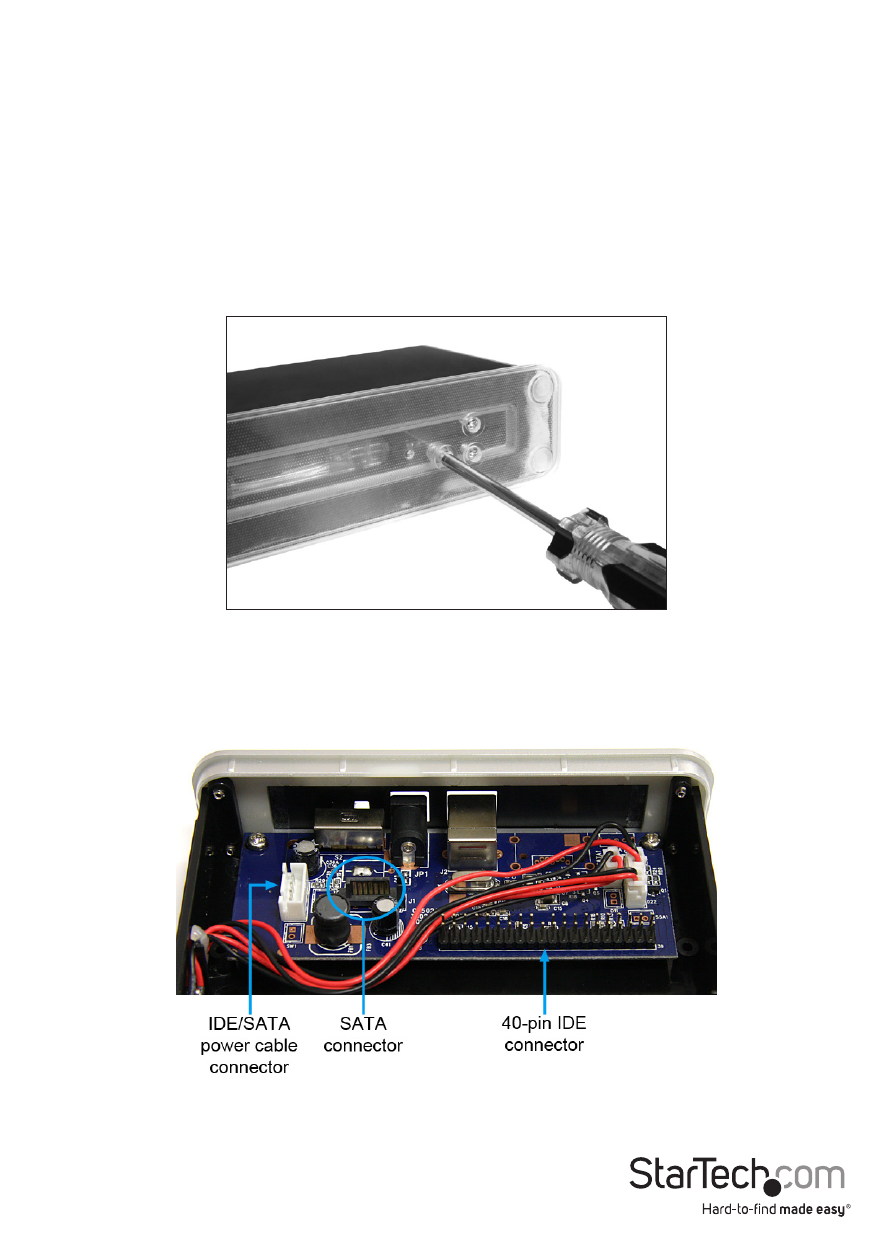

1. Remove the screws holding the Base Stand to the enclosure, and separate it from
the Enclosure, then slide the Disk Mounting Tray out of the Enclosure:
2. Gently place the hard drive, label side up, into the enclosure. Connect the IDE
or SATA Power and Data cables to the hard drive and to the controller board as
appropriate. Please note that the IDE Data cable comes pre-installed, so if installing
a SATA drive, this cable will likely need to be removed.
