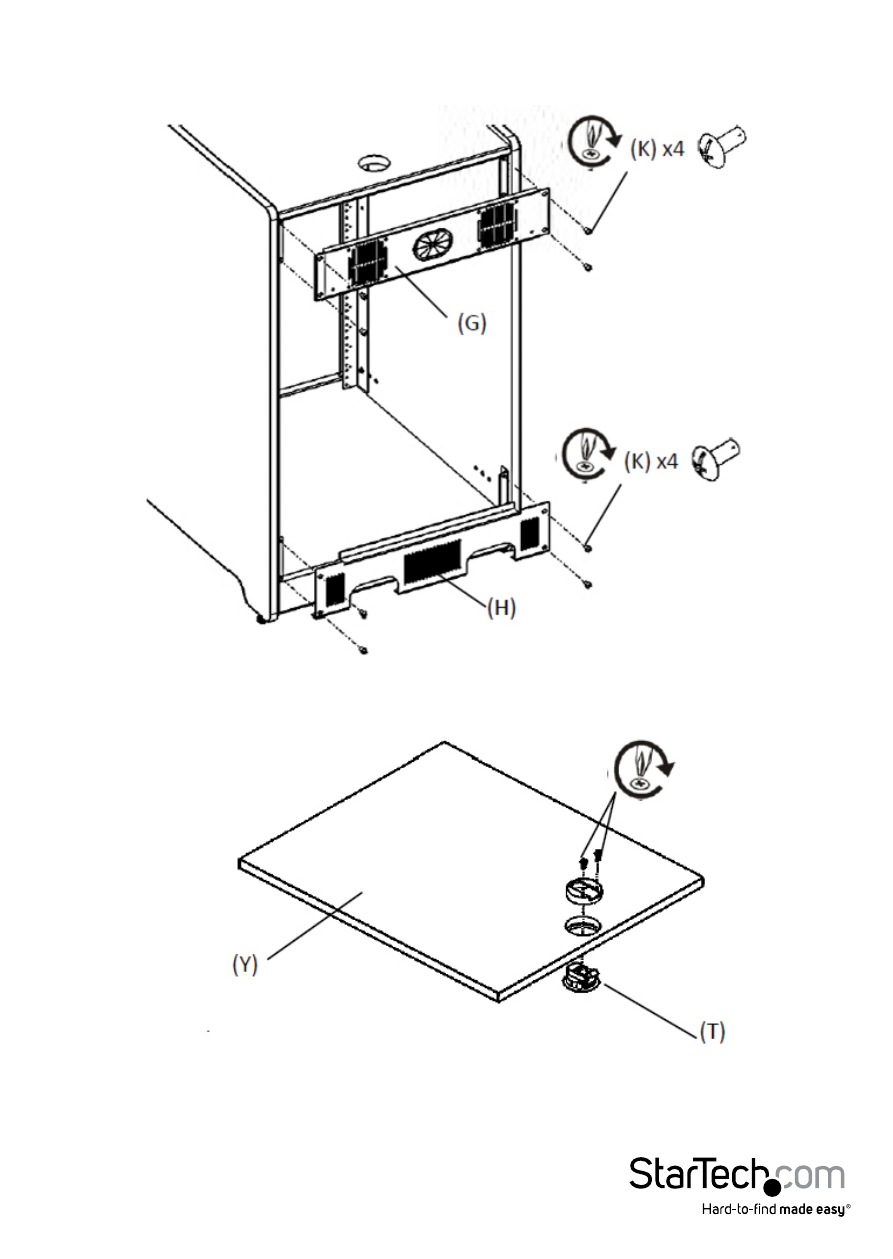

6. Use 8-M5x12 Truss Screws (K) to secure the Ventilation Panel (G) and the Cable Entry
Panel (H) to the two Side Panels.
7. Install the Latch (T) into the holes on the Rear Panel (Y).
8. Slide the base of the Rear Panel (Y) onto the Cable Entry Panel, the push the top in
to close. Install the Round Grommet (U) into hole in the Rack Top.
