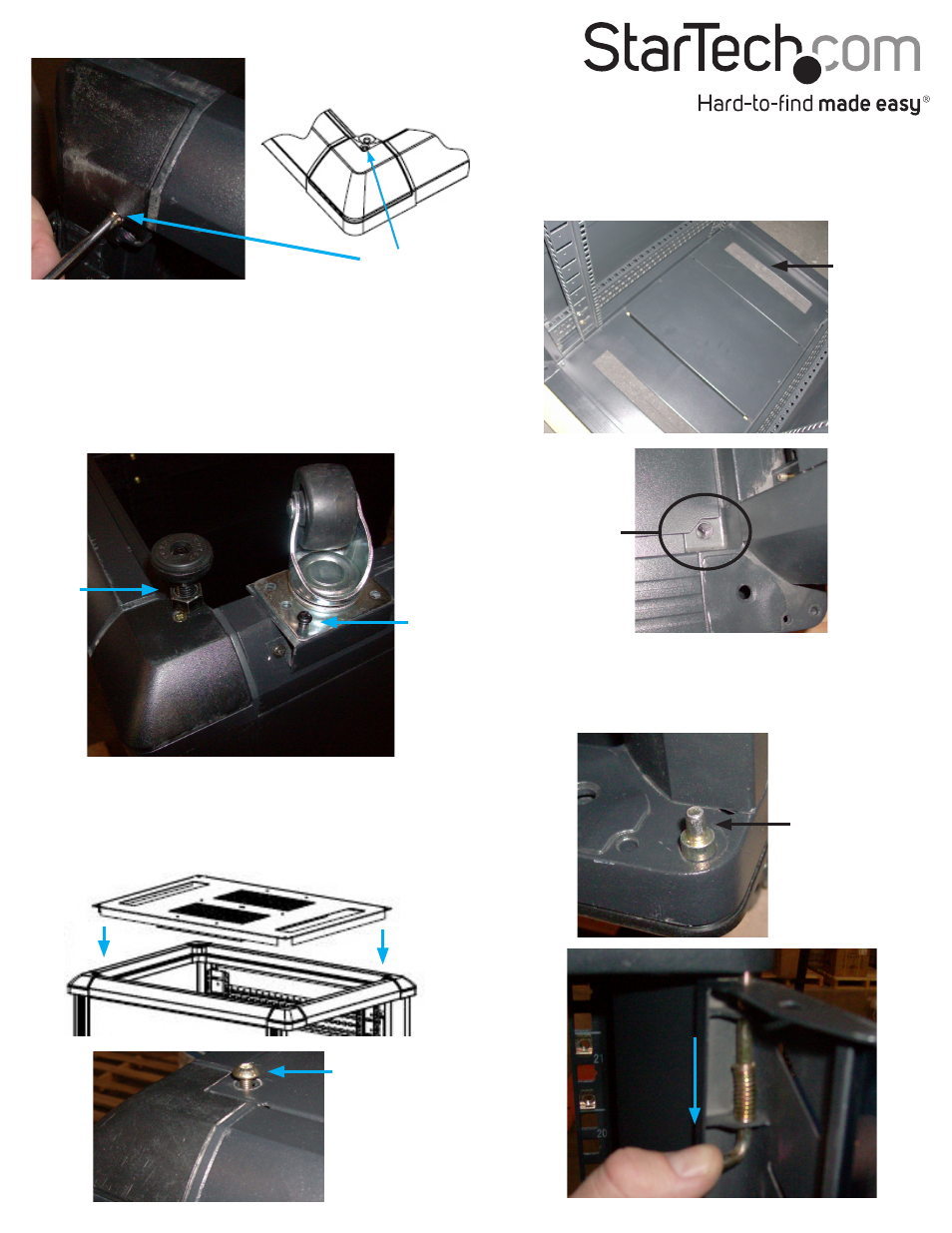

2. Place the Corner Caps over each of the 8 corner joints and fasten
them with flat-head M4 screws and a Phillips screwdriver.
3. On the bottom of the rack, install the four adjustable corner feet
and the four casters. The adjustable feet screw into the large
openings in each corner with their height determined by the
large hex nut. Screw in the feet to the desired height, then use
an adjustable wrench to lock the hex nut in place. The casters are
fastened using the M5 screws and Phillips screwdriver.
NOTE: You may wish to position the feet so the rack does not move,
until assembly is complete.
4. Position the rack right-side up (side panel locks at top) and drop the
top panel onto the top of the rack. Fasten to the frame using M6
hex screws and the smaller Allen Wrench.
NOTE: Ensure the corner caps are installed before attempting to
install the roof panel, otherwise the corners will not be level.
5. Position the 3 floor plates on the bottom of the rack, making sure
the two pieces with the cable management slots are at the end.
Fasten the floor plates with M5 screws and Phillips screw driver.
6. To install the front and rear doors, first install the door bearings
into the bottom of the door frames. Install the door onto the
bearing and then pull down the spring loaded door bearing to
install the top of the door.
M4 Screw
M5 Screw
Corner
Feet
M6 Hex Screw
Cable
Management
Slot
Note the notches
in the end plate
corners
Door Bearing
