Instruction Manual
2
Installation
1. Ensure your computer system and DisplayPort Displays are powered off.
2. Connect the integrated DisplayPort cable into the DisplayPort connector on the
host computer system/video card.
3. Connect the DisplayPort monitor/display device(s) into the DisplayPort #1/#2/#3
connectors on the MSTDP123DP MST Hub.
4. Power on the monitor/display device(s).
5. Turn on the computer system.
6. The system will now detect the MST Hub, and add the attached displays to the
Display Settings of the System.
Microsoft® Windows® Operation
With a DisplayPort 1.2 compatible video card, Microsoft Windows® will recognize the
individual Displays (up to 3) and can either Extend or Duplicate the main Monitor.
Adjust video settings in Microsoft Windows®

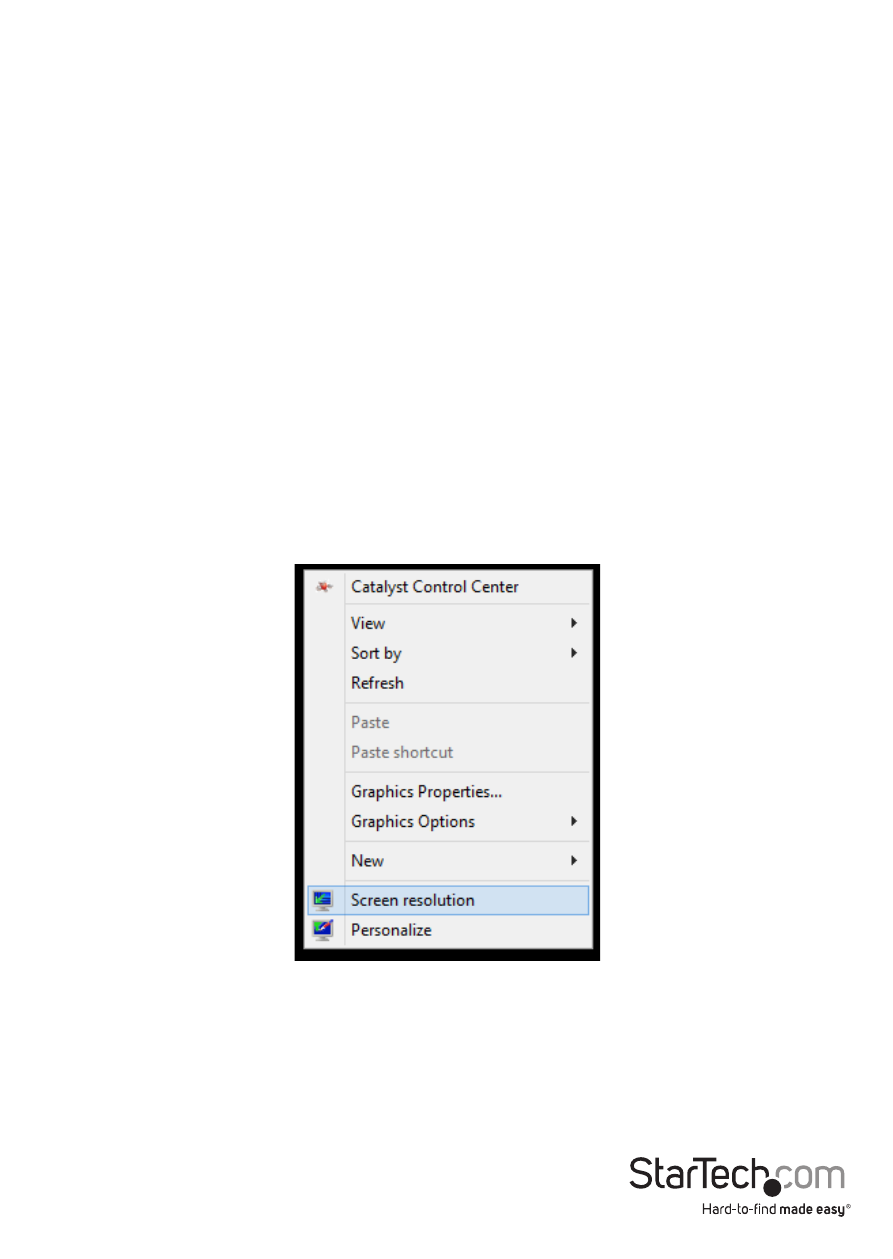

1. Right click the Windows Desktop and select “Screen Resolution”. The Display Settings
window appears.
