Page 11

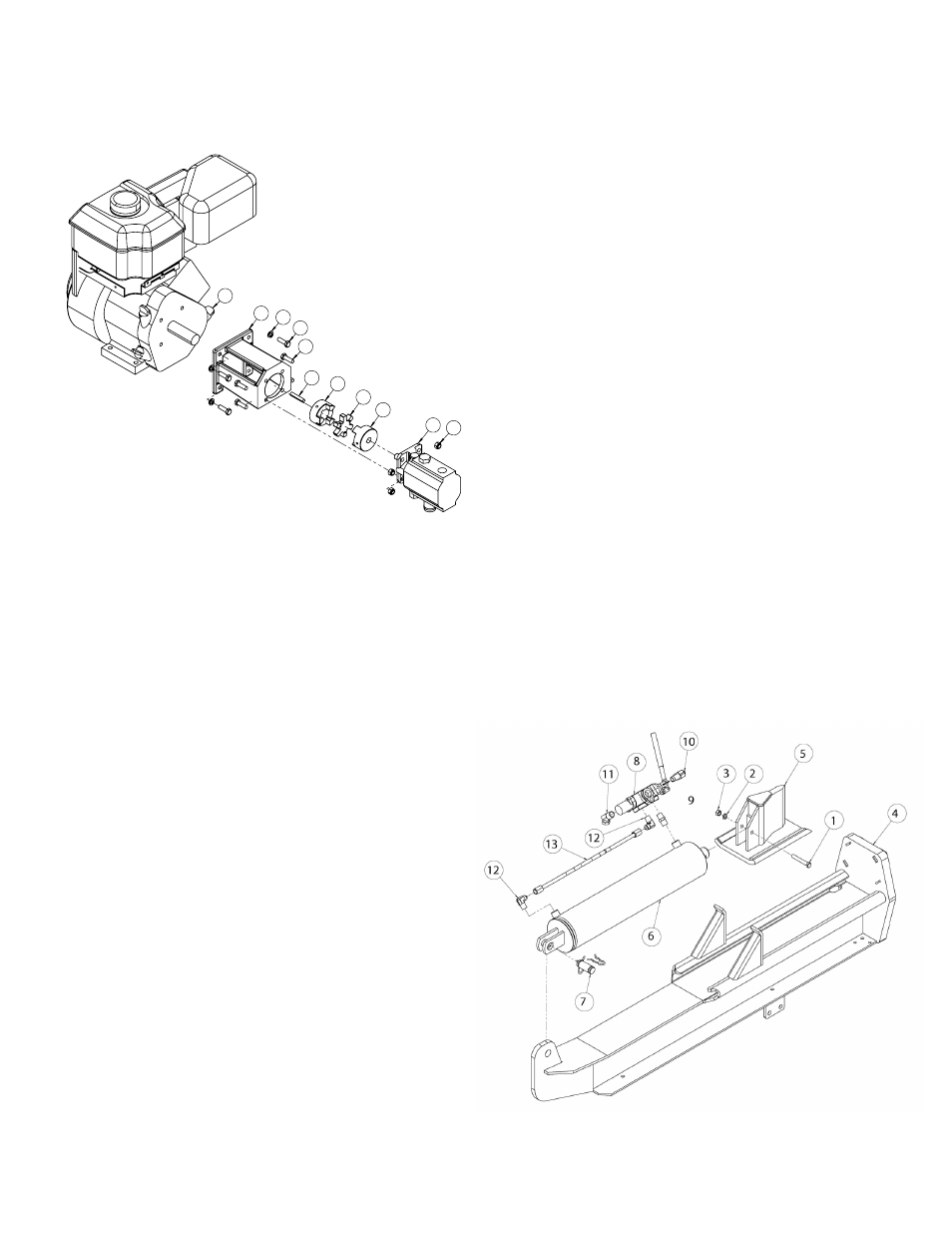

BEAM ASSEMBLY BREAKDOWN
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
* Available as complete coupler assembly only. Order part number
S400824L0. Includes item numbers 6, 7 and 8.
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 1/2” x 3-1/4” GR 5 Bolt 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” Hex Nut 1
4 S401413S0 Beam 1
5 S40141800 Wedge 1
6 S390117B0 5” Cylinder 1
7 S07073100 Cylinder Pin 1
8 S390406SC Valve 1
9 S39034300 1/2” NPT Nipple 1
10 S39032000 3/4” x 3/4” NPT Tube 1
11 S39039000 45° Swivel Fitting, 3/4” male, 1
1/2” female
12 S39034700 1/2” Pipe to Steel Tube Fitting 2
13 S39034600 1/2” Steel Tubing 1
S40127500 Beam Lock (Not shown. See page 9)
S39044400 Valve Handle Repair Kit (not shown)
4
5
3
1
2
9
6
8
7
11 10
ITEM NO. PART NO. DESCRIPTION QTY.
1 S17054400 5/16” X 1” UNF GR5 Bolt 4
2 S17053900 5/16” x 1-1/4” GR5 Bolt 4
3 S17030900 5/16” Regular Lock Washer 4
4 S39053100 Honda 240 Engine 1
5 S40081800 Pump Mount 1
6 N/A* Jaw Coupler, 1” Bore 1
7 N/A* Jaw Coupler, 1/2” Bore 1
8 N/A* Rubber Spider 1
9 S40034300 1/2” SQ. x 1-1/2” SQ. Key 1
10 S39070900 Pump, 16 GPM 1
11 S17020700 5/16”-18 UNC, Nylock Nut 4
ENGINE/PUMP ASSEMBLY BREAKDOWN
