ASSEMBLY INSTRUCTIONS
Page 7

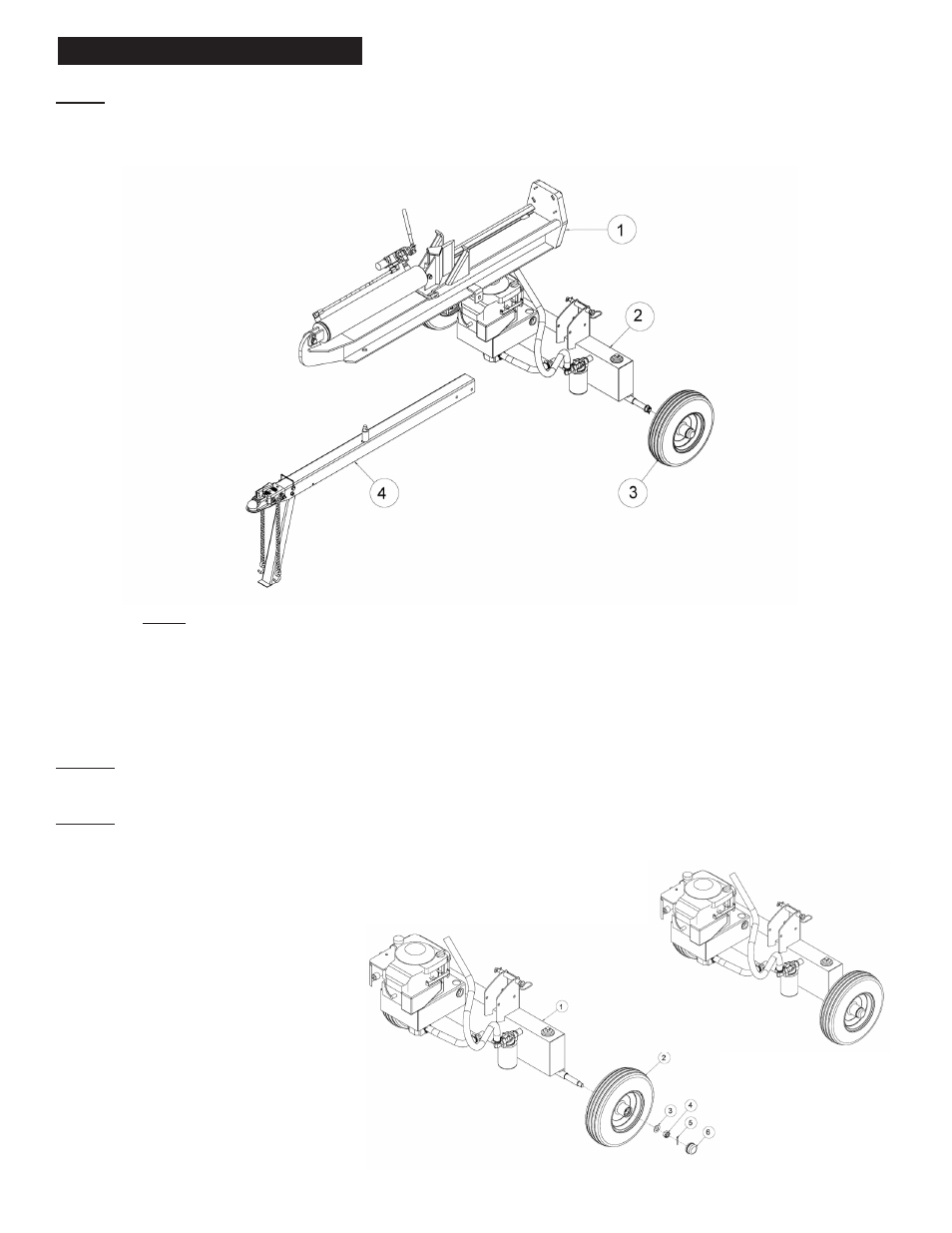

ITEM NO.
DESCRIPTION
QTY.
1
Beam Assembly
1
2
Tank/Engine Assembly
1
Tank/Engine Assembly (CA)
1
3
Tire and Wheel Assembly
2
4
Tongue Assembly
1
-
Hardware Kit (not shown)
1
STEP 1: Remove all the components from the shipping container. Inspect each piece for shipping damage. If any part
is damaged, contact your dealer or delivering carrier.
STEP 2: Attach the two wheels (2) to the tank assembly (1) wheel spindles using the 3/4” light flat washers (3), 3/4” NF
slotted nuts (4), 1/8” x 1-1/2” cotter pins (5) and the hub caps (6). These items are in the hardware package.
Tighten the slotted nuts and make sure the wheels rotate freely.
ITEM NO. DESCRIPTION
QTY.
1
Tank Assembly
1
Tank/Assembly (CA)
1
2
Wheel Assembly
2
3
3/4” Light Flatwasher
2
4
3/4” Slotted Nut
2
5
1/8” x 1-1/2” Cotter Pin
2
6
Hub Cap
2
NOTE:
To order replacement
parts, see pages 9-10.
NOTE:
This log splitter was partially assembled at the factory. To complete assembly, follow the step-by-step
instructions below through page 9.
Refer to the drawings and replacement parts list should it become necessary to disassemble the unit for
repair or replacement of parts.
