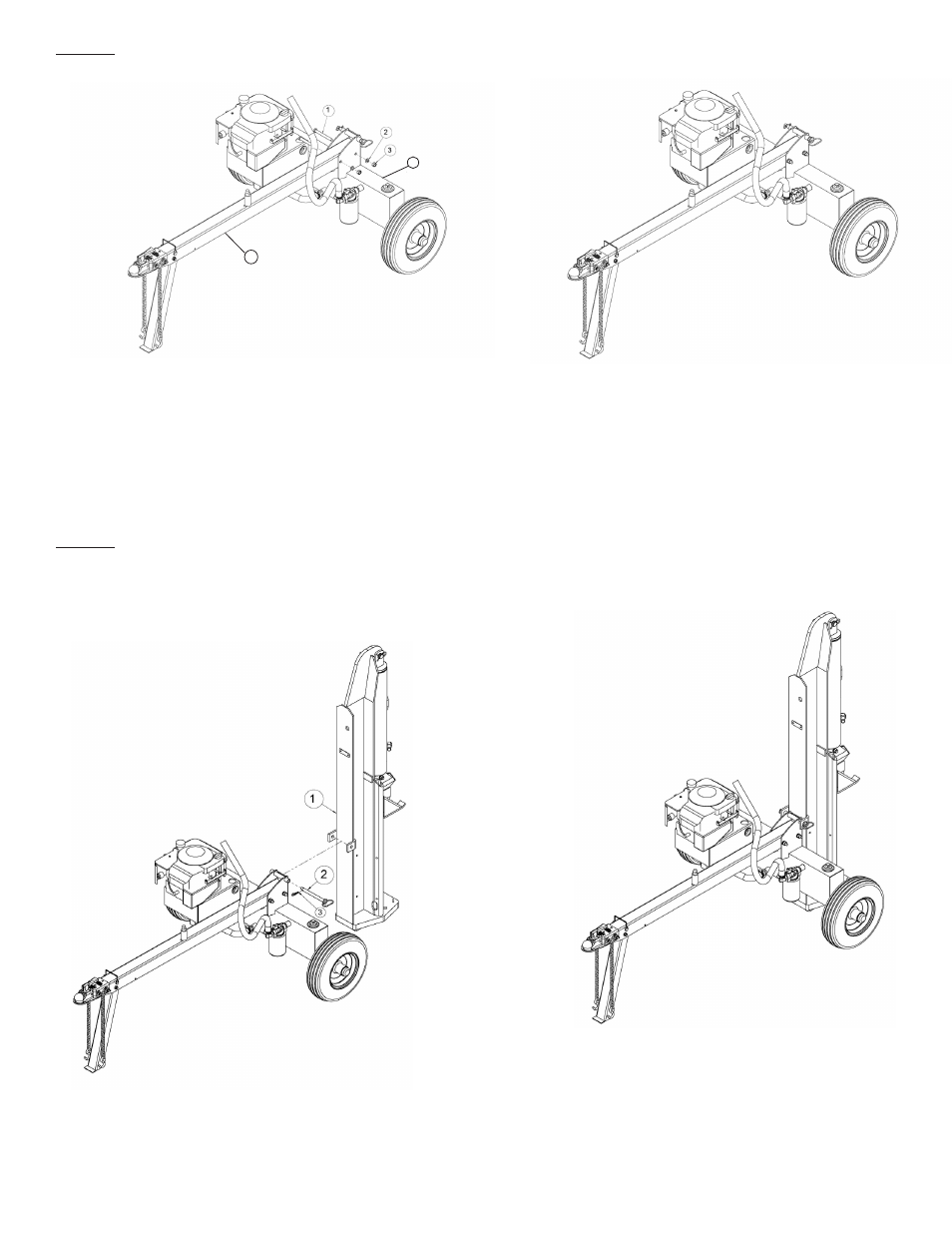

STEP 3: Attach the tongue assembly (5) to the tank assembly (4) using two 1/2” NC x 4-1/2” hex cap bolts (1), two 1/2”
lock washers (2) and two 1/2” hex nuts (3). Tighten.
ITEM NO.
DESCRIPTION
QTY.
1
Beam Assembly
1
2
Pivot Pin
1
3
1/2”-3/4” R Clip Pin
1
STEP 4: Stand the beam (1) up on end. Two people may be needed for this step to ensure safety. Make sure that the
beam is stable and on a level surface. Remove the pivot pin (2) and clip pin (3) from the tank assembly. Roll
the tongue/tank assembly into position between the two tabs on the beam (1). Slide the pivot pin (2) through
the aligned holes and lock in place with the clip pin (3).
4
5
ITEM NO DESCRIPTION
QTY.
1
1/2” NC x 4-1/2” Bolt
2
2
1/2” Lock Washer
2
3
1/2” NC Hex Nut
2
4
Tank Assembly
1
Tank Assembly (CA)
1
5
Tongue Assembly
1
