ASSEMBLY INSTRUCTIONS
Page 7

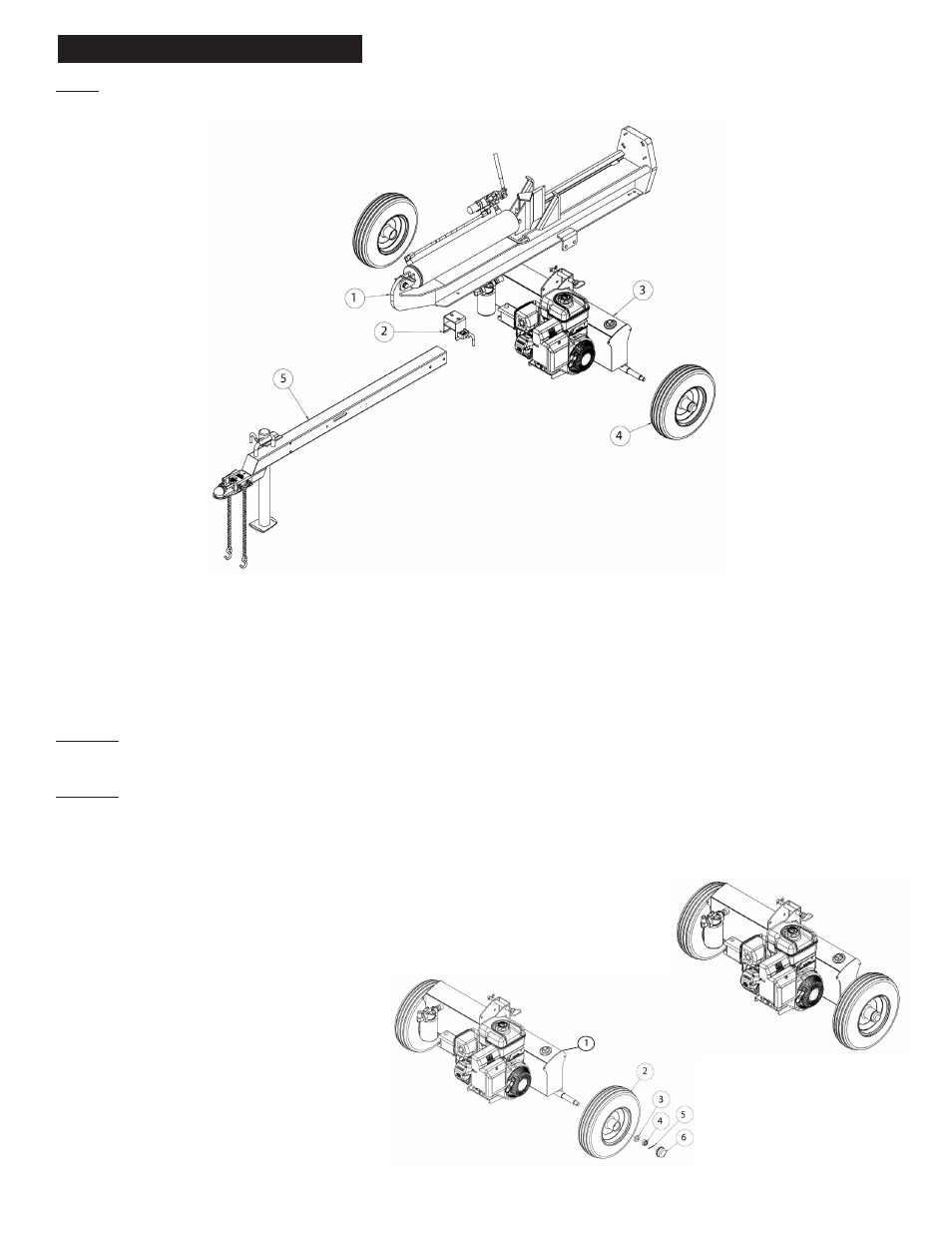

NOTE: This log splitter was partially assembled at the factory. Refer to the drawings and parts list should it become
necessary to disassemble the unit for repair or replacement of parts
STEP 1: Remove all the components from the shipping container. Inspect each piece for shipping damage. If any part is
damaged, contact your dealer or delivering carrier.
STEP 2: Attach the two wheels (2) to the tank assembly (1) wheel spindles using the 3/4” light flat washers (3), 3/4” NF
slotted nuts (4), 1/8” x 1-1/2” cotter pins (5) and the hub caps (6). These items are in the hardware package.
Tighten the slotted nuts and make sure the wheels rotate freely.
ITEM NO. DESCRIPTION QTY.
1 Tank Assembly 1
2 Wheel Assembly 2
3 3/4” Light Flat Washer 2
4 3/4” Slotted Nut 2
5 1/8” x 1-1/2” Cotter Pin 2
6 Hub Cap 2
O/L- Obtain locally. Common fasteners available
through hardware and farm stores.
1 Beam Assembly 1
2 Beam Lock Assembly 1
3 Tank Assembly 1
4 Tire and Wheel 2
5 Tongue Assembly 1
ITEM NO. DESCRIPTION QTY.
