O/L- Obtain locally. Common fasteners available through
hardware and farm stores.

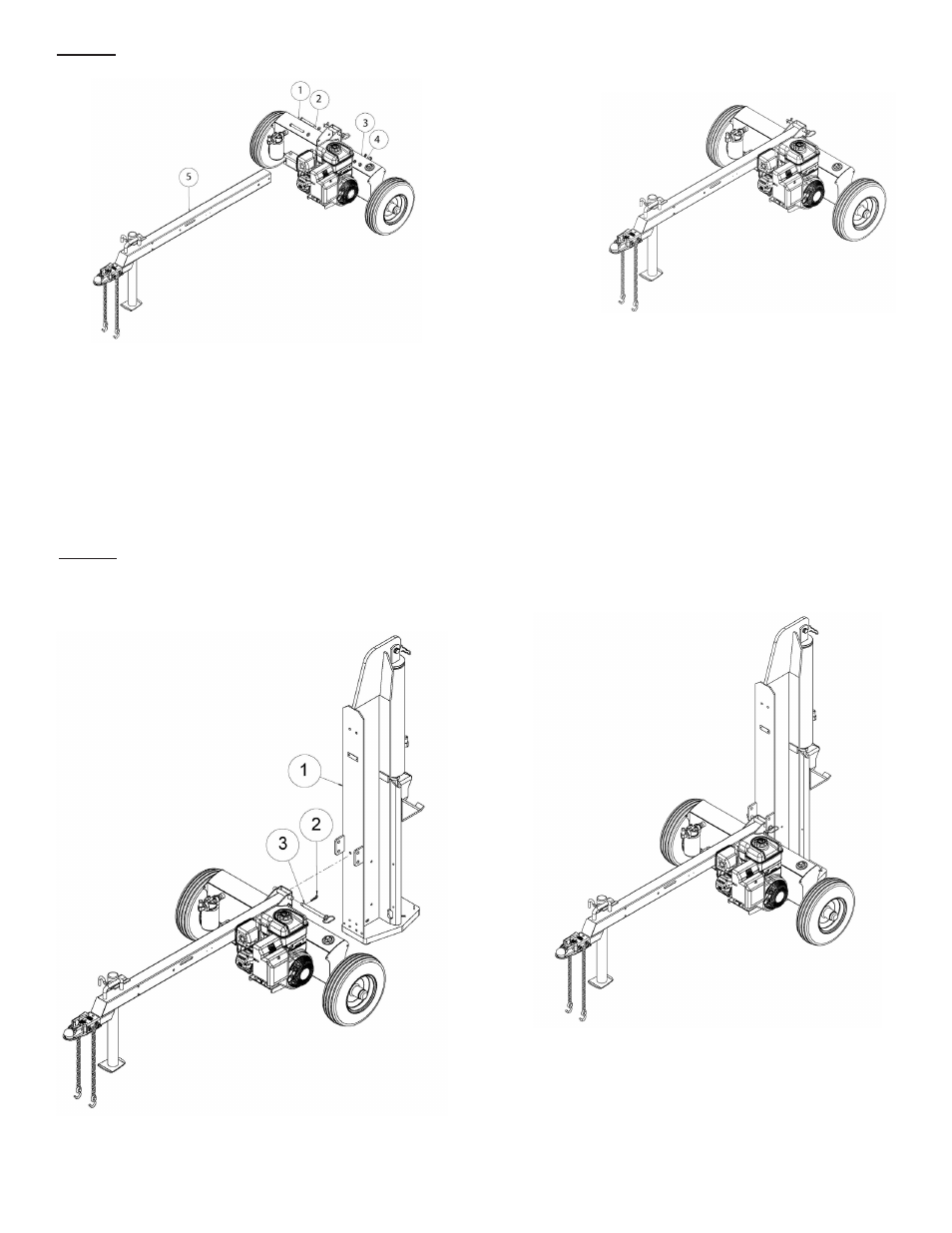

STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2”
lock washers (3) and two 1/2” hex nuts (4). Tighten.
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
STEP 4: Stand the beam (1) up on end. Two people may be needed for this step to ensure safety. Make sure that the
beam is stable and on a level surface. Remove the pivot pin (3) and clip pin (2) from the tank assembly. Roll
the tongue/tank assembly into position between the two tabs on the beam (1). Slide the pivot pin (3) through
the aligned holes and lock in place with the clip pin (2).
ITEM NO. DESCRIPTION
QTY.
1
Beam Assembly
1
2
1/2”-3/4” R Clip Pin
1
3
Pivot Pin
1
ITEM NO. DESCRIPTION
QTY.
1
Tank Assembly
1
2
1/2” NC x 4-1/2 Hex Bolt 2
3
1/2” Lock Washer
2
4
1/2” NC Hex Nut
2
5
Tongue Assembly
1
