FLOODLIGHTING
1192 COOPER LIGHTING
MCGRAW-EDISON ®
• Formed aluminum flush
draw-action latches offer
easy access to lamp
compartment without
tools and maintain
integrity of seal when
closed
• Die-cast aluminum with
integral cast hinges for
removal without tools
• Heat- and impact-resistant
tempered glass. Lens is
mounted flush with door
surface to reduce wind
drag and prevent dirt or
moisture from
accumulating
• Computer designed
reflector systems deliver
superior beam control
and efficiency.
• Door gasket is closed-cell
silicone, providing
maximum protection of
interior components from
the elements
• Available in two (2)
mounting variations.
Slipfitter: Die-cast
aluminum integral
slipfitter mounts on 2 3/8"
to 3" O.D. tenon. Yoke:
Heavy-duty (.25" minimum
thickness) steel yoke
provides flexibility in
mounting and aiming
from a variety of surfaces
• Approximate net weight:
71 lbs. (32 kgs.)
ALF
ACURA LARGE
FLOOD
1 0 0 0 - 1 5 0 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
L A R G E S L I P F I T T E R - , O R
Y O K E - M O U N T E D
F L O O D L I G H T
NOTES: 1 All lamps are mogul-base. 2 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering
information. 3 Multi-Tap ballast is 120/208/240/277V wired 277V. Triple-Tap ballast is 120/277/347V wired 347V. 4 Available in Metal Halide only. 5 Available in High
Pressure Sodium only. 6 Add as suffix in the order shown. 7 Order separately, replace XX with color suffix. 8 Vertical Louvers must be used with vertical lamp
positions. 9 Horizontal Louvers must be used with vertical lamp positions. 10 Specifications and dimensions subject to change without notice.

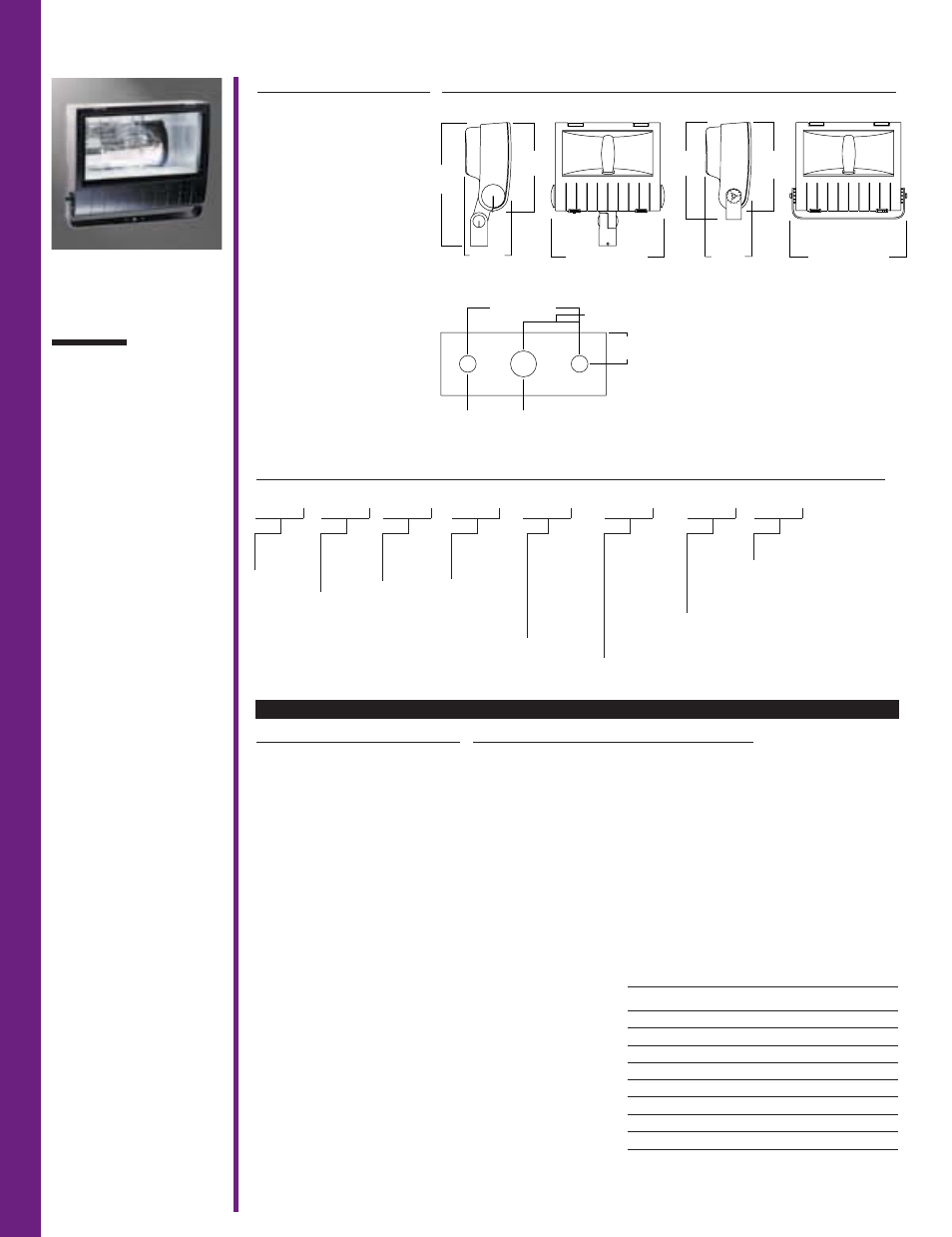

D I M E N S I O N S D E S C R I P T I O N
The McGraw-Edison Acura
floodlight utilizes a
soft-cornered aerodynamic
design to provide excellent
EPA ratings and an
aesthetically pleasing
appearance. Black polyester
powder coat finish assures
corrosion resistance and
long-lasting aesthetics.
U.L. listed for 40°C ambient
temperature operation.
CSA certified.
The Acura features a variety
of optical designs which
deliver maximum beam
control for architectural
facades, signage,
monuments, airport aprons
and building perimeters.
Options 6
F=Single Fuse (120, 277 or 347V)
FF=Double Fused (208, 240 or 480V)
Q=Quartz Restrike
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included
Accessories 7
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1201=NEMA Twistlock Photocontrol—347V
VS/AL=Vandal Shield
WG/AL=Wire Guard
IL/AL/VET=Vertical Internal Louver Kit
8
IL/AL/HOR=Horizontal Internal Louver Kit 9
TV/AL-XX=Top/bottom Visor
SV/AL-XX=Side Visor
SAB-XX=Steel Angle Bracket for Yoke
RAB-XX=Right Angle Pipe Bracket for Slipfitter
TYS-XX=Trunnion and Yoke Slipfitter Adapter
E.P.A. 3.7
O R D E R I N G I N F O R M A T I O N
S A M P L E N U M B E R : A L F - Y- 1 0 0 0 - M H - 1 2 0 - 5 5 - B K
Product
Family
ALF=Acura
Large
Flood
Lamp
Wattage
1
1000=1000W
1500=1500W
Mounting
Method
F=Slipfitter
Mount
Y=Yoke
Mount
Lamp Type
MH=Metal
Halide
HPS=High
Pressure
Sodium
Voltage 2
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
MT=Multi-Tap
3
TT=Triple-Tap 3
Beam
Spread
13=1x3
4
14=1x4 5
24=2x4 4
35=3x5 5
55=5x5 Cutoff 5
62=6x2
65=6x5 Cutoff
4
66=6x6
67=6x7
Colors
AP=Grey
BZ=Bronze
BK=Black
WH=White
DP=Dark Platinum
GM=Graphite Metallic Options &
Accessories
(See Below)
12 1/4"
[324mm]
23 1/4"
[591mm] 31 1/4"
[794mm]
29 1/4" [743mm] 12 3/4"
[324mm]
30 1/2" [775mm]
23 1/4"
[591mm]
26 7/8"
[683mm]
Slipfitter Mount Yoke Mount
Yoke Drilling Pattern
3 3/4" [95mm]
1 7/8" [48mm]
9/16" [14mm]
dia. hole (2)
7/8" [22mm]
dia. hole
1 1/16"
[27mm]
B e a m A v a i l a b i l i t y + L a m p P o s i t i o n
Distribution Lamp Position
Type (HxV) HPS MH
6x7 V V
6x6 V V
6x5 Cutoff H
6x2 H H
5x5 Cutoff H
3x5 V
2x4 V
1x4 V
