Solvline COM Port Redirector - Manual (Page 14)

COM Port Redirector Chapter 3. Adding / Removing Ports
3-9 3-9

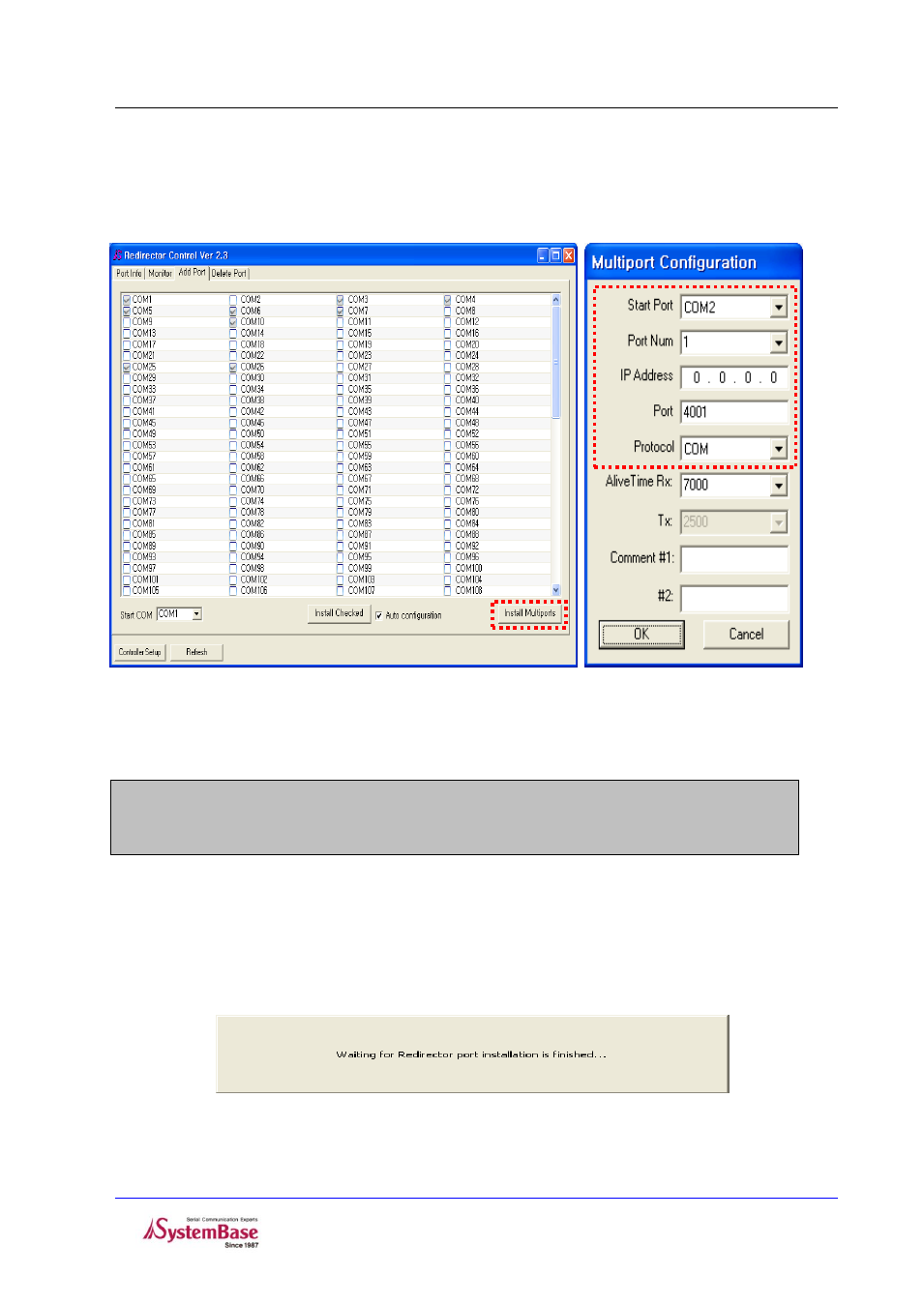

2. Install Multiports
- A user can create up to 32 ports from the start port
- Click “Install Multiports”
- Set up IP Address, port, protocol in “Multiport Configuration” and click “OK” button.
Device Driver Installation
 When installation starts by selecting either “Install Checked” or “Install Multiport”, the following
message is displayed until installation is complete.
 When the installation is complete, verify the port installed in “Port Info” tab.
COM port number that can be installed is listed in “Start Port”, and the number of ports as
assigned in “Port Num” will be installed from the Start Port.
