Solvline PCIe - Manual (Page 57)

57
Multi-8/LPCIe Ver1.2
- COMBO Model

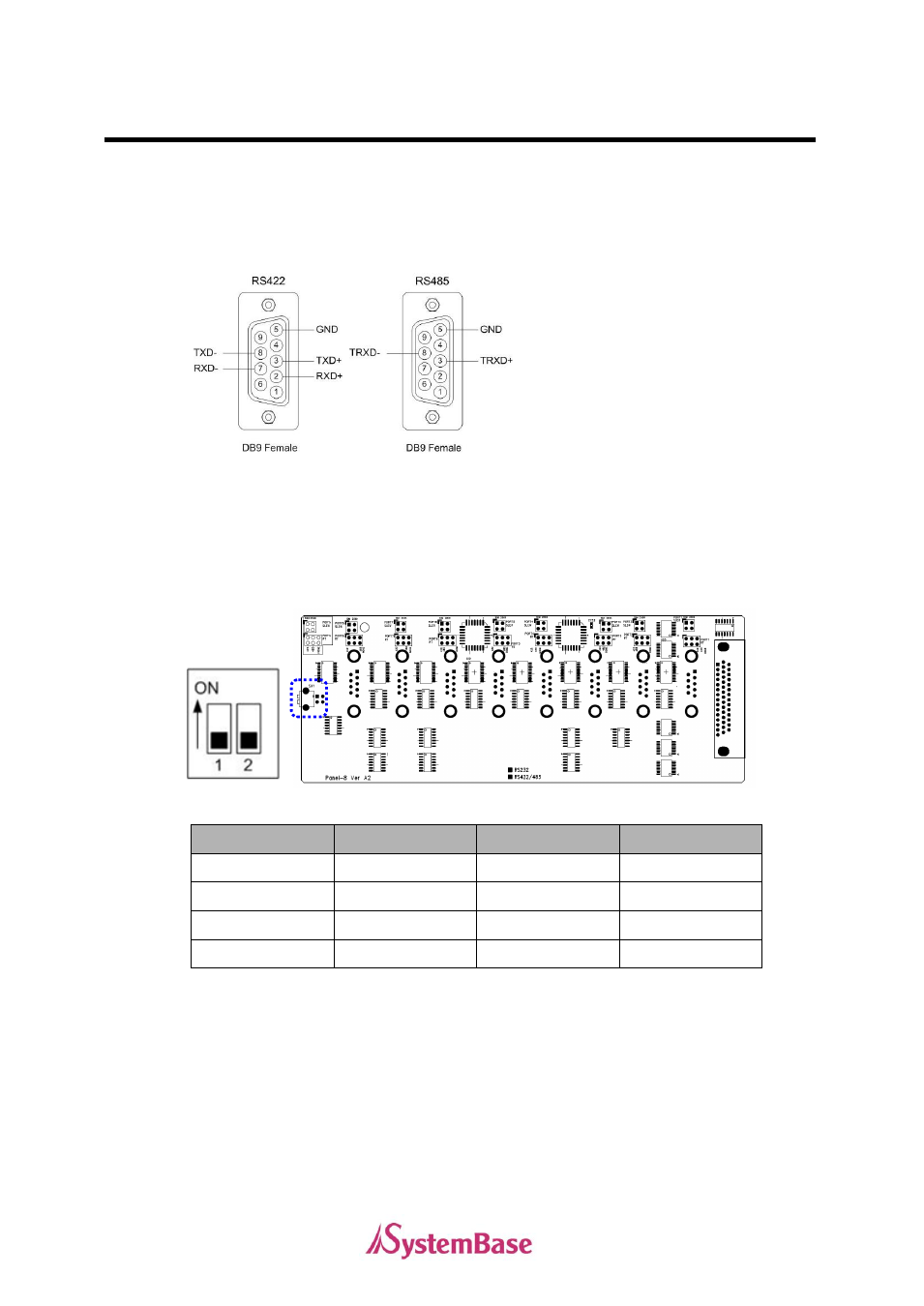

1. 9 Pin Connector (Female)
2. Panel Switch Setting
1 2 Interface Mode
OFF OFF RS422 Point-to-Point
OFF ON RS422 Multi-Drop
ON OFF RS485 Non-Echo
ON ON RS485 Echo
