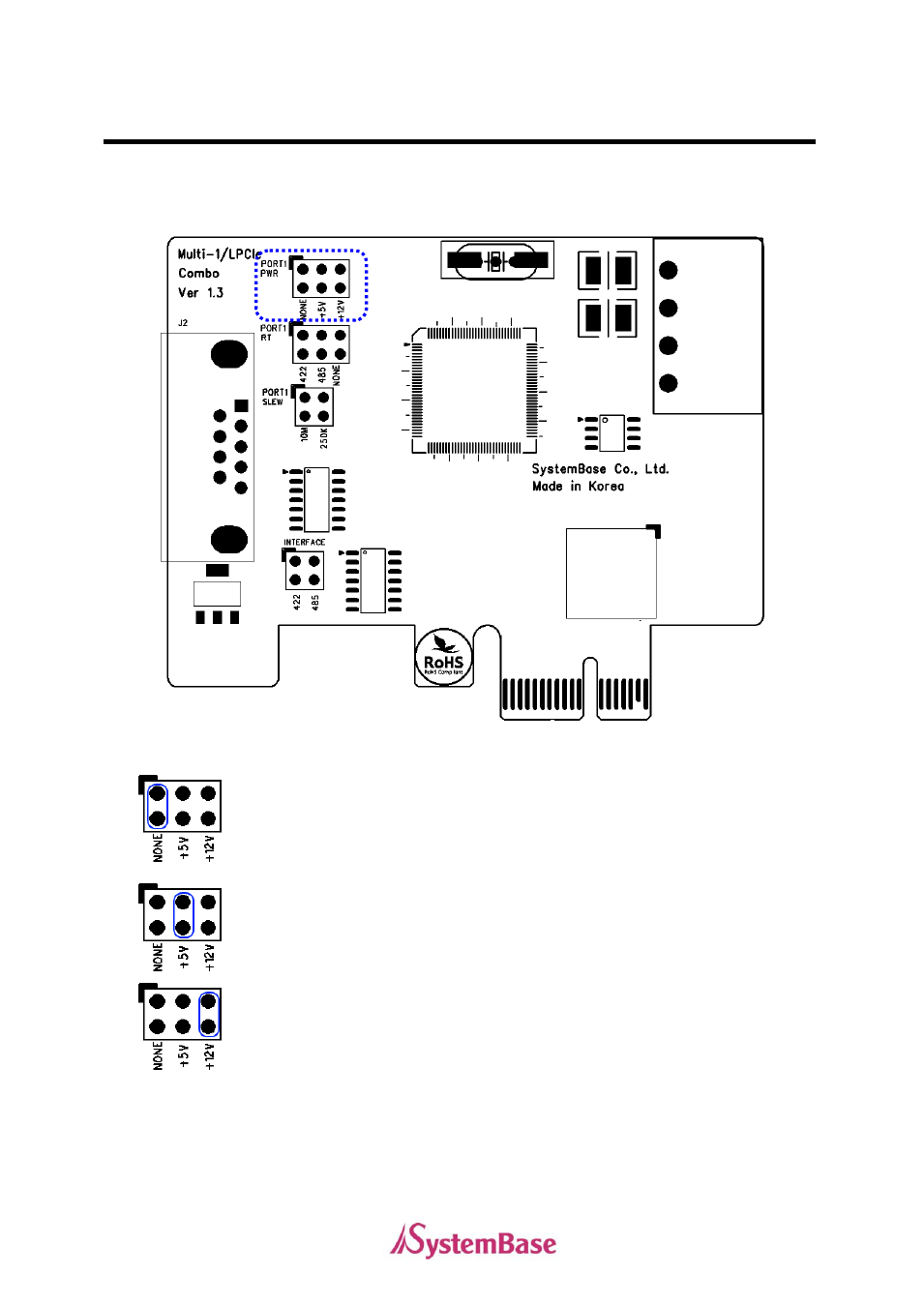

4. Jumper Setting for External Power Supply (COMBO)

NONE: Do not supply external power and use pin 9 (Default)

+5V: Use pin 9 for supplying +5V external Power.

+12V: Use pin 9 for supplying +12V external Power.
