MANL:INS:SH:X:XX
August 8 ,2013
Rev 25
5-1
5

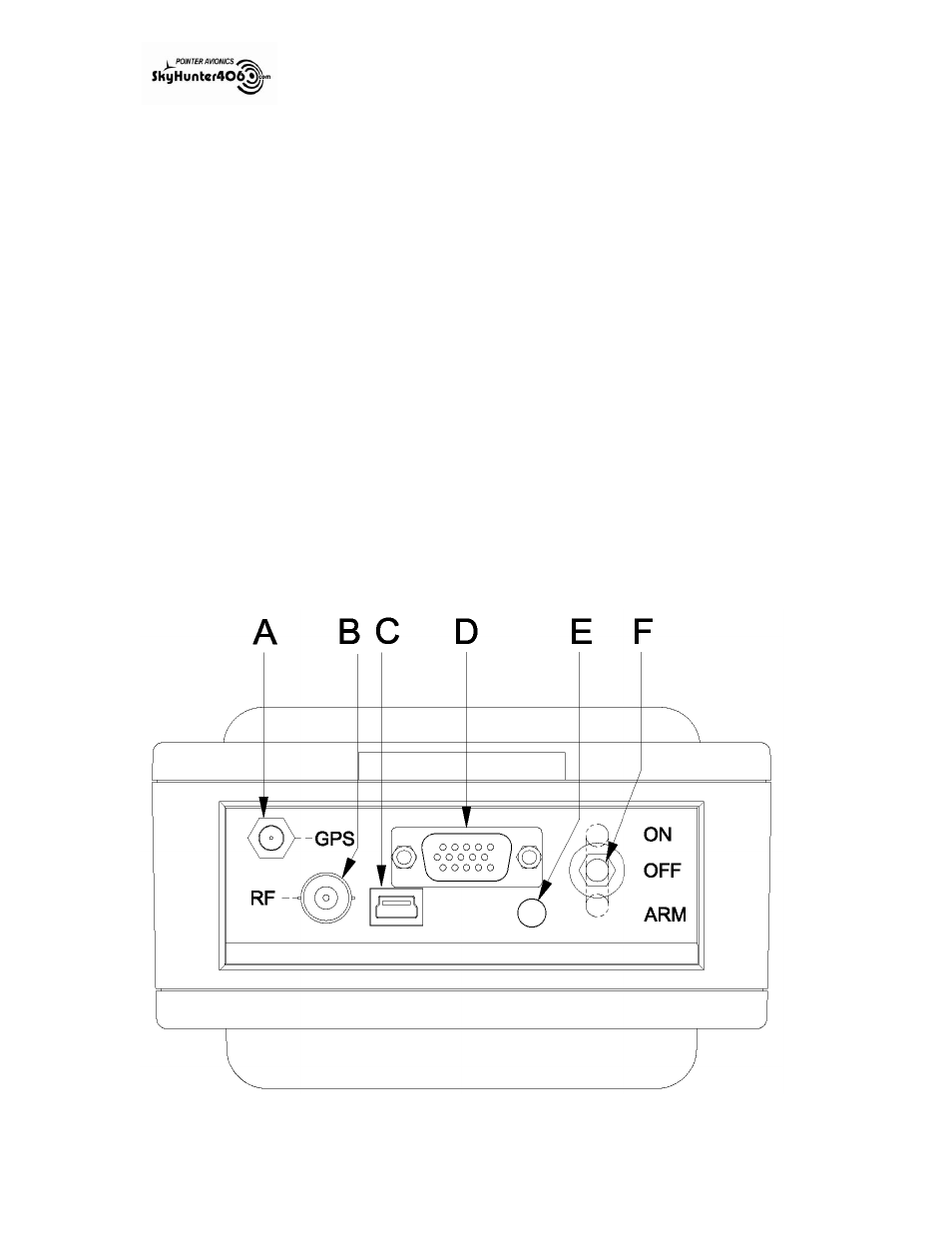

INTERFACES
5.1
SMA CONNECTOR (A)
The SMA Connector is used to connect the external GPS antenna.
5.2
BNC CONNECTOR (B)
The BNC connector is used to connect the external transmitting antenna.
5.3
USB CONNECTOR (C)
Micro USB connector is used for web testing and programming.
5.4
HIGH DENSITY DB15 CONNECTOR (D)
The HD DB 15 connector is used to interface with the SkyKey as well as the connection to the
remote switch.
5.5
VISUAL INDICATOR MULTI COLOUR LED (E)
The Visual Indicator on the SkyHunter 406
TM
ELT shows status and error codes. See Section 7 for
LED coding.
5.6
LOCKING TOGGLE SWITCH (F)
The Logging Toggle Switch allows for “ON” “OFF” and “ARM” operation.
