NOTES: 1. Transmitter may be
rotated longitudinally
"Remote" Cable Connector to mount, but must
FACE FORWARD as
shown by the arrow.
Master switch
Clip
2. Mounting surface must
be flat and rigid over the
entire area and of
2024.23 AL ALY or
Whip Antenna Connector equivalent material.
#6 Pan Head machine screw, washer, and nut. (4 ea.
required.) All mounting hardware to be of suitable
aircraft quality.
ELT MOUNTING
BRACKET
Position hold down strap between center and
rear mounting screws.
It is important that the unit be mounted PARALLEL TO the longitudinal axis of the aircraft. DO NOT MOUNT THE UNIT
AT A DOWNWARD OR NEGATIVE ANGLE. (Fixed-wing aircraft only)

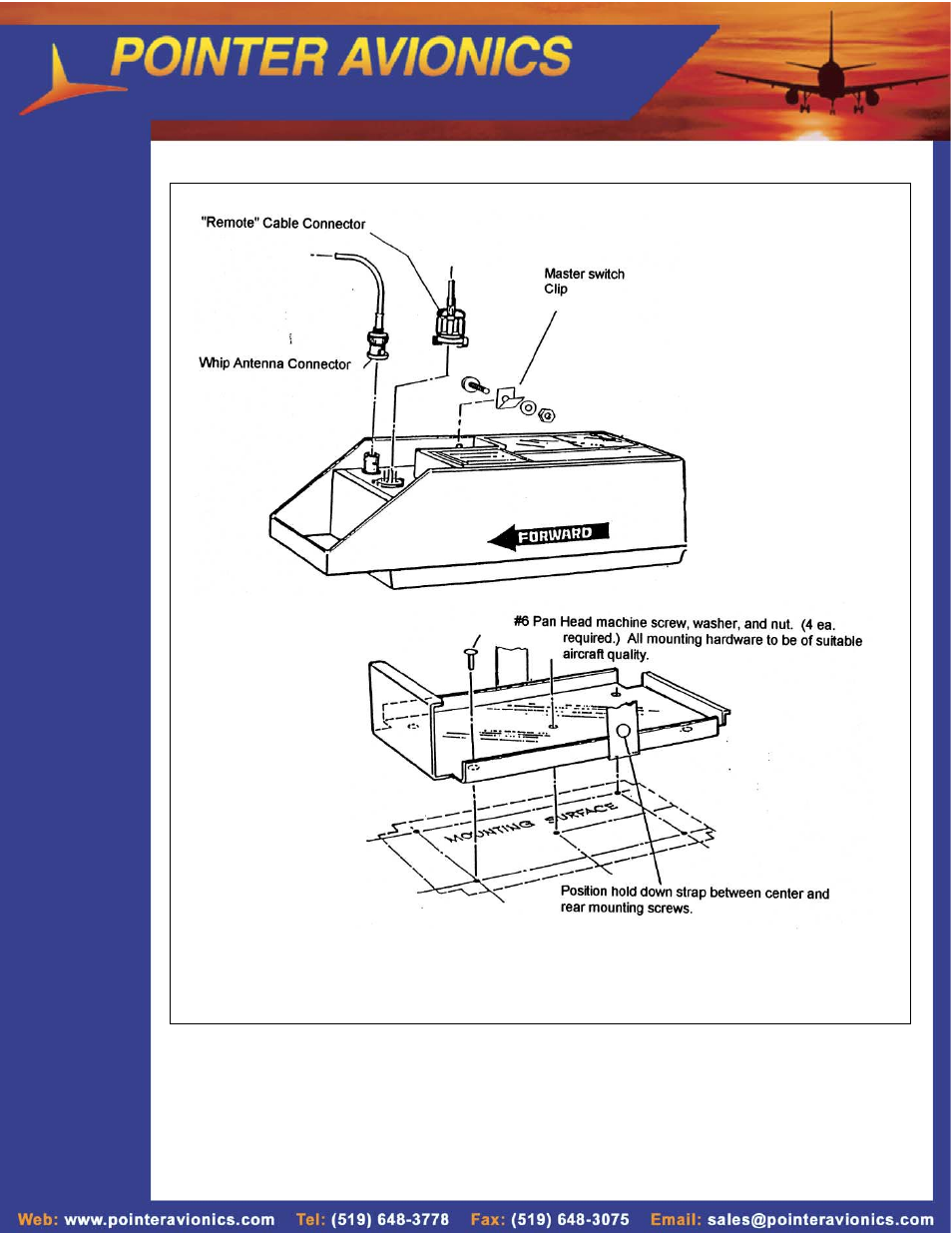

Figure 3. MOUNTING POINTER SENTRY IN FIXED WING AIRCRAFT
