Sigtronics 900116 User Manual
Page 2
1234.00
Adapter
Radio
Hand Mic
Intercom or MRIM-2 Cable
Speaker wires from
Intercom or MRIM-2
Bendix King (Relm BK Radio)
• DMH
• DMHX
• EMH
• EMV
• ENB
• GMH
• KFM
• LMH
Function
6 Pin
Sigtronics Wire Color
PTT HI
B
White
MIC LO
C
Black
PTT LO
C
White
MIC HI
D
Brown
EF Johnson
Challenger 7100 Series
Function
6 Pin
Sigtronics Wire Color
MIC LO
A
Black
PTT LO
A
White
MIC HI
B
Brown
PTT HI
D
White
Ericsson / GE
• Monogram MGM148
• Monogram MGM160 • Monogram MGM450
Function
6 Pin
Sigtronics Wire Color
MIC LO
A
Black
PTT LO
B
White
MIC HI
D
Brown
PTT HI
E
White
GME
• TX4800U
• TX4800UL
• TX4800V
Function
6 Pin
Sigtronics Wire Color
MIC LO
A
Black
PTT LO
A
White
MIC HI
B
Brown
PTT HI
D
White

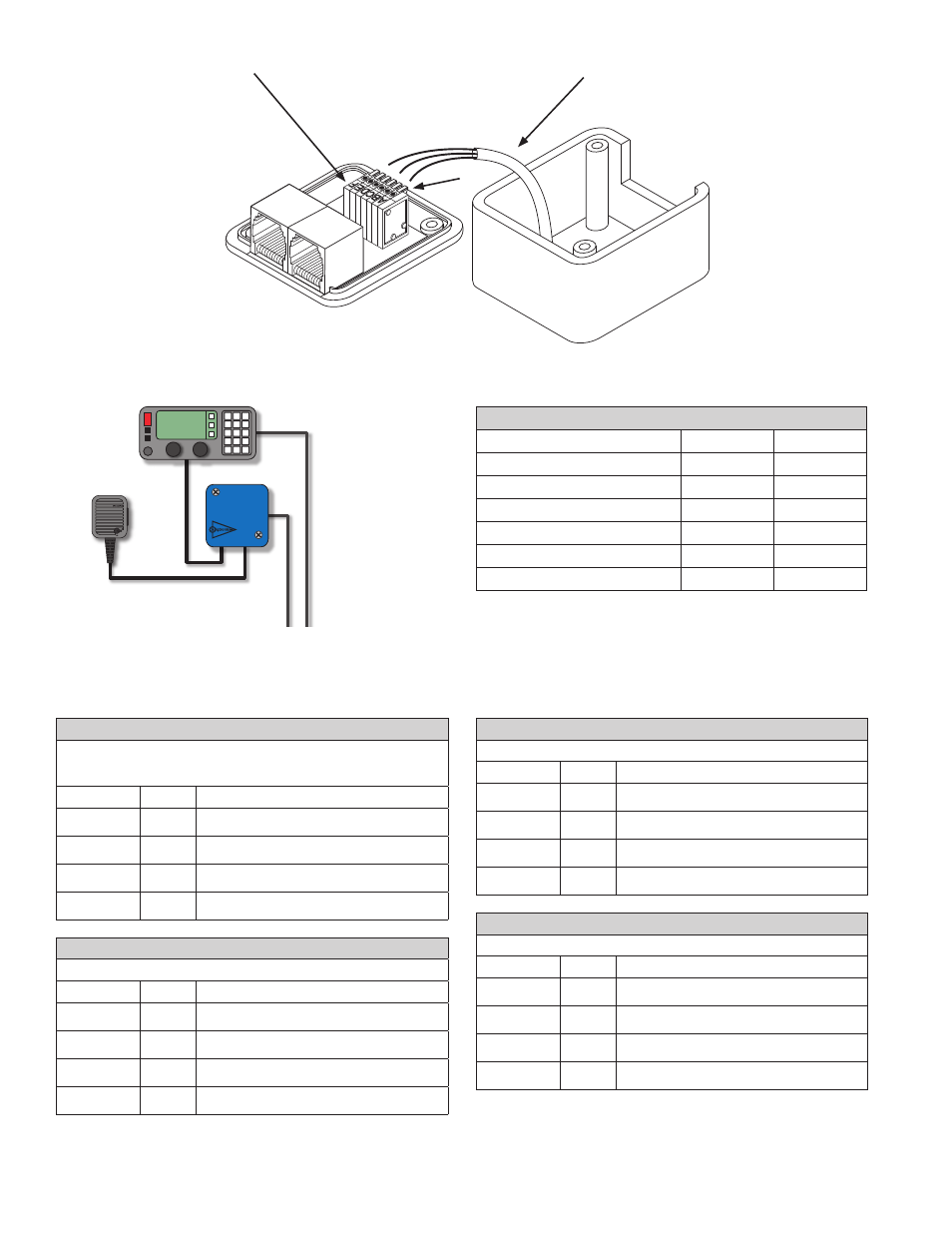

Telephone type jacks
Adapter lid
Adapter bottom
Terminal Block
A
Cable from Intercom or MRIM-2
Sigtronics Universal Mobile Radio Microphone Interface “Y” Adapter 6 Pin
Standard Equipment Included
Part Description
Part Number
Quantity
Adapter to Radio Cable — 6 Pin
100717
1
Box Cover Screws
100429
2
Box Mounting Screws
100452
2
Foam, Double Sided
100720
1
Tie Wrap
100450
1
Wire Grommet
100049
1
