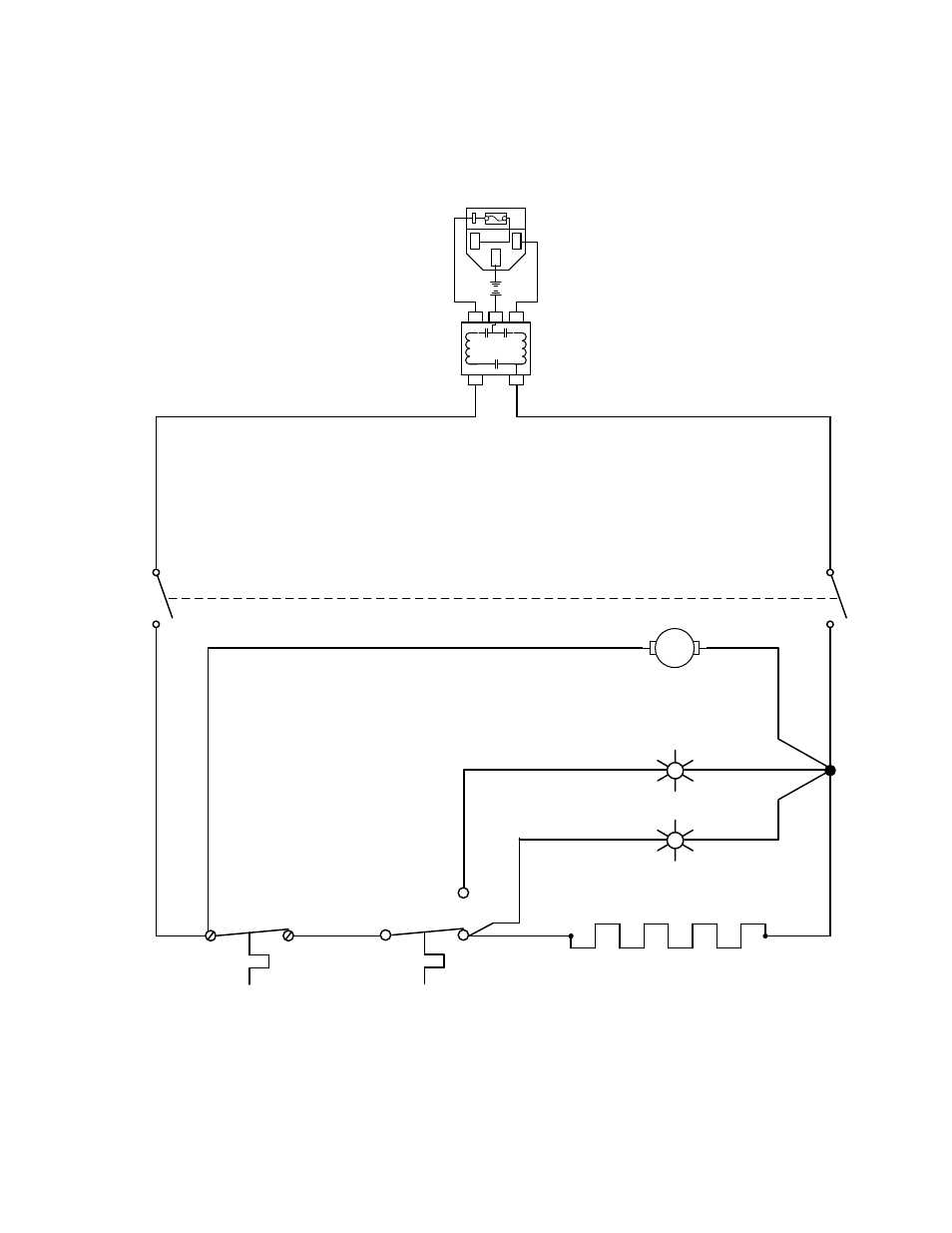

WIRE DIAGRAMS
SMO1E (1321F) 100-120V
9851479
2800502
EMI
FILTER
1 2
4
B
L
A
C
K
H
T
WHITE HT
TAN ULTRA HT TAN ULTRA HT
BLACK HT
B
L
A
C
K
H
T
BLACK HT
W
H
IT
E
H
T
W
H
IT
E
H
T
BLACK
BLACK
BLACK
BLACK
POWER
INLET
4200505
GREEN LIGHTED POWER SWITCH 7850570
TEMPERATURE
CONTROL
1750863
OTL
1750615
HEATING
INDICATOR
4450554
OTL
INDICATOR
4450553
550W 24 Ω
FAN
FAN MOTOR
4880527
