Sceptre X240-1920T - Manual (Page 18)

Page18 SCEPTRE X240

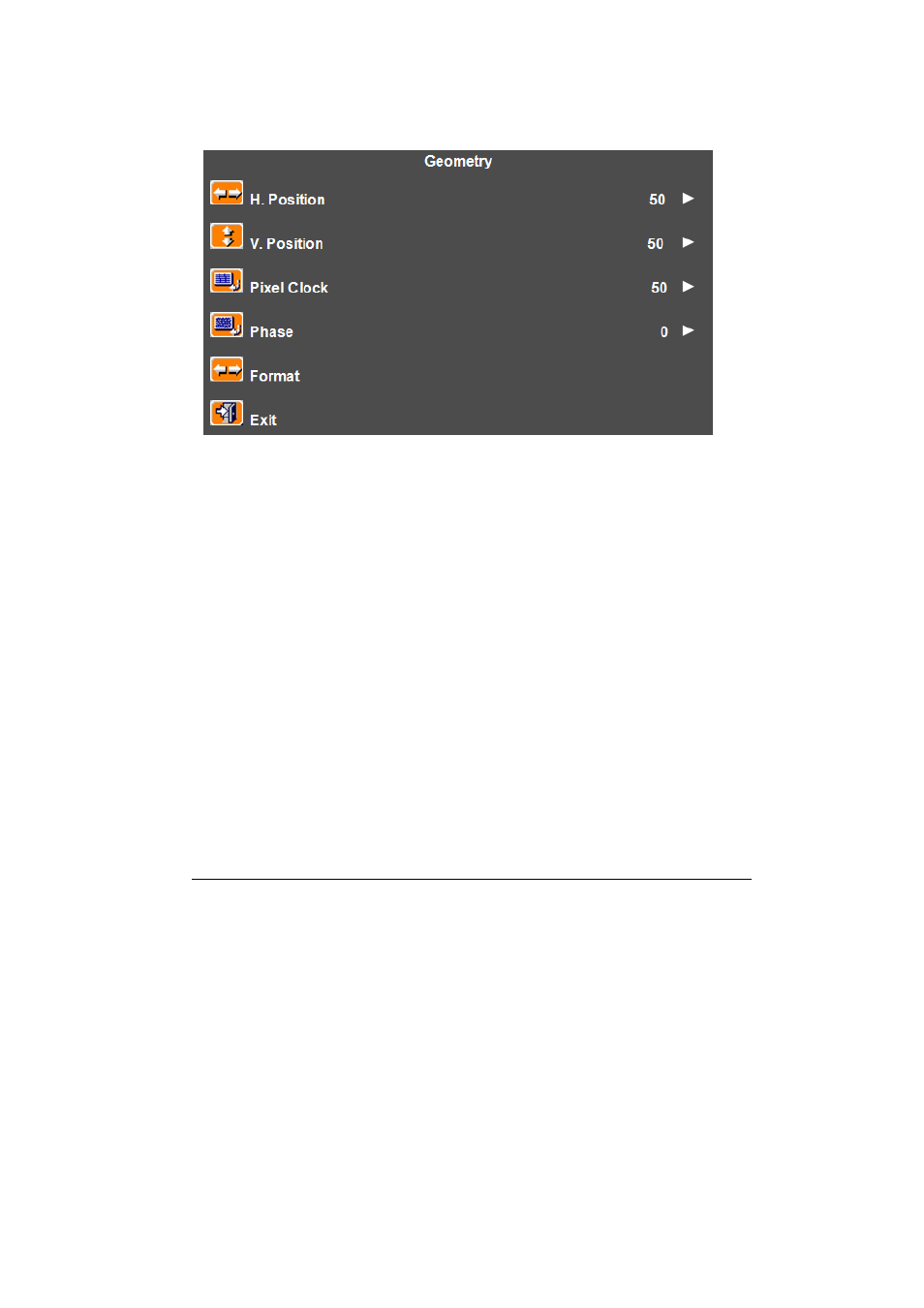

GEOMETRY
This function adjusts the screen’s image quality manually.
1. Press MENU to open the OSD then highlight GEOMETRY by pressing the CH▲ or CH▼
buttons.
2. Press MENU to enter the function.
3. Press the CH▲ or CH▼ buttons to select the option you want to adjust. Use MENU to enter
the option and VOL+ or VOL– buttons to adjust the values.
a. H-POSITION – This option moves the picture left or right.
b. V-POSITION – This option moves the picture up or down.
c. PIXELCLOCK – This option adjusts the video signal in a large increment to sync
with the PC.
d. PHASE – This option adjusts the video signal in a small increment to sync with
the PC.
e. FORMAT – This option adjusts the signal syncing compatibility of the LCD to
different types of resolutions while using VGA connection.
When using VGA
connection, you need to use this option for changing the resolutions below
then use AUTO ADJUST after changing the format option.
