- 12 -
www.SCEPTRE.com
SCEPTRE E32 LED HDTV User Manual
Identifying Front and Rear Panel

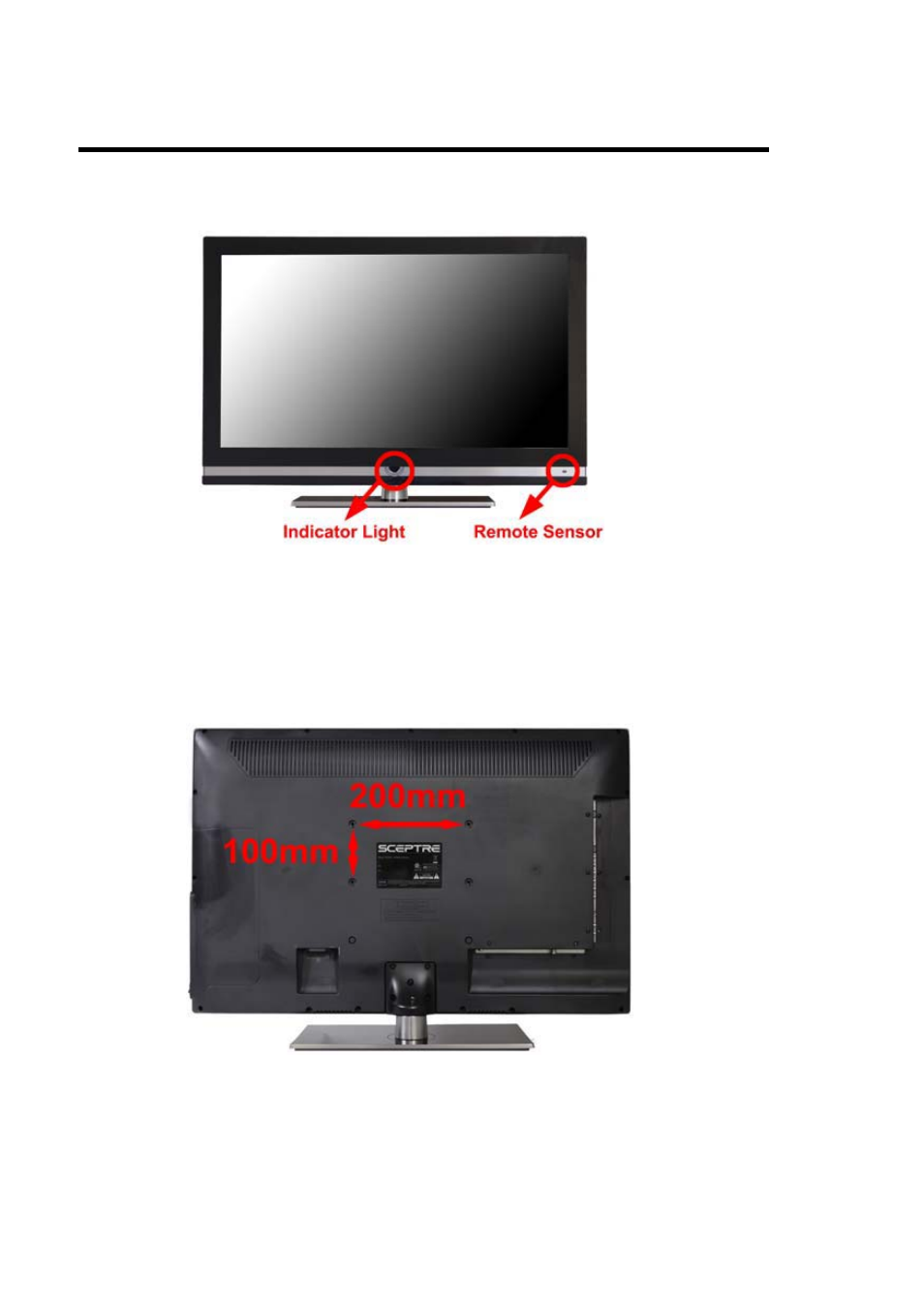

Front View
INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The
light turns blue when the TV is turned on. Because of the LED in the panel, the TV might take
10 – 12 seconds to power on.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification : 200mm x 100mm using screw size M4. Length of screw should not exceed
8mm. Please Note : The 8mm length of screw refers to how deep the screw can go inside the
mounting holes. When you’re buying screws, you should add the original 8mm to the thickness of
your mounting plate in order to get the total screw length.
