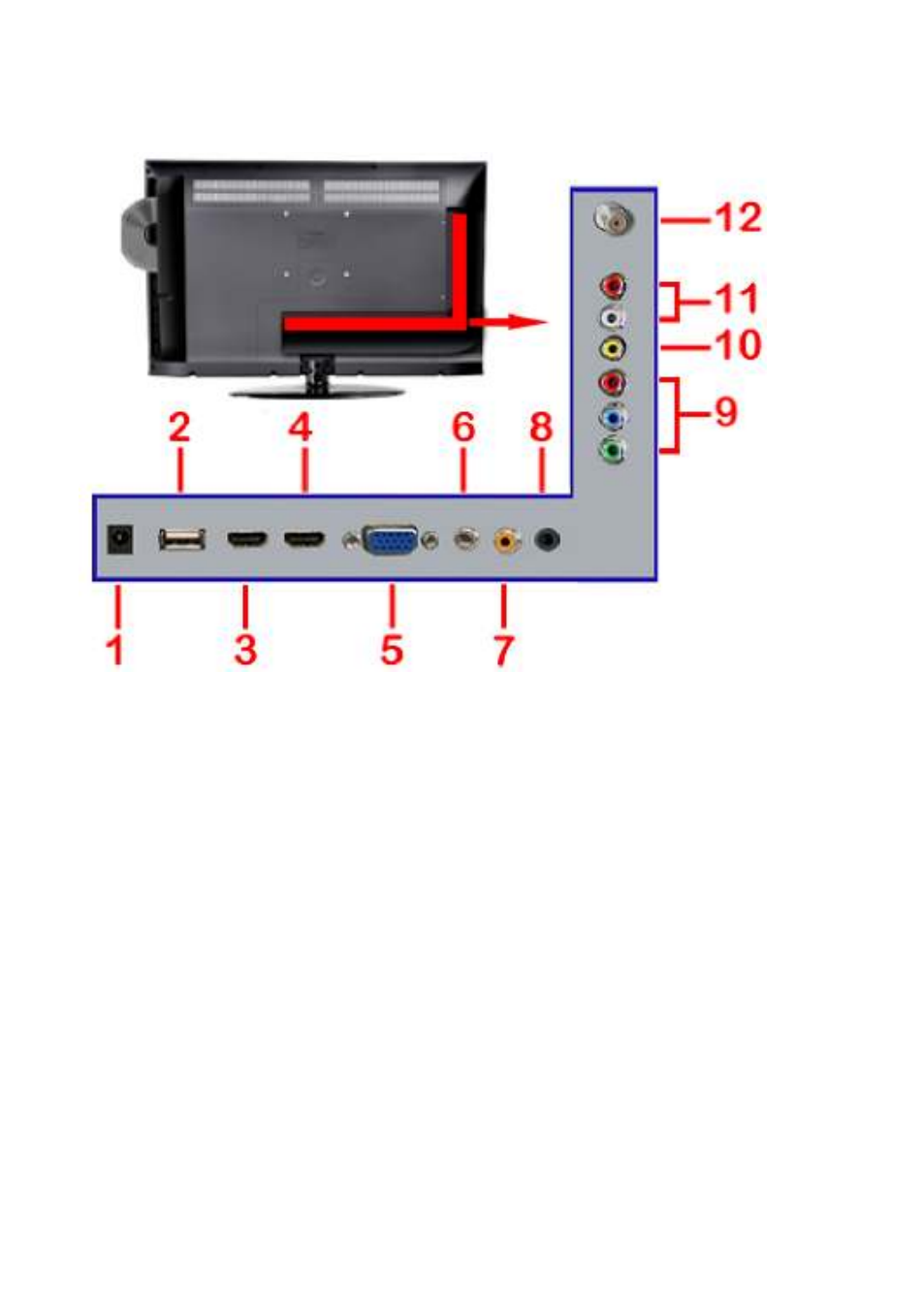

Rear View C Rear View C Rear View C Rear View Connections onnections onnections onnections
1. DC – This connection connects to an AC adapter for powering the HDTV.
2. USB – USB connects to USB flash drives for playing music and picture. The
USB port is also used for updating the HDTV’s firmware.
3. HDMI1 – HDMI connects to devices that use HDMI cable, such as Blu-ray or
HD DVD player, or HD cable / satellite set-top box. This connection port
receives pure digital audio and high definition signal through one single cable.
This port also can accept a HDCP video device for video.
4. HDM2 – Refer to HDMI1.
5. VGA - This connection port connects to a PC for video using VGA cable. Be
sure to connect your audio cable to the VGA Stereo input if you want sound
out of VGA video source.
6. Audio In - This connection port is for people who want to provide audio to the
HDTV when using a PC or a DVI video device. The sources use 3.5mm mini-
jack audio cable.
7. SPDIF - This connection port is used for sending out digital audio signals to
digital surround sound receivers. The orange (COAX SPDIF OUT) connector
sends out either bit-stream or PCM digital sound signal to a home theater
receiver with digital coax input.
8. HEADPHONE – This connection is for headphones to be attached to the
HDTV.
9. YPbPr – This connection port is for DVD players or satellite / cable set-top
boxes that use component cables. From left to right, connect green, blue,
and red for video, and then connect white for left channel audio, and red for
