INSTALLATION INSTRUCTIONS
Diverter
PAGE 03
P0388
SANTEC SANTEC
2
- From the underneath of the tub, screw the 1/2” female side of hose (2) with the rubber
washer (11) onto the diverter's outlet. Tighten it firmly.
- Slip the other end of the hose (3/8”) up through the guide tube (2),
DO NOT TAKE THE RUBBER WASHER (12) AND RED WASHER (13) OFF, UNLESS THE
UNIT IS READY FOR TRIM INSTALLATION.
- Slip the vinyl pull-tab cap onto the 3/8" of the hose. Make sure the cap is firmly inserted
onto the hose's coupler.
DO NOT TAKE THE CAP OFF UNLESS THE UNIT IS READY FOR TRIM INSTALLATION.
BOTH PULL-TAB CAP AND THE RUBBER BAND WITH THE WASHERS WILL HELP TO PREVENT THE HOSE FROM SLIPPING
DOWN UNDERNEATH OF THE TUB.
Diverter
SANTEC SANTEC
HOT WATER
SUPPLY COLD WATER
SUPPLY
From Diverter
to Hand shower
4-Port
Diverter
FROM HOT VALVE TO DIVERTER
FROM DIVERTER TO SPOUT
FROM COLD VALVE TO DIVERTER
Cold Valve Hot Valve

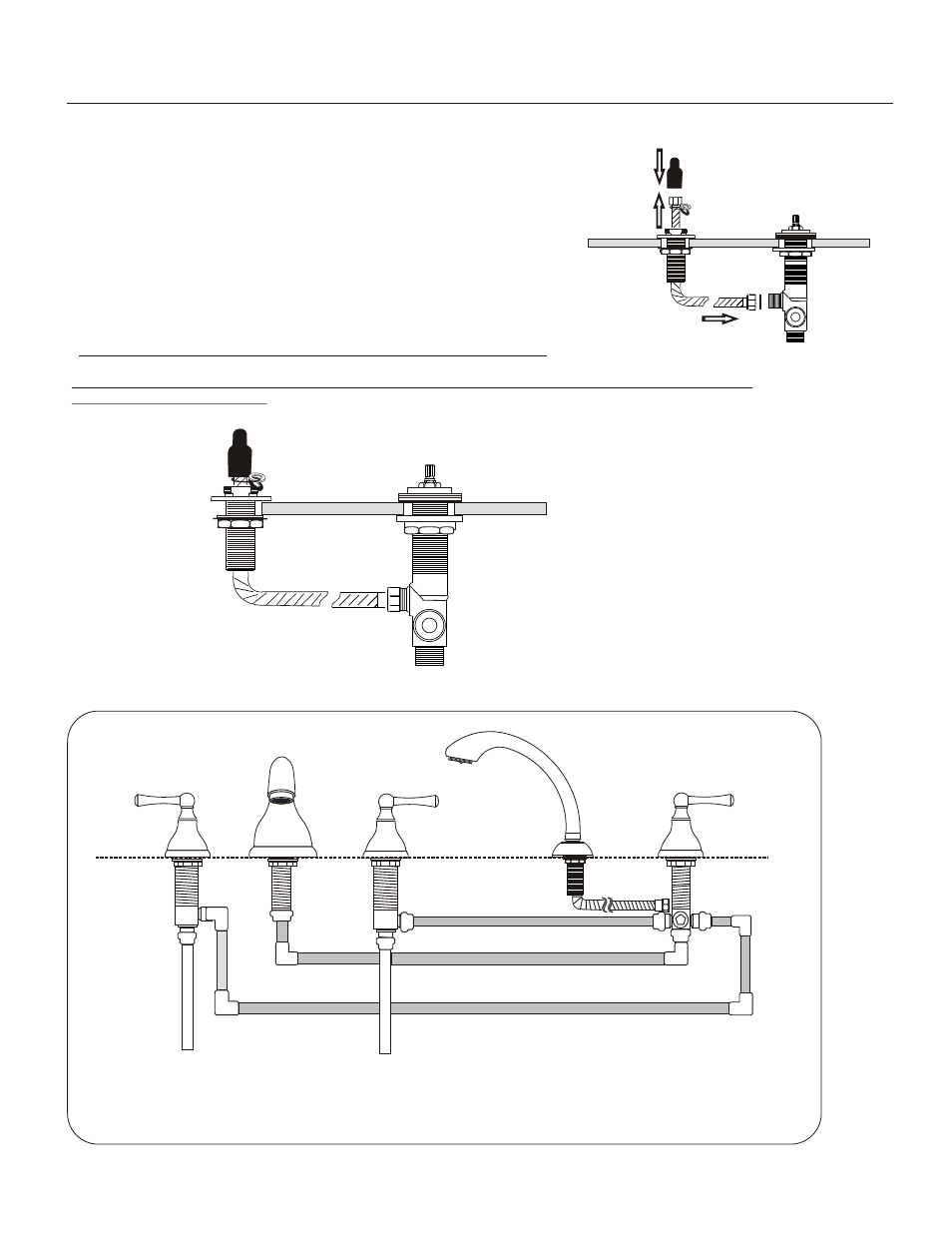

LAYOUT OF COMPLETELY INSTALLED ROMAN TUB FILLER WITH HAND HELD SHOWER
