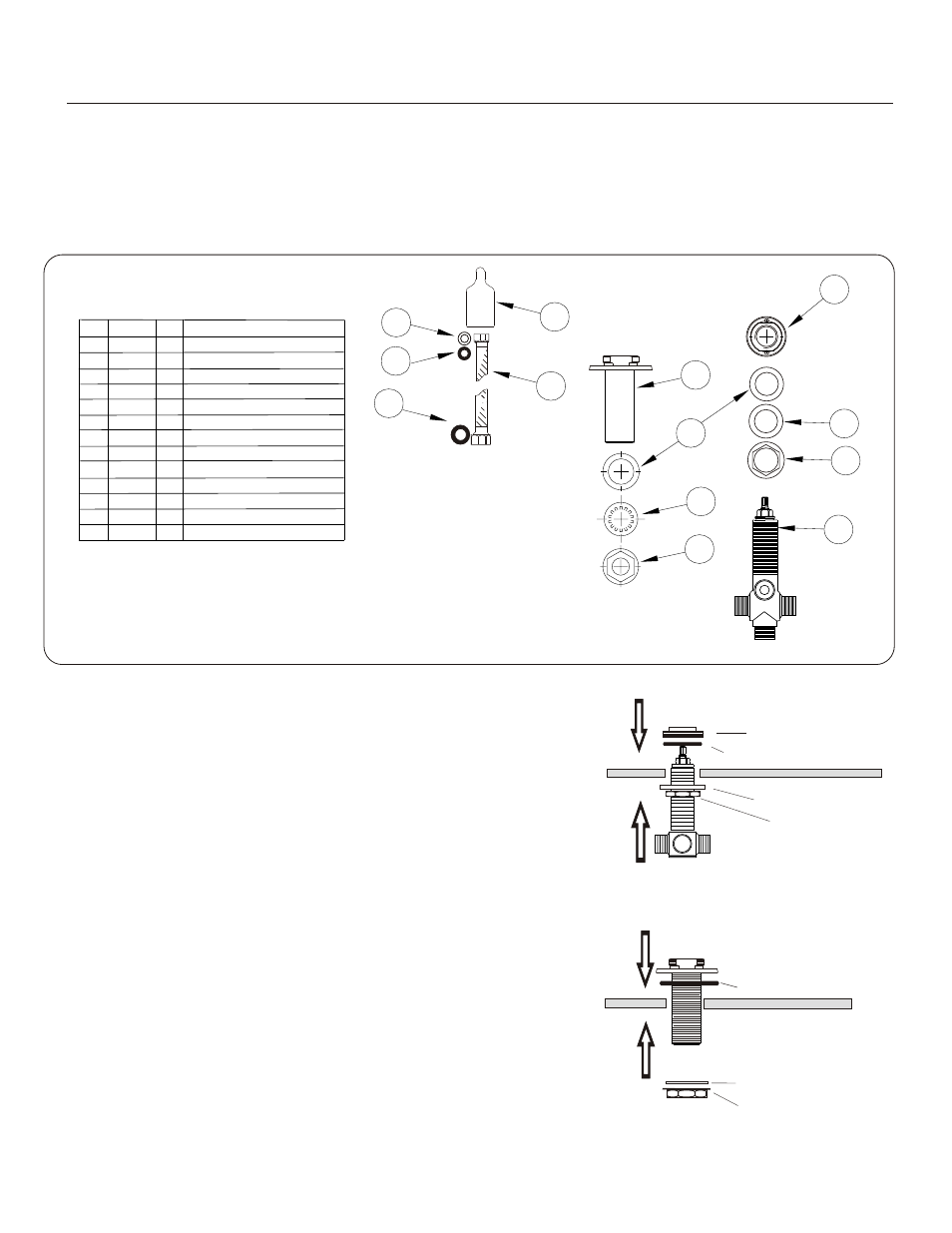

INSTALLATION INSTRUCTIONS
FLUSH BOTH SUPPLY LINES BEFORE INSTALLATION
AFTER FLUSHING, SHUT OFF BOTH SUPPLY LINES
MINIMUM HOLE SIZE FOR THE SPOUT AND HANDLE TRIM IS 1 1/4 ” AND MAXIMUM IS 1 1/2 ”
PAGE 02
13
12
11
11
12
13 PM-306
PM-336 1
1
1
Rubber washer for hose/valve inlet
Rubber washer for hose/shower inlet
Red washer for hose/shower inlet
SANTEC SANTEC
ITEM
1
2
3
4
5
6
7
8
9
10
P/N
HS-204
HS-600
HS-206
PM-400
PM-551
PM-309
PO500
PM-341
PM-332
PM-107
QTY
1
1
1
2
1
1
1
1
1
1
DESCRIPTION
Vinyl Pull-tab Cap
Hose, Handheld Shower
Flange Mount For Hand Spray
Rubber Washer
Crimped Metal Washer
Lock Nut
Diverter Valve Assembly
Lock Nut
Red Fiber Washer
Base Ring
10
9
4
8
5
6
7
2
1
3
DIVERTER INSTALLATION
1
- Unscrew the pre-assembled diverter base ring (10) from the diverter (7).
- Slip the diverter valve body (7) up from the bottom of the tub through the appropriate hole.
From tub top, screw base ring (10) back onto the diverter.
- Tighten the lock nut (4, 8, 9) firmly.
HAND SHOWER INSTALLATION
1
- Take off the flange mount's lock nut (6), and metal washer (5) from the flange mount (3).
- From the tub top, slip the flange mount (3) down through the appropriate hole.
Reinsert the mounting hardware from the bottom of the tub, first the
crimped metal washer (5) then the brass nut (6). Tighten the lock nut firmly.
Rubber washer
Fiber washer
Brass lock nut
Base Ring
P0388
Metal washer
Brass lock nut
Rubber washer
