Va l v e

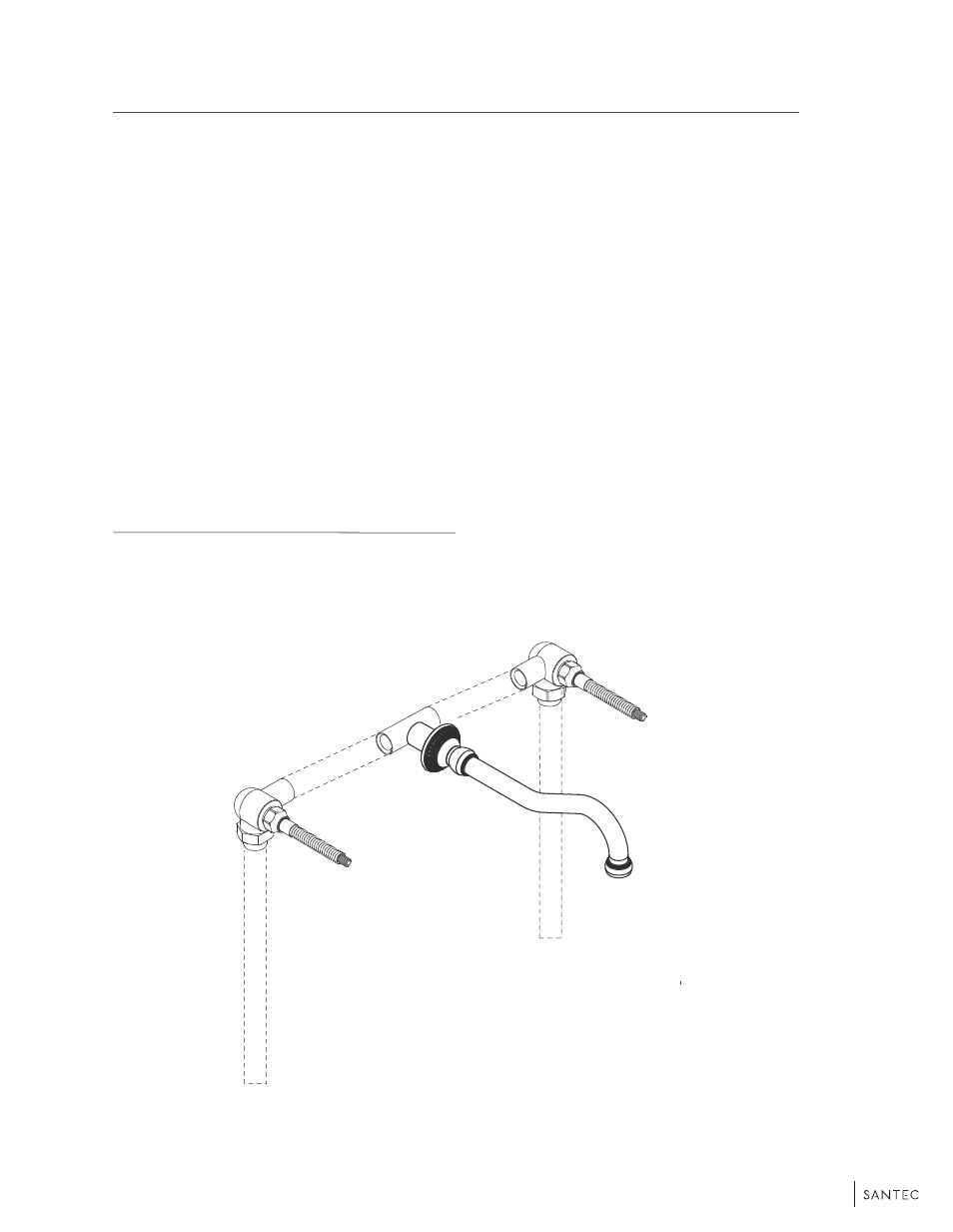

Valve Installation (2)
Using 1/2” IPS, connect corner valves to the spout base at the desired
spread.
Again, allow no more than 1-5/8” minimum and 1-3/4” maximum
diameter holes for the spout and handles.
H O T
C O L D
B A C K S E T F R O M F I N I S H WA L L
P R h a n d l e
E S h a n d l e
M T h a n d l e
P E h a n d l e
2 1 / 2 ” ~ 3 ”
2 1 / 2 ” ~ 3 ”
2 1 / 2 ” ~ 3 ”
2 1 / 2 ” ~ 3 ”
NOTE: Test for proper function before closing walls.
