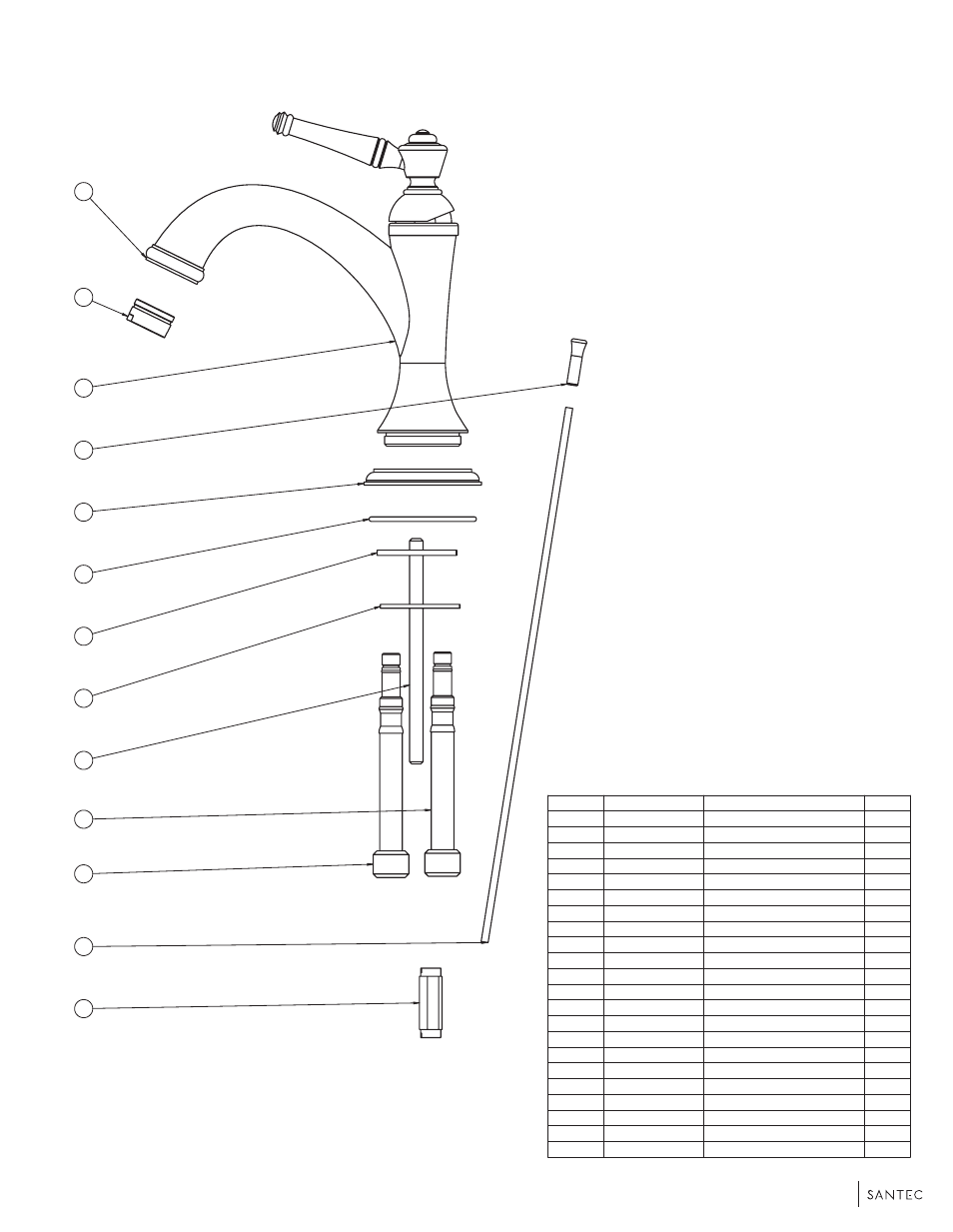

Parts Breakdown
0 2
9550KL, KR, KT _ _
14
8
1
9
15
13
7
6
2
4
3
5
12
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
PS-2KL00-U-10
Klassica Single Control Body
1
2
K1304
Threaded Shank
1
3
K1321
Flexible Hose - Cold
1
4
K1322
Flexible Hose - Hot
1
5
P0234
Lift Rod
1
6
P0803
Rubber Pad
1
7
P0804
Pad
1
8
P0952-U
Aerator Housing
1
9
PH9728
Klassica Lift Knob
1
10
PM-1068
Aerator
1
11
PM-306
Washer
1
12
PM-383
Lock Nut
1
13
PM-961
O-ring
1
14
PS-2KL00-U-3
Klassica Aerator
1
15
PH1018
Flange
1
16
P0356
25mm Control Cartridge
1
17
PH9727
Klassica Single Control Dome
1
18
PM-1182
Klassica Single Control Lock Nut
1
19
PH1022
Klassica Traditional Lever
1
20
PM-021
Set Screw
1
21
PM-1183
M4 x 0.7 for the Single Control Valve
1
22
PH9729
Klassica Traditional SC Dome
1
